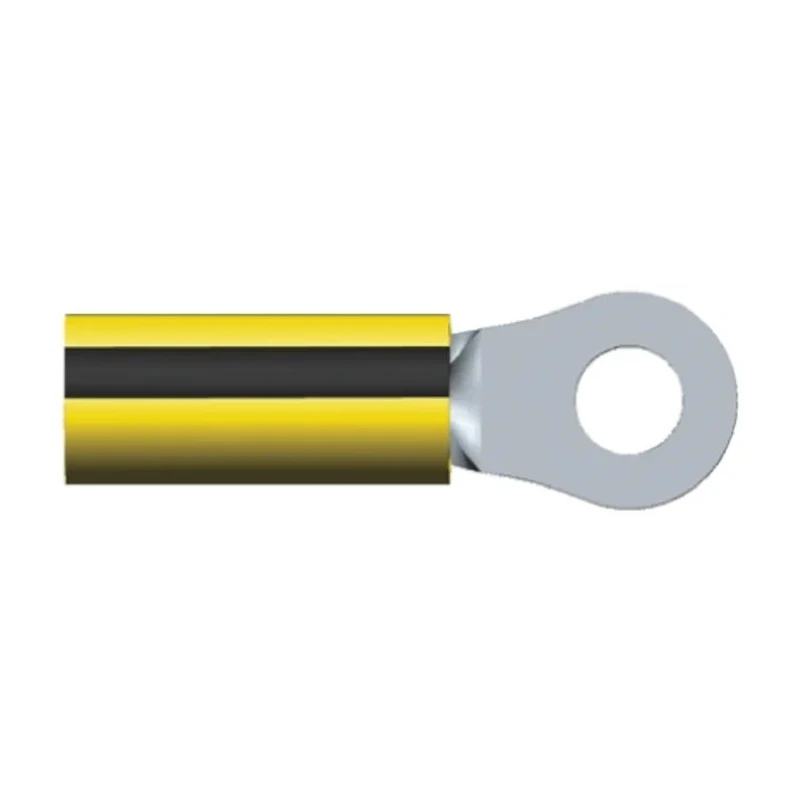

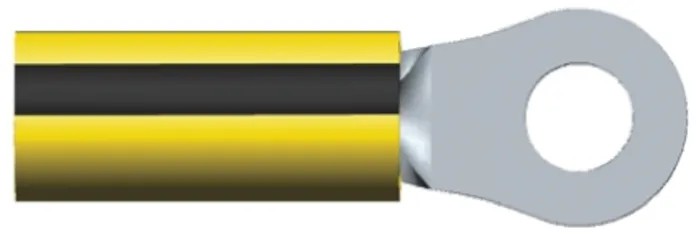

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 16 AWG to 14 AWG Wire Size Black Yellow 35106

TE Connectivity 35106 PIDG Insulated Ring Terminal features a high conductivity copper body with nylon insulation, designed for M4 stud size and wire sizes between 16 AWG and 14 AWG. This ring terminal is engineered for uniform reliability in challenging electrical circuits, making it suitable for varied industrial environments including aerospace, transportation, manufacturing, and power distribution.

The copper wire barrel includes serrations that provide maximum tensile strength after crimping, while the surrounding copper sleeve reinforces wire insulation and prevents fraying. The outer color-coded nylon sleeve not only protects wire connections but also aids in quick wire size identification and tooling, ensuring efficient assembly and maintenance.

This ring terminal is compliant with CSA LR7189, RoHS, and UL E13288 certifications, guaranteeing adherence to strict electrical and environmental standards. The product can withstand maximum operating temperatures of up to 105°C, ensuring longevity and dependability under harsh thermal conditions.

Its precision design with a funnelled wire entry point allows fast and fault-free wire insertion, making it ideal for high-speed production environments. These Ring Terminals are widely used across various sectors such as instrumentation and control, lighting, panel boxes, motors, aerospace systems, and appliances, offering versatile and secure wire connection solutions.

Constructed with high conductivity copper body for excellent electrical performance. Features a copper sleeve for enhanced wire insulation support and prevention of fraying. Serrated wire barrel ensures maximum contact area and tensile strength after crimping.

Colour-coded nylon insulation sleeve facilitates easy wire size identification and tooling. Designed with a funnelled wire entry to allow smooth and fast wire insertion. Meets CSA LR7189, RoHS, and UL E13288 safety and environmental standards.

Compatible with wire sizes 16 AWG to 14 AWG (1 to 2.6 mm²). Maximum operating temperature of 105°C for durable performance. Made in the United States ensuring consistent quality. Explore more power connector solutions from TE Connectivity at EnvMart, your trusted source for industrial electrical components.
