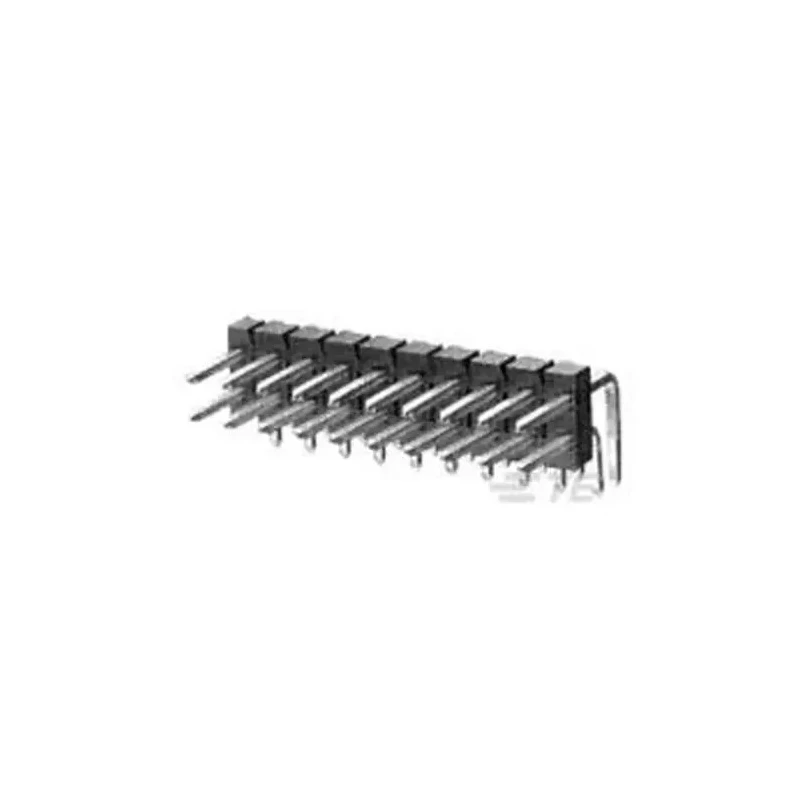

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header, 24 Contacts, 2.54 mm Pitch, 2 Row 1-826634-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Right angle orientation allows for versatile board layout applications.
- Unshrouded design providing easy access to pins.
- Constructed with brass contact material with gold plating for reliable conductivity and corrosion resistance.
- Rated for 750V voltage and 3A current supporting industrial electronic standards.
- Solder termination type ensures robust mechanical and electrical connection.
- Suitable for board-to-board and wire-to-board connector systems.
- Temperature rated from -65°C to 105°C for demanding environments.
- Features 3.2 mm tail pin length and 6.7 mm mating pin length for precise fitment.
Product Description
TE Connectivity 1-826634-2 AMPMODU MOD II Series Right Angle Through Hole Pin Header is a high-quality, unshrouded double row PCB header designed with a 2.54 mm centerline pitch and 24 contacts. This connector features brass contacts with gold plating, ensuring excellent electrical performance and corrosion resistance, suitable for harsh industrial environments.
The product supports a maximum voltage rating of 750V and current rating of 3A, making it ideal for electronic control and communication systems. Its right angle orientation facilitates compact PCB designs, while the through-hole mount type provides strong mechanical stability.
Operating temperature ranges from -65°C to 105°C, which enables reliable use in various industrial, automotive, telecommunications, medical instrument, computer, and storage equipment applications.
The modular breakaway design allows the header to be cut to the desired length, helping to optimize installation and manufacturing efficiency. Solder termination offers solid and durable connections suitable for mass production.
The AMPMODU Interconnect system, to which this product belongs, is renowned for providing economical, reliable signal standards applicable across a wide range of automation and control applications in industrial and electronic systems.
Right angle orientation for flexible PCB layouts. Unshrouded to allow easy access and soldering. Brass contacts with gold plating for durability and conductivity. Rated 750V and 3A to meet demanding electrical requirements.
Through hole mount ensures mechanical strength. Operating temperature span from -65°C to 105°C. Tail pin length 3.2 mm and mating pin length 6.7 mm for precise fit. Breakaway modular header allows custom lengths. Applicable to automotive, industrial, telecom, medical, and computing equipment.
Part of the AMPMODU Interconnect system designed for automation control.
Choose TE Connectivity AMPMODU MOD II headers for dependable PCB connections and efficient assembly workflows. Browse more high-quality connectors and electronic components in the EnvMart catalog.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header is rated for a maximum voltage of 750V and a current of 3A, suitable for industrial electronic standards.
The connector features a 2.54 mm pitch and has 24 contacts, designed for efficient PCB connections.
It uses a solder termination type, ensuring a robust mechanical and electrical connection.
The operating temperature range for this model is from -65°C to 105°C, making it suitable for various demanding environments.
This pin header has a right angle orientation, allowing for versatile board layout applications.
The connector is constructed with brass contact material and features gold plating for reliable conductivity and corrosion resistance.
The tail pin length is 3.2 mm, while the mating pin length is 6.7 mm, providing a precise fitment.
This model utilizes a through hole mount type, ensuring strong mechanical stability on the PCB.
It is suitable for board-to-board and wire-to-board connector systems, enhancing its versatility in applications.
This model is unshrouded, providing easy access to the pins for soldering and connections.
This pin header is part of the AMPMODU MOD II series, known for its economical and reliable signal standards.
The country of origin for this pin header is India.
