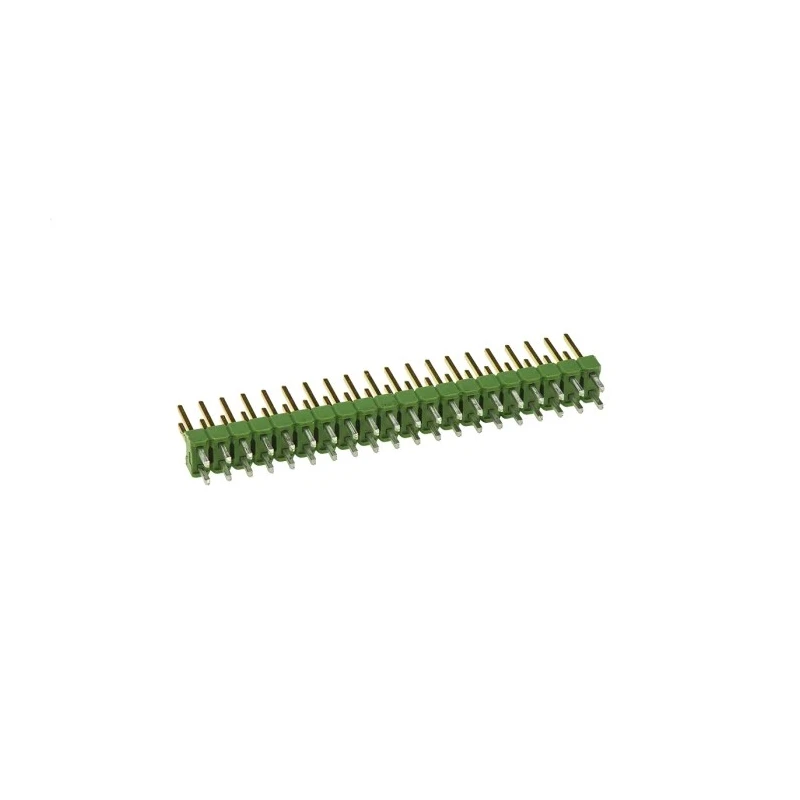

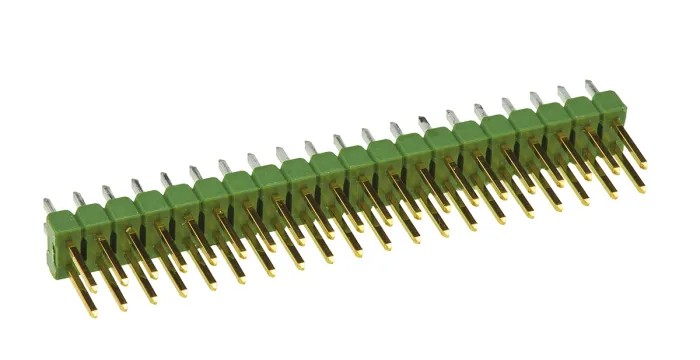

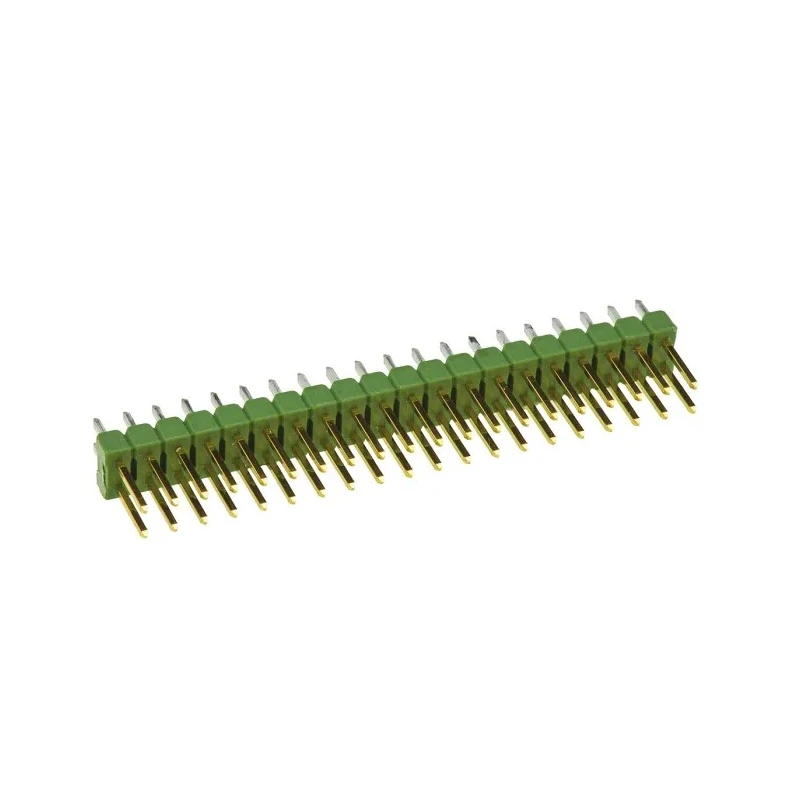

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 40 Contacts, 2.54 mm Pitch, 2 Row 2-826632-0

TE Connectivity 2-826632-0 AMPMODU MOD II Series Straight Through Hole Pin Header is a versatile and reliable PCB connector designed for industrial and electronic applications. This double row pin header provides 40 male contacts spaced at a 2.54 mm pitch, ideal for board-to-board and wire-to-board interconnect systems.

The connector features an unshrouded design with a straight orientation. Its thermoplastic housing is engineered for durability and resistance to harsh conditions. Brass contacts plated with gold ensure superior electrical performance and corrosion protection.

Rated for 3 A current and 750 V voltage, this pin header operates safely within a temperature range of -65°C to 105°C, making it suitable for a variety of environments including automotive controls, telecommunications, industrial equipment, medical instruments, and computing systems.

The solder termination type and through hole mounting facilitate secure installation and reliable electrical connections on printed circuit boards. The pin headers are breakaway style, allowing users to customize the length according to application requirements, enhancing installation efficiency and flexibility.

This 2-row AMPMODU MOD II series pin header is part of a modular interconnect system designed for low-profile, compact electronic assemblies requiring robust signal connections. This pin header is unshrouded and has a straight orientation for easy through-hole installation.

The housing is made of durable thermoplastic material ensuring long-term reliability. Contacts are brass with gold plating to provide excellent conductivity and corrosion resistance. It operates within a voltage rating of 750 V and a current rating of 3 A.

Designed to withstand operating temperatures from -65°C up to 105°C. Tail pin length is 3.2 mm with a mating pin length of 6.7 mm for secure connections. The row pitch and contact pitch are both 2.54 mm, standard for many PCB applications.

Termination is via soldering, suitable for reliable and stable board mount connections. These headers can be broken down to any required size to fit specific design needs, saving time and labor.

These pin headers are well-suited for a broad range of industrial and commercial electronic assemblies requiring reliable and compact PCB connectors. Applications include industrial controls, telecommunications, automotive electronics, test and measurement equipment, and medical devices.
