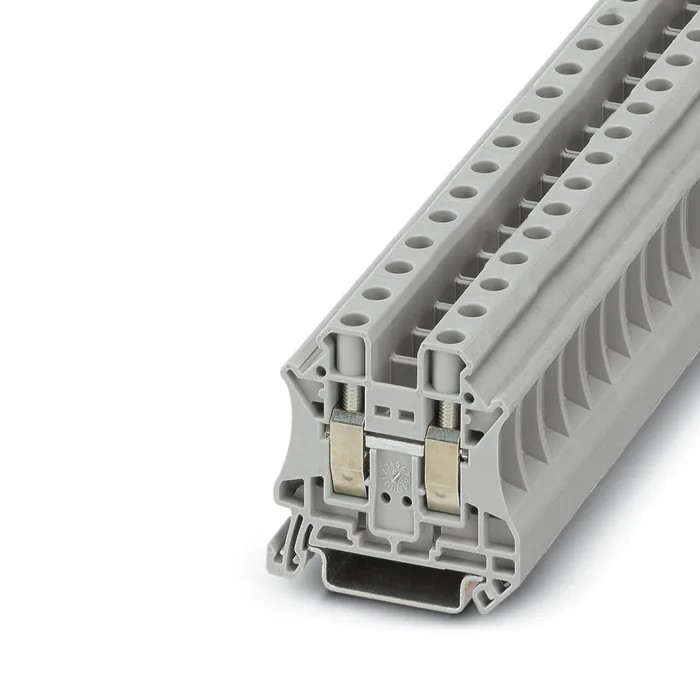

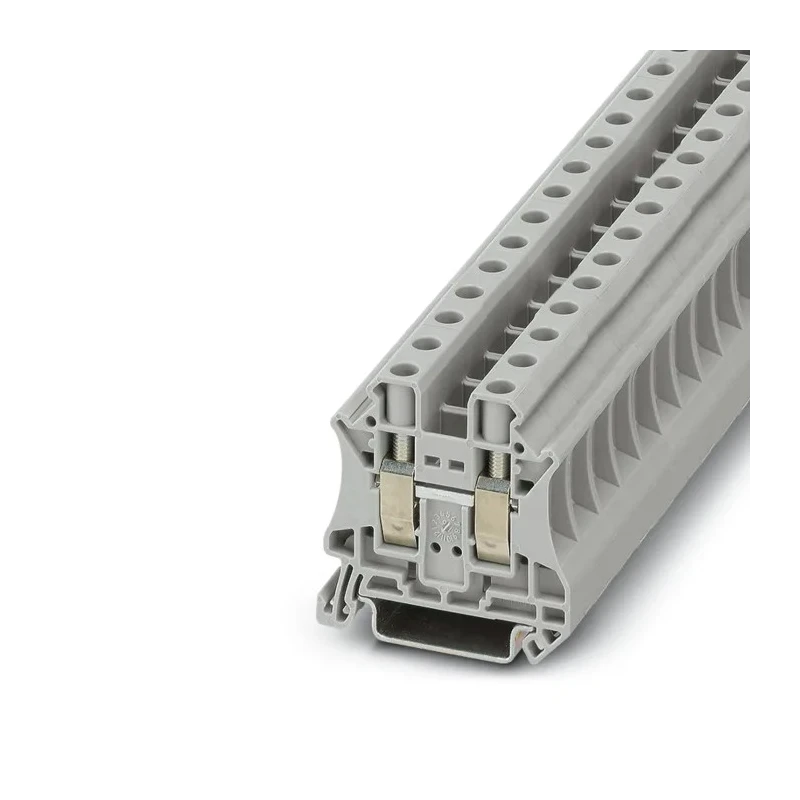

Phoenix Contact UT 10 SL Series Grey Feed Through Terminal Block, 0.5 mm² to 16 mm², 1-Level, Screw Termination 3064247
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1kV |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3064247 |
| Series | UT 10 SL |
| Termination Type | Screw |
| Number of Levels | 1 |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 6AWG |
| Cable CSA | 0.5, 16mm² |
| Terminal Block Current | 57A |
| Feed-through terminal block, with six-lobe screw, nom. voltage | 1000 V, nominal current: 57 A, connection method: Screw connection, number of connections: 2, cross section: 0.5 mm² - 16 mm², AWG: 20 - 6, width: 10.2 mm, height: 46.9 mm, color: gray, mounting type: NS 35/7,5, NS 35/15 |
Key Features
- The terminal block accommodates wire sizes from 0.5 mm² up to 16 mm², suitable for AWG 20 to AWG 6 wires.
- It features a grey color and is part of the UT 10 SL series, ideal for DIN rail mounting on NS 35/7.5 and NS 35/15 rails.
- Connection is enabled via screw termination with a six-lobe screw design for secure wiring.
- The product allows connection of solid and stranded conductors without ferrules due to its large wiring space.
- The cable entry funnel supports the use of conductors with ferrules and plastic collars within the nominal cross section.
- It is manufactured in Germany and designed to meet industrial electrical connection requirements.
- This terminal block is constructed to facilitate reliable feed-through connections in control panels and industrial automation systems.
- It is not certified for hazardous area applications and does not carry specific approvals or standards.
Product Description
Phoenix Contact 3064247 UT 10 SL Feed Through Terminal Block is a grey, 1-level DIN Rail Terminal Block designed for electrical applications requiring secure and reliable feed-through connections. It supports a wide range of wire cross sections from 0.5 mm² to 16 mm² and can accommodate wire gauges from AWG 20 to AWG 6. With a nominal voltage rating of 1000 V and a current rating of 57 A, this terminal block suits various industrial, commercial, and manufacturing wiring needs.
The terminal block employs a screw termination method with a six-lobe screw for enhanced connection stability. Its large wiring space allows for the direct connection of both solid and stranded conductors without the need for ferrules, streamlining installation and maintenance. Additionally, the cable entry funnel design permits the use of conductors with ferrules and plastic collars within the specified cross section, improving versatility.
Designed for mounting on NS 35/7.5 and NS 35/15 DIN rails, the UT 10 SL series terminal block is widely used in control cabinets, automation systems, and power distribution setups. Manufactured in Germany, it ensures high build quality and consistent performance in demanding environments.
This product is not approved for hazardous area use and does not carry specific industry certifications but aligns with general industrial requirements. It is ideal for applications in industrial automation, electrical panels, HVAC systems, and manufacturing equipment installations.
The terminal block supports wire sizes from 0.5 mm² to 16 mm², covering a broad range of wiring needs. Rated for 57 A current and 1000 V voltage, providing reliability in power and signal connections. Screw termination with six-lobe screw ensures secure and stable electrical contacts.
Large wiring space accommodates solid and stranded conductors without ferrules. Cable entry funnel enables use of conductors with ferrules and plastic collars. Mounts easily on standard NS 35/7.5 and NS 35/15 DIN rails. Color coded grey for easy identification in electrical panels.
Explore more quality electrical connection components like this at EnvMart for your industrial, manufacturing, and commercial electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a nominal voltage rating of 1000 V and a current rating of 57 A.
It supports wire sizes from 0.5 mm² to 16 mm², which corresponds to AWG 20 to AWG 6.
It employs a screw termination method with a six-lobe screw design for secure connections.
This model is designed for mounting on NS 35/7.5 and NS 35/15 DIN rails.
The terminal block has a width of 10.2 mm and a height of 46.9 mm.
No, this terminal block is not certified for hazardous area applications and does not carry specific approvals or standards.
It is manufactured in Germany.
This terminal block is colored grey for easy identification in electrical panels.
It is suitable for applications in control cabinets, automation systems, electrical panels, HVAC systems, and manufacturing equipment installations.
This terminal block has a single level design.
