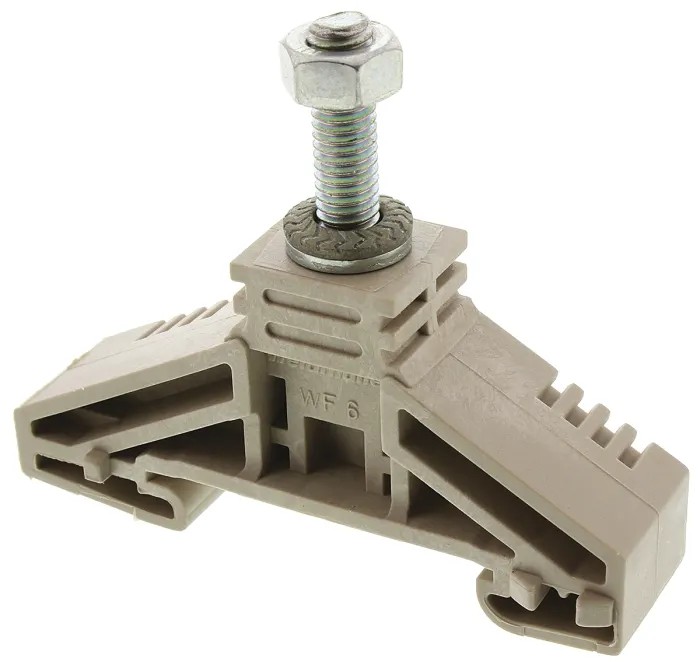

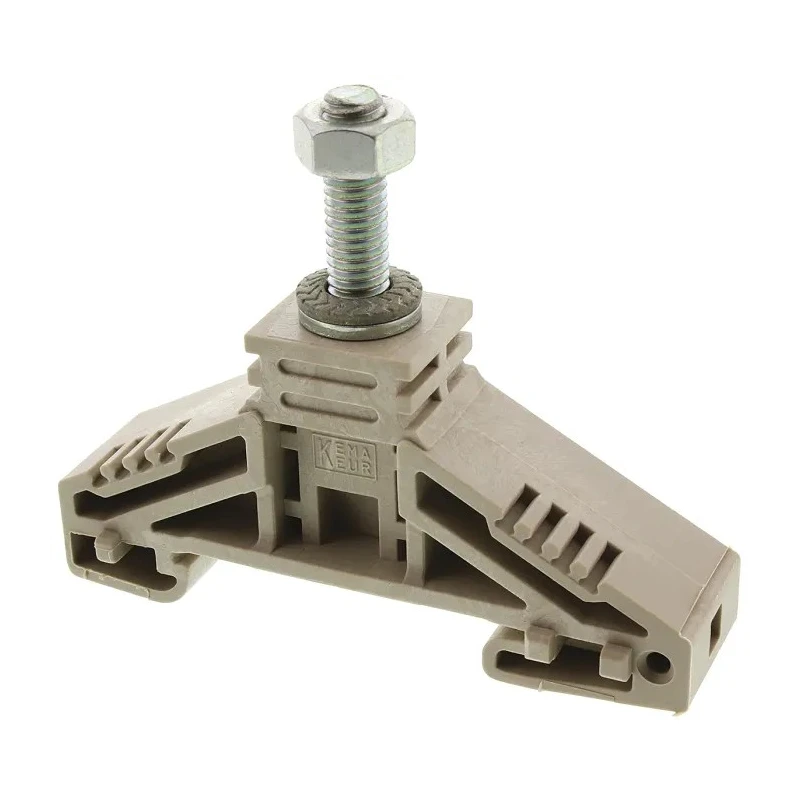

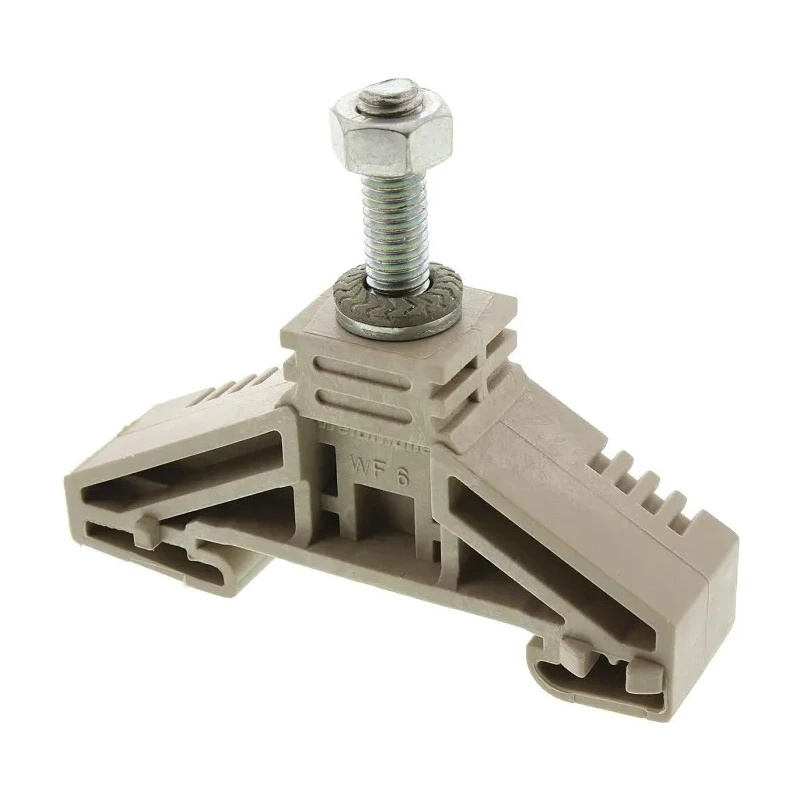

Weidmüller WF Series Stud Terminal Dark Beige, 35mm² Cable CSA, 1-Level, Bolt Termination, 125A Current, 1kV 1780850000

Weidmüller 1780850000 WF Series Stud Terminal is a high-performance electrical connector designed for robust power transmission applications. It features a dark beige color and a bolt termination system that guarantees secure and reliable connections under demanding industrial conditions. Rated for a current of 125A and a voltage of 1kV, this single-level terminal supports cable cross-sectional areas up to 35 mm² with wire sizes from 14 AWG to 2 AWG, making it suitable for a wide range of electrical installations.

The terminal block is engineered to operate effectively in extreme temperature conditions, ranging from -50°C to +120°C, ensuring consistent performance in harsh environments. Its snap-on design allows for swift and effortless mounting on the widely-used TS 35 rail system, making it compatible with various mechanical setups.

Compliant with CE and RoHS standards, the product meets both safety and environmental regulations, enhancing reliability while minimizing environmental impact. This stud terminal is ideal for applications in automation systems, industrial electrical distribution, mechanical installations, and other high-temperature operational environments.

The bolt termination mechanism supports threaded pins from M5 to M16, providing versatile installation options. The required tightening torque ensures optimal electrical contact and durability.

Bolt termination ensures secure and robust electrical connections. Supports cable cross-sectional areas up to 35 mm² for high current applications. Operates efficiently within a broad temperature range from -50°C to +120°C.

Designed for 1-level installation allowing space-efficient setups. Compatible with wire sizes ranging from 14 AWG to 2 AWG for versatile cabling. Meets CE and RoHS standards ensuring safety and environmental compliance. Snap-on mounting on standard TS 35 rails facilitates easy installation.

Suitable for industrial automation and electrical distribution environments. Accommodates threaded pins from M5 to M16 for flexible connection options. Requires tightening torque between 3 Nm and 6 Nm to maintain optimal contact.

This Weidmüller WF Series Stud Terminal is manufactured in Romania and is a new product ensuring quality and performance. It suits users requiring dependable terminal blocks for demanding industrial, electrical, and automation applications. Explore more products within the DIN Rail Terminal Blocks category on EnvMart for comprehensive solutions.
