Legrand 371 Series 1-Level Blue DIN Rail Terminal Block Screw Termination 800V 36A 4mm² 0 371 01

Free Delivery in India | Lowest Global Shipping Charges

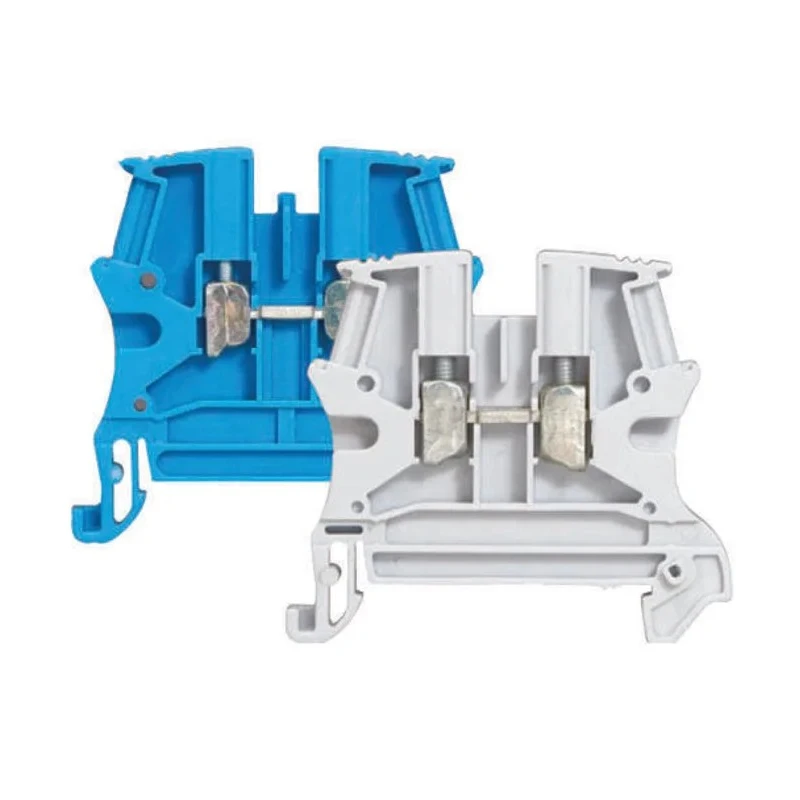

Legrand 371 Series 1-Level Blue DIN Rail Terminal Block Screw Termination 800V 36A 4mm² 0 371 01

Name: Legrand 371 Series 1-Level Blue DIN Rail Terminal Block Screw Termination 800V 36A 4mm² 0 371 01
Brand: Legrand
SKU: 324098
Price: 20.22 USD
Availability: InStock



Category DIN Rail Terminal Block Brand Legrand Condition New

Specifications

Country of Origin	France
Voltage	800V
Brand	Legrand
Colour	Blue
Model	0 371 01
Series	371
Termination Type	Screw
Maximum Operating Temperature	55°C
Number of Levels	1
Minimum Operating Temperature	-30°C
Pitch	6mm
Minimum Wire Size AWG	10AWG
Cable CSA	4mm²
Terminal Block Current	36A

Key Features

The terminal block is blue in color suitable for neutral conductor applications.
It supports cable sizes up to 4mm² with a pitch of 6mm for compact mounting.
Constructed as a feed-through type with one input and one output connection.
Operates efficiently in temperatures ranging from -30°C to 55°C.
Termination is secured via durable screw connections ensuring strong conductor retention.
Meets multiple international standards including UL, CSA, IEC specifications for quality assurance.
Designed and manufactured in France ensuring high build quality and reliability.

Product Description

Legrand 0 371 01 is a high-quality 371 Series DIN Rail Terminal Block designed for industrial and electrical applications requiring safe power distribution and wiring management. Featuring a blue color to denote neutral conductor usage, this 1-level terminal block supports conductors with a cable cross-section of up to 4mm² and an operating voltage of 800 volts. Its screw termination type facilitates easy and secure connections for solid or flexible conductors.

The compact 6mm pitch dimension enables efficient use of DIN rail space, making it ideal for control panels, distribution boards, and industrial equipment wiring. The terminal block can sustain currents up to 36 amps and is rated for continuous operation within temperature ranges from -30°C to +55°C, providing robustness in diverse operating environments.

Manufactured in France by Legrand, it complies with a wide range of international standards including UL Recognised, CSA C22.2 No 158, and various IEC standards such as IEC 60364-5-52 and IEC EN 60947-1. This ensures product safety, reliability, and compliance with global electrical regulations.

The feed-through design offers a single input and output point, facilitating streamlined wiring and electrical conduction paths. This terminal block is widely used in industrial automation, electrical distribution systems, manufacturing plants, HVAC installations, and commercial electrical installations.

The terminal block is blue in color suitable for neutral conductor applications. It supports cable sizes up to 4mm² with a pitch of 6mm for compact mounting. Constructed as a feed-through type with one input and one output connection.

Operates efficiently in temperatures ranging from -30°C to 55°C. Termination is secured via durable screw connections ensuring strong conductor retention. Meets multiple international standards including UL, CSA, IEC specifications for quality assurance.

Designed and manufactured in France ensuring high build quality and reliability.

This Legrand DIN Rail Terminal Block offers excellent electrical performance for terminal block wiring in demanding industrial and commercial applications. For more options and compatible accessories, browse our extensive selection of DIN Rail Terminal Blocks at EnvMart.
