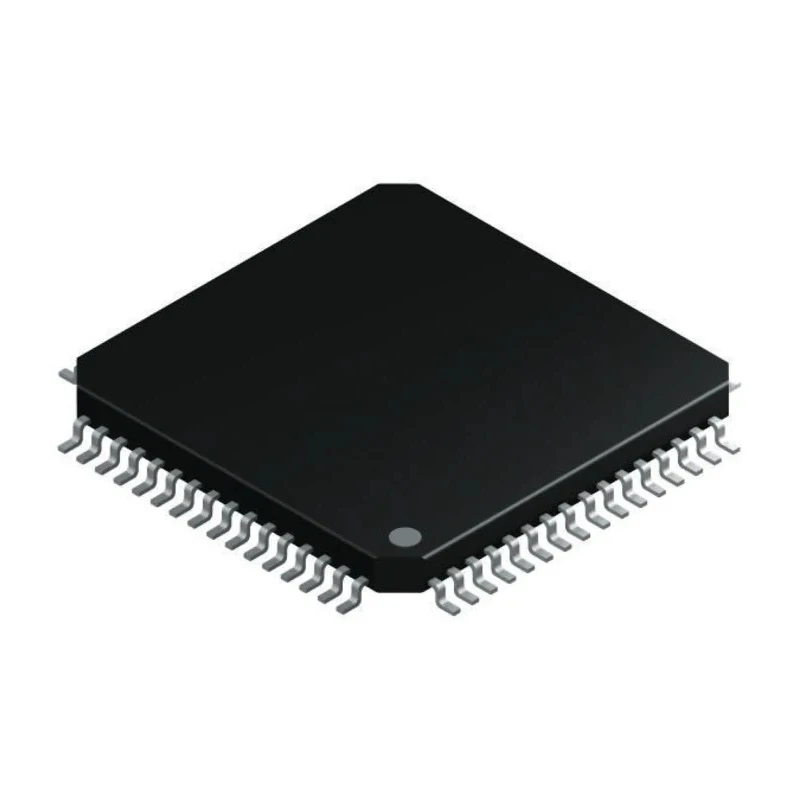

Name: Microchip 16-bit Digital Signal Processor 40 MIPS 128kB FLASH 64-Pin TQFP dsPIC33F
Brand: Microchip
SKU: 345685
Price: 10.38 USD
Availability: InStock



Category Digital Signal Processor Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.05mm
Length	10mm
Model	dsPIC33F
Width	10mm
Mount Type	Surface
Series	dsPIC33F
Maximum Operating Temperature	85°C
Package Type	TQFP
Minimum Operating Temperature	-40°C
Ram size	8kB
ADC Resolution	19bit
Timer Resolution	16bit
Pin Count	64
Automotive Standard	AEC-Q100
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	3V
Program Memory Size	128kB
Number of Timers	9
Instruction Set Architecture	RISC
Program Memory Type	FLASH
Number of ADCs	1
Device Million Instructions per Second	40MIPS
Number of PWM Units	9
PWM Resolution	16bit
ADC Channels	16
Number of PWM Channels	8

Key Features

Features a 16-bit data bus with 8kB RAM and RISC instruction set architecture.
Operating voltage ranges from 3V to 3.6V suitable for embedded applications.
Supports advanced peripherals including 1 ADC, 16 ADC channels with 19-bit resolution.
Includes 8 PWM channels, 9 PWM units, and 9 timers with 16-bit resolution for precise control.
Package size is 10mm length, 10mm width, and 1.05mm height for compact PCB integration.
Certified Automotive Standard AEC-Q100 ensuring reliability in automotive environments.
Ideal for high-speed digital filter algorithms, precision motor control, digital audio, and power supply applications.
Surface mount type TQFP package supports modern high-density circuit designs.

Product Description

The Microchip dsPIC33FJ128MC506A-I/PT is a powerful 16-bit Digital Signal Processor (DSP) delivering 40 MIPS performance, designed specifically for embedded digital signal control applications. Featuring 128kB of FLASH program memory and 8kB of RAM, it supports the RISC instruction set architecture to efficiently execute complex algorithms such as digital filters, speech processing, and precise control loops.

This DSP integrates a comprehensive set of peripherals including a high-resolution 19-bit ADC with 16 channels, 8 PWM channels, 9 PWM units, and 9 timers with 16-bit resolution, enabling advanced motor control and power management implementations. The device operates within a supply voltage range of 3V to 3.6V, suitable for low-power embedded systems.

Housed in a compact 64-pin TQFP package measuring 10mm by 10mm by 1.05mm, the processor ensures efficient PCB space utilization for industrial, automotive, and commercial applications. It complies with the automotive standard AEC-Q100, making it reliable for use in precision motor control, digital audio processing, power supply regulation, and other high-performance industrial tasks.

The dsPIC33F series bridges the gap between conventional microcontrollers and digital signal processors, combining the simplicity of MCU design with the power and performance of DSP algorithms. This makes it ideal for applications in motor drives, SMPS control, audio processing, and embedded system development.

Features a 16-bit data bus and 128kB FLASH memory for robust performance. Supports a broad operating temperature range from -40°C to 85°C to ensure durability in diverse environments. Offers 8 PWM channels and 9 timers with precise 16-bit resolution for advanced timing control.

Includes 1 ADC with 16 channels at 19-bit resolution for accurate signal sampling. Surface mounted TQFP package supports compact and efficient board design. Compliant with automotive-grade AEC-Q100 standard for high reliability.

Suited for DSP applications in automotive, industrial automation, and power electronics.

Choose Microchip dsPIC33FJ128MC506A-I/PT for reliable, high-performance embedded DSP solutions. Browse the Electronics & Electricals section for more advanced Digital Signal Processors and related products.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model delivers a performance of 40 MIPS (Million Instructions Per Second), making it suitable for high-speed digital signal processing tasks.

The operating voltage for the dsPIC33F ranges from 3V to 3.6V, which is suitable for low-power embedded applications.

It includes 16 ADC channels, each with a resolution of 19 bits, allowing for accurate signal sampling.

This model is housed in a 64-pin TQFP package with dimensions of 10mm in length, 10mm in width, and 1.05mm in height.

It is designed for applications such as precision motor control, digital audio processing, and power supply regulation, particularly in automotive and industrial environments.

The maximum operating temperature for this model is 85°C, ensuring it can function in a variety of environments.

This unit supports 8 PWM channels, which are essential for precise control in various applications.

It features 8kB of RAM, which is utilized for executing complex algorithms efficiently.

The processor includes 128kB of FLASH program memory, allowing for robust performance in embedded applications.

This model utilizes a RISC (Reduced Instruction Set Computing) instruction set architecture, which enhances its processing efficiency.

It complies with the AEC-Q100 automotive standard, ensuring reliability for automotive applications.

This digital signal processor uses a surface mount type, specifically in a TQFP package, which supports modern high-density circuit designs.
