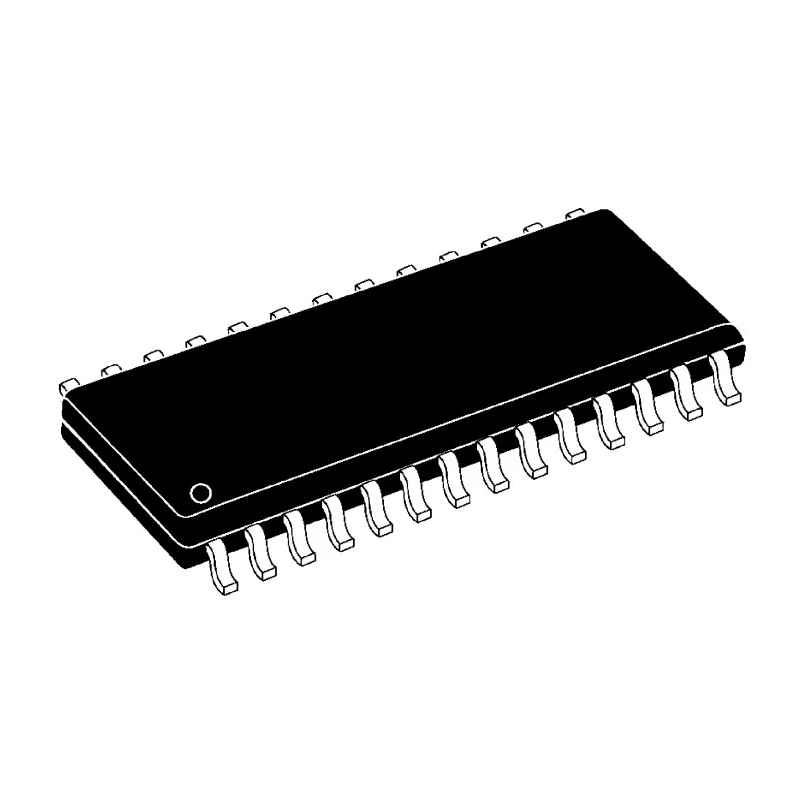

Microchip 16 bit Digital Signal Processor 40 MHz 64kB FLASH 28-Pin SOIC W dsPIC33FJ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.31mm |
| Length | 17.87mm |
| Model | dsPIC33FJ |
| Width | 7.49mm |
| Mount Type | Surface |
| Core | dsPIC33F |
| Series | dsPIC33FJ |
| Maximum Operating Temperature | 85°C |
| Number Of Cores | 1 |
| Package Type | SOIC W |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| ADC Resolution | 12bit |
| Timer Resolution | 32bit |
| Standards/Approvals | VDE, IEC 60730 |
| Pin Count | 28 |
| Automotive Standard | AEC-Q100 Rev G Grade 0 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 40MHz |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 40MIPS |
| Number of PWM Units | 4 |
| PWM Resolution | 25ns |
| ADC Channels | 9 |
| Number of PWM Channels | 8 |
| Numeric and Arithmetic Format | 16 x 16 |
Key Features
- Microchip dsPIC33FJ provides 40 million instructions per second (40 MIPS) performance.
- It features a 16 bit data bus width with RISC instruction set architecture.
- Includes 16 kB RAM and 1 ADC with 12 bit resolution and 9 ADC channels.
- Equipped with 8 PWM channels, 4 PWM units, and 5 timers for versatile control applications.
- Operates at supply voltage range of 3.3V to 3.6V and temperature range from -40°C to 85°C.
- Complies with standards including VDE, IEC 60730, and automotive AEC-Q100 Rev G Grade 0.
- Mount type is surface mount in SOIC W package type for PCB integration.
Product Description
Microchip dsPIC33FJ 16 bit Digital Signal Processor model dsPIC33FJ operates at a maximum clock frequency of 40 MHz with a program memory size of 64kB FLASH. This digital signal processor is designed for high performance digital filter algorithms, precise digital control loops, and digital audio and speech processing, combining DSP power with MCU simplicity.
Featuring a 16 bit data bus width and RISC architecture, it supports 40 million instructions per second (MIPS) achieving efficient processing speeds required in motor control and power supply applications. The integrated 16kB RAM and one 12 bit ADC with 9 ADC channels enable effective real-time data acquisition and processing. Built-in peripherals include 8 PWM channels across 4 PWM units and 5 timers, facilitating precise timing and output control.
The device operates over a voltage range of 3.3V to 3.6V and can withstand temperatures from -40°C to 85°C, making it suitable for automotive and industrial environments. Compliance with VDE, IEC 60730, and AEC-Q100 Rev G Grade 0 automotive standards ensures reliability and quality.
The 28-pin SOIC W surface mount package offers compact dimensions of 17.87 mm length, 7.49 mm width, and 2.31 mm height, optimizing PCB space. The dsPIC33F series supports specialized motor control peripherals for high-precision applications and SMPS peripherals for advanced digital power supplies featuring high-speed PWM, fast ADC, and analog comparators.
40 MHz maximum clock frequency for high-speed processing. 16 bit data bus width with RISC instruction set architecture. 64kB FLASH program memory and 16kB RAM for ample program and data storage. Multiple ADC and PWM channels enable complex motor and power control.
Wide operating temperature and voltage range for industrial use. Complies with automotive and industry standards for quality assurance.
This Digital Signal Processor is ideal for industrial, automotive, power electronics, and embedded system applications requiring precise digital control, signal processing, and motor management. Explore Microchip products and related components on EnvMart.
