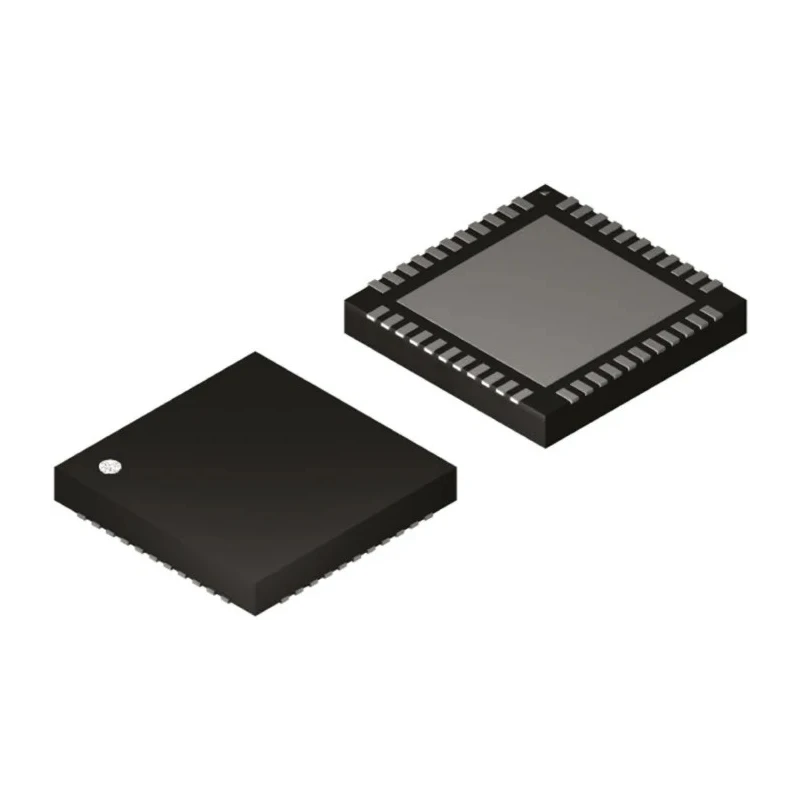

Microchip dsPIC33FJ 16 bit Digital Signal Processor 40 MHz 64kB FLASH 44-Pin TQFP dsPIC33FJ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 10mm |
| Model | dsPIC33FJ |
| Width | 10mm |
| Mount Type | Surface |
| Core | dsPIC33F |
| Series | dsPIC33FJ |
| Maximum Operating Temperature | 85°C |
| Number Of Cores | 1 |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| ADC Resolution | 12bit |
| Standards/Approvals | AEC-Q100 REVG, IEC 60730, VDE |
| Pin Count | 44 |
| Automotive Standard | AEC-Q100 Rev G Grade 0 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 40MHz |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 40MIPS |
| Number of PWM Units | 1 |
| ADC Channels | 13 |
| Number of PWM Channels | 4 |
| Numeric and Arithmetic Format | 16 x 16 |
Key Features
- Operates at a maximum frequency of 40 MHz with 40 MIPS processing capability.
- Features 16-bit data bus width and RISC-based dsPIC33F core architecture.
- Includes 8kB RAM and 64kB program FLASH memory.
- Supports 1 ADC with 13 ADC channels and 12-bit resolution.
- Equipped with 4 PWM channels and a total of 5 timers.
- Designed for surface mount with a 44-pin TQFP package format.
- Operates between -40°C and 85°C, meeting automotive AEC-Q100 Rev G Grade 0 standards.
- Compact dimensions of 10mm length, 10mm width, and 1mm height.
Product Description
Microchip dsPIC33FJ 16 bit Digital Signal Processor model dsPIC33FJ operates at a maximum clock frequency of 40 MHz, delivering 40 million instructions per second (MIPS) with a 16-bit data bus width and 8kB RAM. It features 64kB of FLASH program memory and utilizes a RISC instruction set architecture with a dsPIC33F core. This device supports 1 ADC with 13 channels and 12-bit resolution, provides 4 PWM channels, and includes 5 timers, making it highly suitable for precision digital control applications.
Housed in a 44-pin TQFP surface mount package with compact 10x10x1 mm dimensions, this digital signal processor operates reliably within a temperature range of -40°C to 85°C. It complies with AEC-Q100 Rev G Grade 0 automotive standards, IEC 60730, and VDE certifications, ensuring robustness for automotive and industrial control use cases. The device is powered by a supply voltage range of 3.3V to 3.6V.
The Microchip dsPIC33FJ digital signal controller architecture combines the performance of a DSP with MCU simplicity, facilitating efficient execution of digital filters, high-speed precision control loops, digital audio, and speech processing algorithms. Its integrated motor control and SMPS peripherals provide enhanced capabilities for motor control and digital power supply applications.
This digital signal processor is ideal for industrial, automotive, automation, power electronics, and embedded control system applications where high precision and processing power are required.
Operates at 40 MHz clock frequency with 40 MIPS throughput. 16-bit data bus using RISC-based dsPIC33F core architecture. 64kB FLASH memory combined with 8kB RAM memory. Supports 12-bit ADC with 13 channels and 4 PWM channels for versatile control.
Robust temperature range and compliant with automotive-grade AEC-Q100 standards. Compact 44-pin TQFP surface mount package for easy PCB integration. Low voltage operation between 3.3V and 3.6V ensures energy efficiency. Browse the extensive range of semiconductor and Digital Signal Processors at EnvMart to find components suited to your precision control and embedded application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dsPIC33FJ operates at a maximum clock frequency of 40 MHz.
It features 64kB of FLASH program memory.
This model operates reliably within a temperature range of -40°C to 85°C.
It supports 1 ADC with 13 channels and 12-bit resolution.
It is housed in a 44-pin TQFP surface mount package.
The device operates with a supply voltage range of 3.3V to 3.6V.
This model includes 4 PWM channels.
It complies with AEC-Q100 Rev G Grade 0, IEC 60730, and VDE standards.
The device includes 8kB of RAM.
It is equipped with a total of 5 timers.
It utilizes a RISC instruction set architecture with a dsPIC33F core.
The height of this model is 1mm.
