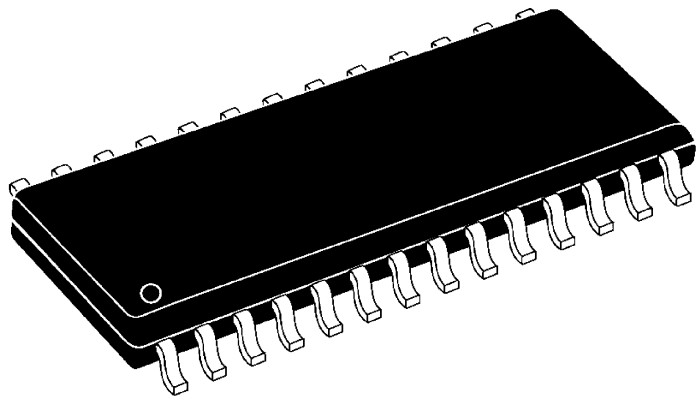

Microchip dsPIC33FJ 16-bit Digital Signal Processor 40 MHz 128 kB FLASH 28-Pin SOIC W
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.05mm |
| Length | 17.9mm |
| Model | dsPIC33FJ |
| Width | 7.5mm |
| Mount Type | Surface |
| Core | dsPIC33F |
| Series | dsPIC33FJ |
| Maximum Operating Temperature | 85°C |
| Number Of Cores | 1 |
| Package Type | SOIC W |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| ADC Resolution | 12bit |
| Timer Resolution | 32bit |
| Standards/Approvals | VDE, IEC 60730, AEC-Q100 REVG |
| Pin Count | 28 |
| Automotive Standard | AEC-Q100 Rev G Grade 0 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 40MHz |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 40MIPS |
| Number of PWM Units | 1 |
| Number of PWM Channels | 4 |
Key Features
- Operates at a maximum clock frequency of 40 MHz with a device throughput of 40 MIPS.
- Features 16-bit data bus width and 128 kB of FLASH program memory.
- Includes 16 kB RAM and uses RISC instruction set architecture.
- Supports 1 ADC with 12-bit resolution and 4 PWM channels for control applications.
- Designed for surface mount with compact dimensions of 17.9 mm length, 7.5 mm width, and 2.05 mm height.
- Operational voltage range from 3.3 V minimum to 3.6 V maximum supply voltage.
- Functions reliably under operating temperatures from -40°C to 85°C, compliant to automotive AEC-Q100 Rev G Grade 0 standard.
- Includes 5 timers with 32-bit resolution, suitable for precision timing in embedded systems.
Product Description
Microchip dsPIC33FJ dsPIC33FJ128GP802-I/SO is a high-performance 16-bit Digital Signal Processor operating at up to 40 MHz, integrating 128 kB FLASH memory and 16 kB RAM in a compact 28-Pin SOIC W package. This device is engineered for digital filtering, precision digital control loops, and high-speed audio and speech processing applications.
Featuring a RISC instruction set architecture, it offers 40 MIPS performance, making it suitable for embedded systems demanding efficient computation. The processor supports a 16-bit data bus width and includes peripherals such as a 12-bit ADC and four PWM channels ideal for motor control and power supply designs.
Operating voltage range from 3.3 V to 3.6 V ensures compatibility with a variety of power systems, while the robust operating temperature range (-40°C to 85°C) meets automotive Grade 0 standards, making it reliable for automotive and industrial environments.
The compact surface mount SOIC W package with a length of 17.9 mm, width of 7.5 mm, and height of 2.05 mm facilitates dense PCB layouts and advanced system integration. This processor includes up to five 32-bit timers and complies with industry standards including VDE, IEC 60730, and AEC-Q100 Rev G, ensuring durability and quality.
Its advanced digital signal controller capabilities enable precision motor control and digital power supply management through high-resolution PWM, fast ADC, and analog comparators.
Operates at 40 MHz clock frequency delivering 40 MIPS performance. 128 kB FLASH and 16 kB RAM memory supporting complex algorithms. 12-bit ADC with 1 channel and 4 PWM channels for signal control. Compact 28-Pin SOIC W package for surface mount applications.
Industry-compliant with automotive Grade 0 and multiple standards certifications. Robust operating temperature range from -40°C to 85°C.
This microcontroller is a preferred choice for digital signal processing in embedded, automotive, industrial, and control system applications. Explore EnvMart’s Microchip collection for advanced digital signal processing solutions and compatible components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this digital signal processor is 40 MHz.
It has a program memory size of 128 kB FLASH.
This model includes 16 kB of RAM.
It operates reliably within a temperature range of -40°C to 85°C.
This digital signal processor supports four PWM channels.
The processor includes a 12-bit ADC with one channel.
The dimensions of the SOIC W package are 17.9 mm in length, 7.5 mm in width, and 2.05 mm in height.
The operational voltage range is from 3.3 V to 3.6 V.
It includes five timers with 32-bit resolution.
It complies with VDE, IEC 60730, and AEC-Q100 Rev G Grade 0 standards.
This model uses a RISC instruction set architecture.
The device throughput is 40 MIPS.
