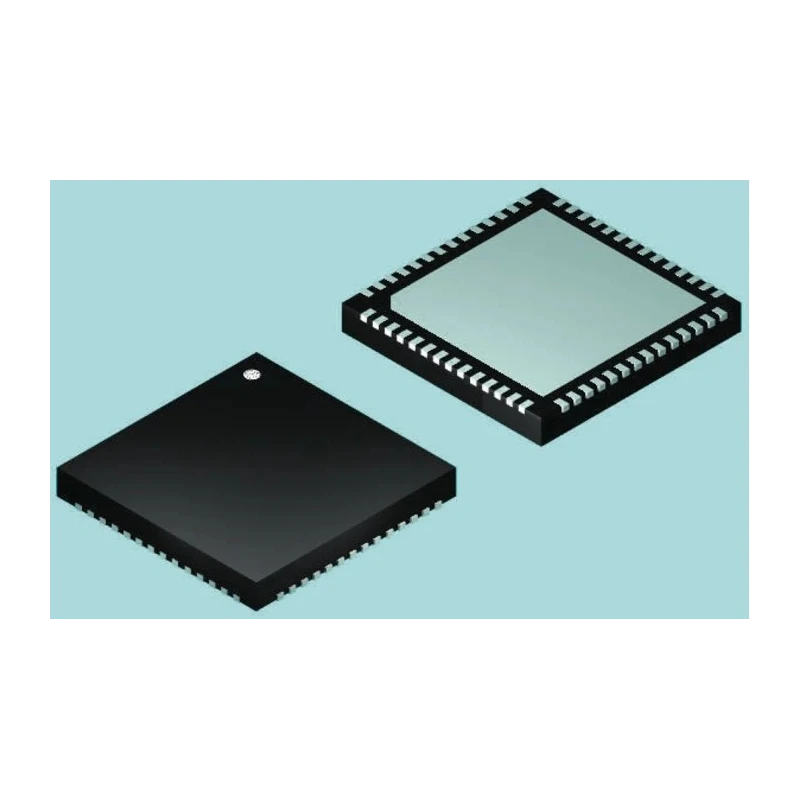

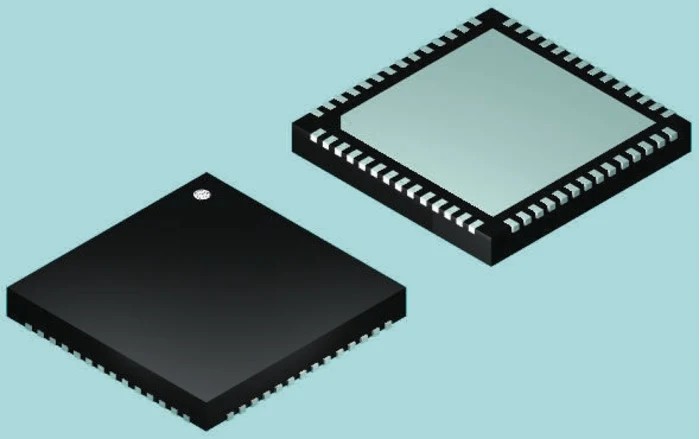

Microchip 16 bit Digital Signal Processor 40 MHz 128kB FLASH 44-Pin QFN dsPIC33FJ128GP804-I/ML
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 880μm |
| Length | 8mm |
| Model | dsPIC33FJ128GP804-I/ML |
| Width | 8mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| ADC Resolution | 12bit |
| Pin Count | 44 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 40MHz |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Device Million Instructions per Second | 40MIPS |
| ADC Channels | 13 |
Key Features
- Operates at a maximum clock frequency of 40 MHz providing efficient processing speed.
- Features 16 kB RAM size and a 16-bit data bus for reliable performance.
- Built with RISC instruction set architecture ensuring streamlined command execution.
- Includes 13 ADC channels with 12-bit resolution for precision analog input conversion.
- Supports operating temperatures ranging from -40°C to 85°C for versatile applications.
- Designed with 5 timers and automotive standard AEC-Q100 compliance for robust control.
- Utilizes a surface mount type and a compact 8 mm × 8 mm × 880 μm package size.
- Employs flash program memory technology with 128 kB memory size for efficient storage.
Product Description
Microchip dsPIC33FJ128GP804-I/ML is a high-performance 16-bit Digital Signal Processor capable of running at a maximum clock frequency of 40 MHz. It offers 128 kB of flash memory and 16 kB RAM, packaged in a compact 44-Pin QFN surface mount device. The processor architecture is based on RISC, optimized for executing digital filter algorithms, high-speed control loops, and advanced digital audio and speech processing tasks.
This DSP incorporates 13 ADC channels with a 12-bit resolution, enabling precise and high-resolution analog signal conversions. Operating voltage ranges from 3.3 V to 3.6 V and it supports operating temperatures between -40°C and 85°C, making it suitable for a wide spectrum of industrial and automotive applications. It includes 5 timers and complies with the automotive standard AEC-Q100, ensuring its reliability in demanding environments.
The compact 8 mm by 8 mm QFN package with a height of 880 μm allows integration into space-constrained designs. This dsPIC33F device is ideal for embedded systems requiring motor control, digital power supplies, and advanced signal processing with real-time operational capabilities.
Maximum clock frequency of 40 MHz for efficient processing. 128 kB flash program memory for application code. 16 kB RAM and 16-bit data bus for data handling. 13 ADC channels with 12-bit resolution for accurate analog readings.
Surface mount QFN package (44 pins) measuring 8 mm × 8 mm × 880 μm. Operating temperature range from -40°C to 85°C suitable for industrial use. Compliance with automotive AEC-Q100 standard ensuring quality and reliability.
5 timers for versatile timing and control operations.
This device supports embedded applications in industrial automation, automotive motor control, digital audio, and power management systems. Its advanced peripherals and compact footprint allow efficient high-performance integration in diverse environments.
Explore more Microchip Digital Signal Processors and related semiconductor solutions at EnvMart for your embedded system designs and industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 40 MHz, providing efficient processing speed for various applications.
It includes 128 kB of flash program memory for application code storage.
This model has a RAM size of 16 kB, allowing for effective data handling during processing tasks.
It features 13 ADC channels with a 12-bit resolution, enabling precise analog signal conversions.
The operating temperature range for this model is from -40°C to 85°C, making it suitable for various industrial applications.
It is packaged in a compact 44-Pin QFN surface mount device, measuring 8 mm x 8 mm x 880 μm.
This model includes 5 timers, providing versatile timing and control operations for various applications.
The supply voltage for this model ranges from 3.3 V to 3.6 V.
It employs a RISC instruction set architecture, which ensures streamlined command execution for efficient processing.
Yes, it complies with the automotive standard AEC-Q100, ensuring reliability in demanding environments.
This processor is suitable for embedded applications in industrial automation, automotive motor control, digital audio, and power management systems.
The dimensions of this model are 8 mm in length, 8 mm in width, and 880 μm in height.
