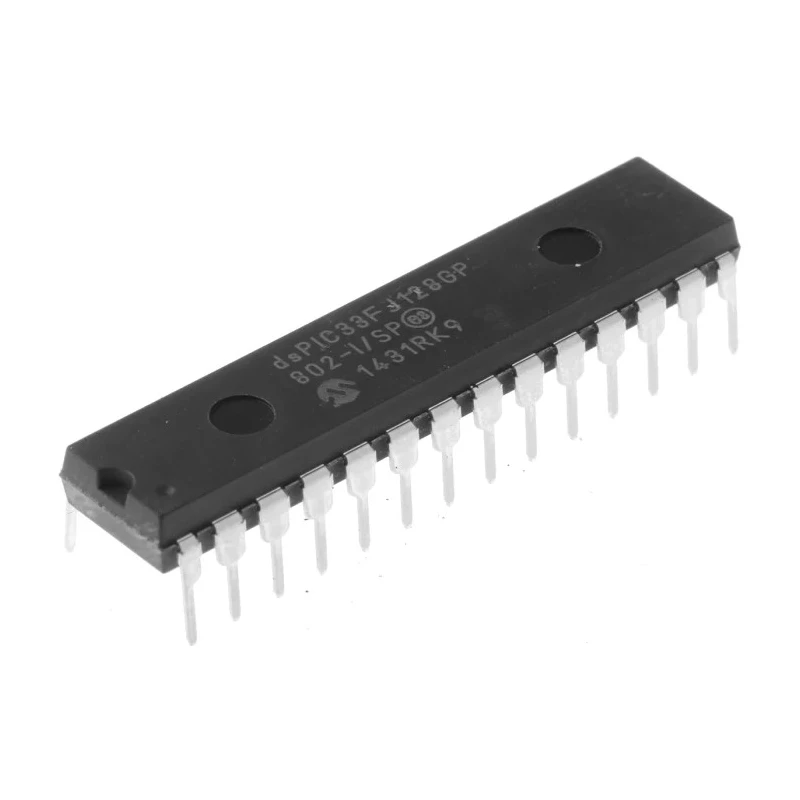

Microchip dsPIC33FJ 16-bit Digital Signal Processor 40 MHz 128 kB FLASH 28-Pin SPDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.3mm |
| Length | 34.67mm |
| Model | dsPIC33FJ |
| Width | 7.24mm |
| Mount Type | Through Hole |
| Core | dsPIC33F |
| Series | dsPIC33FJ |
| Maximum Operating Temperature | 85°C |
| Number Of Cores | 1 |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| ADC Resolution | 12bit |
| Timer Resolution | 32bit |
| Standards/Approvals | VDE, AEC-Q100, IEC 60730 |
| Pin Count | 28 |
| Automotive Standard | AEC-Q100 Rev G Grade 0 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 40MHz |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 40MIPS |
| Number of PWM Units | 1 |
| Number of PWM Channels | 4 |
Key Features
- Features a 40 MIPS dsPIC33F core with 16-bit data bus width.
- Includes 16 kB RAM and RISC instruction set architecture.
- Operates at a minimum supply voltage of 3.3V and maximum of 3.6V.
- Supports 1 ADC, 4 PWM channels, and 5 timers with 32-bit resolution for timers.
- Designed for automotive standard AEC-Q100 Rev G Grade 0 compliance.
- Compact dimensions with 34.67 mm length, 7.24 mm width, and 3.3 mm height.
- Package type through-hole SPDIP suitable for easy insertion.
- Ideal for high-performance digital signal processing, motor control, and power supply applications.
Product Description
Microchip dsPIC33FJ dsPIC33FJ128GP802-I/SP 16-bit Digital Signal Processor delivers 40 MHz processing speed with 128 kB FLASH memory in a 28-pin SPDIP package. Operating at a supply voltage range of 3.3V to 3.6V, this device integrates a 16-bit data bus and a RISC instruction set architecture, enabling efficient execution of digital filter algorithms and high-speed precision control loops.
Featuring a 40 MIPS dsPIC33F core, the processor supports 16 kB of RAM and advanced peripherals including one 12-bit ADC, four PWM channels, and five timers with 32-bit resolution. The package’s dimensions are compact, measuring 34.67 mm in length, 7.24 mm in width, and 3.3 mm in height, ensuring space-efficient PCB integration.
The dsPIC33FJ is suitable for applications in automotive-grade systems, confirmed by its compliance with AEC-Q100 Rev G Grade 0 standards, as well as for digital audio processing, speech processing, and switched-mode power supply (SMPS) designs featuring high-resolution PWM and fast ADCs.
Its through-hole SPDIP form factor simplifies mounting and assembly processes. This digital signal processor is ideal for industrial, automotive, consumer electronics, and embedded system development requiring robust real-time digital processing capabilities.
Features a 40 MIPS 16-bit core and FLASH program memory. Includes one 12-bit ADC and multiple PWM channels for precise control outputs. Supports operation at extended temperatures from -40°C up to 85°C. Comes in a 28-pin SPDIP package suitable for through-hole mounting.
Meets automotive and industrial standards including VDE and IEC 60730. Designed for embedded motor control, digital audio processing, and power supply regulation. Compact dimensions support integration in space-constrained applications.
Microchip dsPIC33FJ series products offer developers a blend of DSP and MCU performance elements, enabling optimized real-time signal processing for laboratory instruments, automotive electronics, industrial automation, and power electronics. Browse the full range of Digital Signal Processors on EnvMart for reliable embedded solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 40 MHz.
It features a program memory size of 128 kB FLASH.
The operating temperature range is from -40°C to 85°C.
This model supports four PWM channels.
It includes one 12-bit ADC.
The dimensions are 34.67 mm in length, 7.24 mm in width, and 3.3 mm in height.
The supply voltage range is from 3.3V to 3.6V.
It has five timers with 32-bit resolution.
It utilizes a RISC instruction set architecture.
It complies with the AEC-Q100 Rev G Grade 0 standards.
The mount type is through-hole SPDIP.
It meets VDE, AEC-Q100, and IEC 60730 standards.
