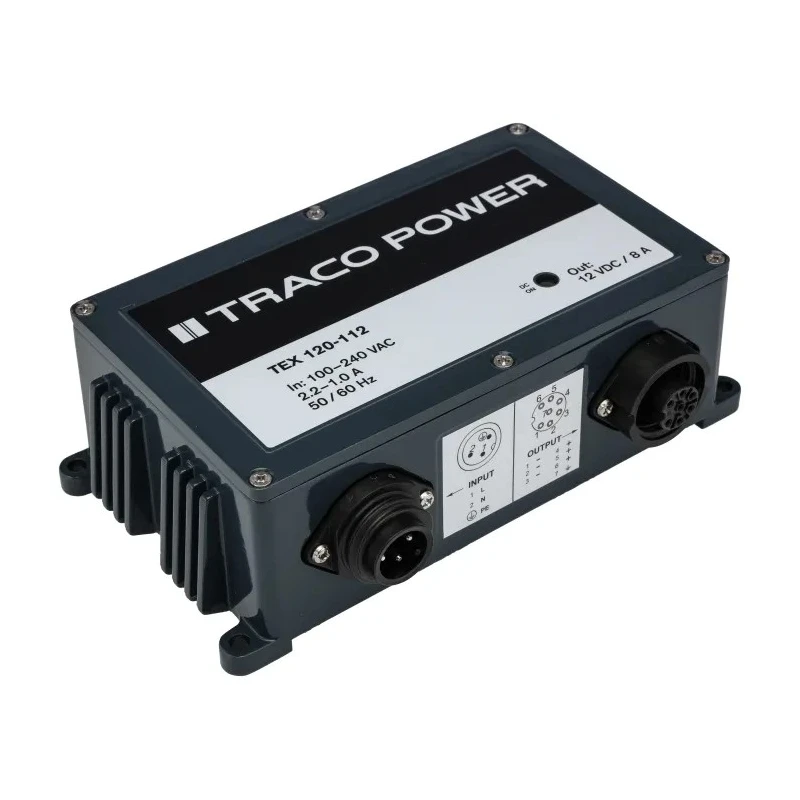

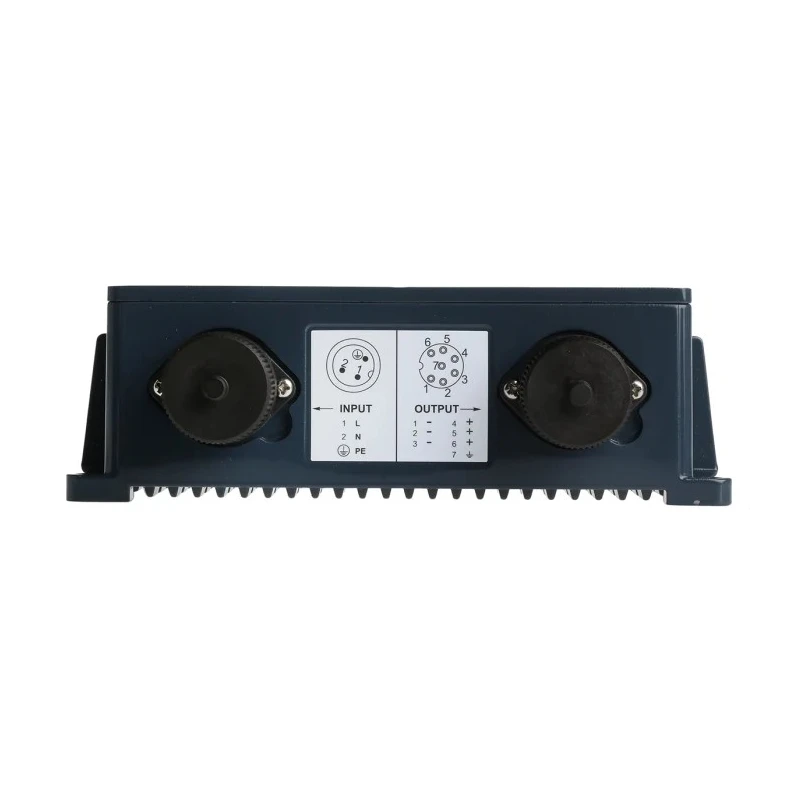

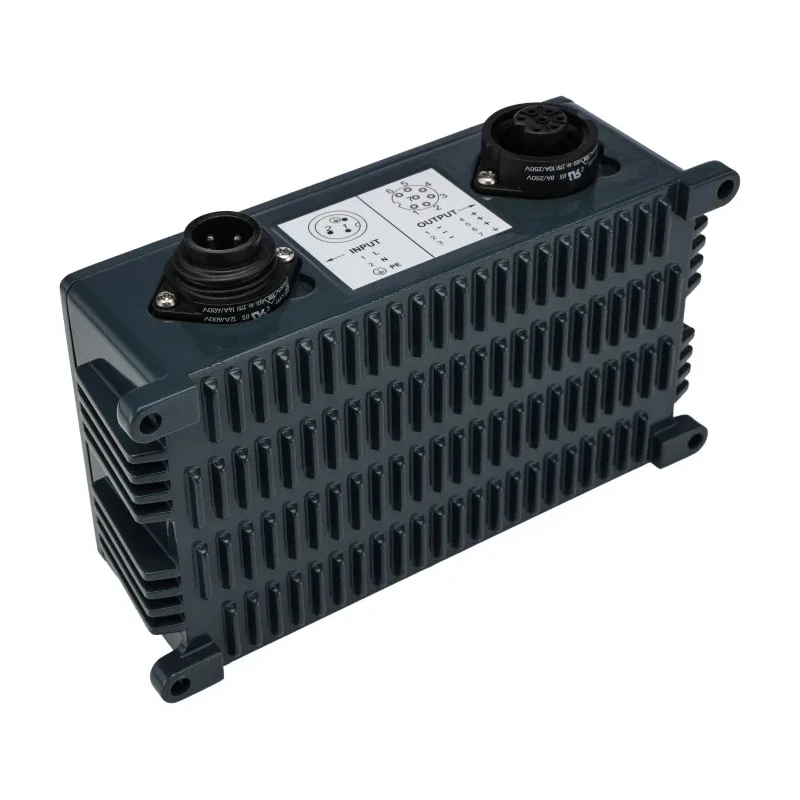

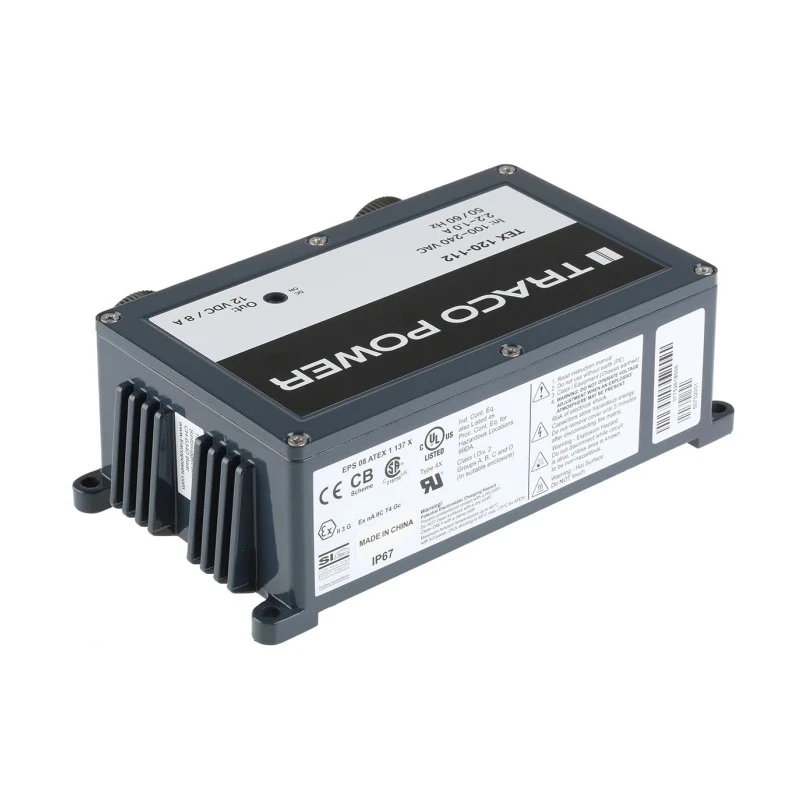

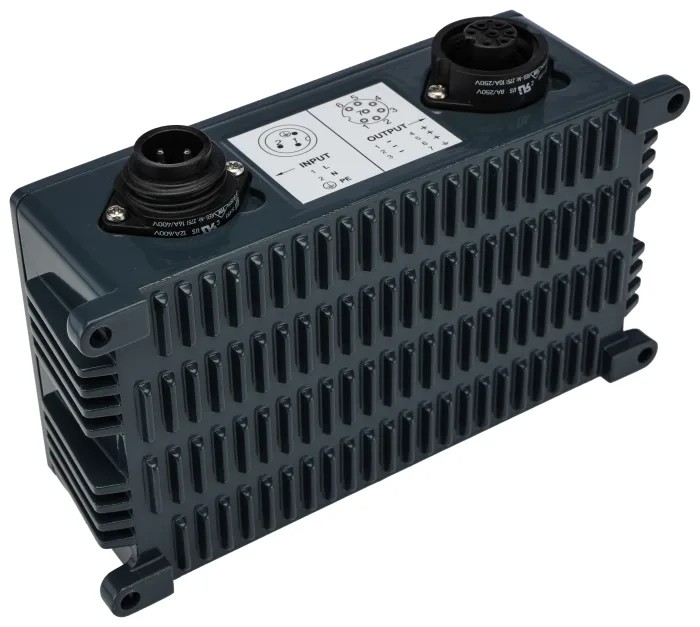

TRACOPOWER Switching Power Supply 12V DC 96W Chassis Mount, 8A Continuous Output TEX 120-112

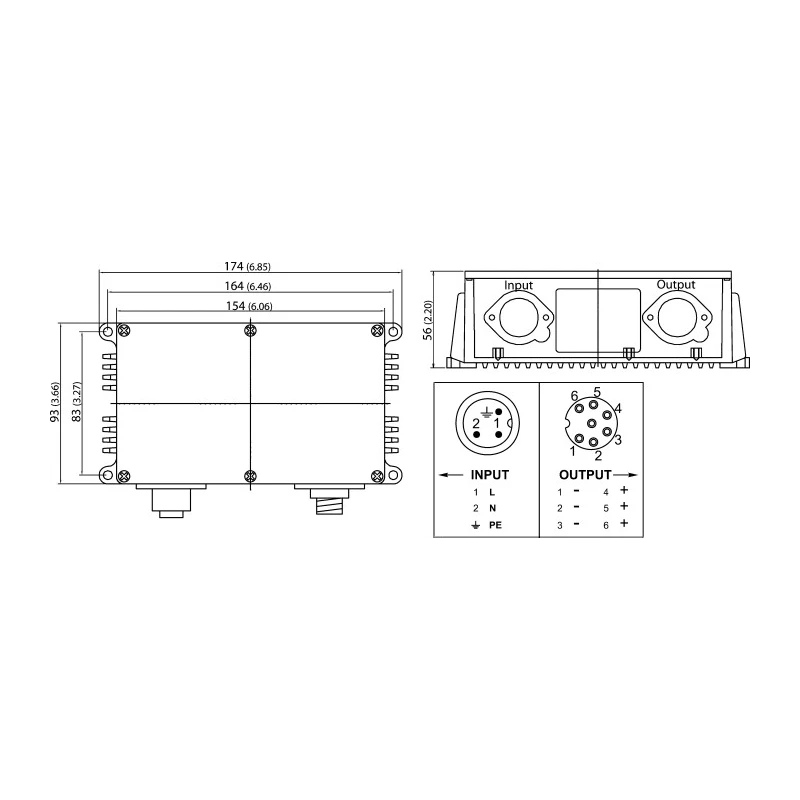

TRACOPOWER TEX 120-112 Switching Power Supply is a reliable industrial-grade power converter designed to deliver a stable 12V DC output with a continuous current of 8A and total power of 96W. This chassis mount power supply supports a wide AC input voltage range from 85 to 264V, making it suitable for diverse power environments. Its compact dimensions of 174mm (L) x 93mm (W) x 56mm (D) allow for space-saving installation in control panels and electronic enclosures.

The unit exhibits high efficiency at 87%, reducing wasted energy and excess heat generation. It is engineered to operate in extreme temperature conditions from -40°C to 85°C, suitable for harsh industrial and factory use. The durable die-cast aluminium housing provides mechanical robustness and helps dissipate heat effectively.

Safety and quality are assured through compliance with IEC/EN 62368-1, REACH, and CE standards. The power supply also features a high isolation voltage of 3000V DC to withstand brief electrical surges. Certified ATEX rating ensures safe deployment in hazardous locations with explosive atmospheres.

With an IP67 ingress protection rating, this power supply is dust-tight and resistant to water immersion up to 1 meter, making it reliable in demanding environments such as outdoor installations and wet conditions.

This product is widely used across renewable energy installations, lighting systems, data center equipment, and food production machinery. It ensures uninterrupted, secure power supply performance for sensitive electronic and industrial machinery.

Supports input voltage range from 85 to 264V AC for broad compatibility. Compact chassis mount design measuring 174mm length, 93mm width, and 56mm depth. Operates efficiently at 87% conversion rate, minimizing energy loss.

Wide operating temperature range from -40°C up to 85°C for harsh environments. Includes ATEX certification for hazardous area applications. Constructed with rugged die-cast aluminium housing for durability. High isolation voltage of 3000V DC for enhanced surge protection.

Complies with IEC/EN 62368-1, REACH, and CE safety standards. IP67 rated for dust tightness and water immersion resistance up to 1m depth. Ideal for use in renewable energy, lighting, data centers, and food production sectors.
