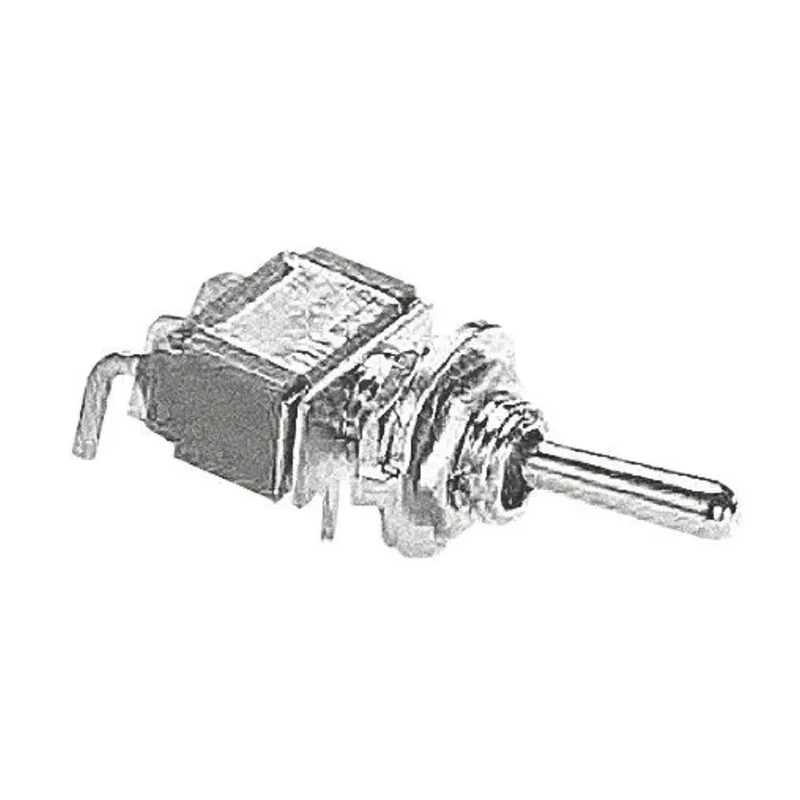

TE Connectivity Toggle Switch PCB Mount On-On DPDT Through Hole Terminal 28 V dc 120 V ac 2-1825138-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 0.50in |
| IP Rating | IP67 |
| Width | 0.45in |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 6000Cycles |
| Contact AC Voltage | 120V ac |
| Actuator Material | Phenolic |
Key Features
- Designed for PCB mounting with through hole terminals for secure installation.
- Supports a switch contact current rating of 5 A for reliable performance.
- IP67 rated for protection against dust and water ingress.
- Features phenolic actuator material and stainless steel frame for durability.
- Compact panel cutout size of 6.35 mm suitable for precision mounting.
- Mechanical life rated for 6000 cycles ensuring longevity in operation.
- Operates within temperature range from -30°C to 85°C for diverse environmental conditions.
- Epoxy sealed terminals provide extra protection against contaminants.
Product Description
TE Connectivity model 2-1825138-3 is a robust toggle switch designed for PCB mounting, featuring a Double Pole Double Throw (DPDT) On-On switch operation ideal for switching applications in electrical and automation systems.
It supports electrical load ratings of 28 V dc and 120 V ac with a contact current capacity of 5 A, making it suitable for controlling moderate electrical circuits in industrial and manufacturing environments.
The switch incorporates through hole terminal types providing reliable mechanical and electrical connections, backed by epoxy sealed terminals to resist dust and moisture ingress, achieving an IP67 protection rating.
Constructed with a stainless steel frame and brass tin-plated solder supports, along with a phenolic actuator, the toggle switch ensures mechanical durability and long operating life rated for up to 6000 cycles.
Its compact size with a panel cutout of 6.35 mm and actuator length of 10.41 mm fits easily into precise mounting applications. The device functions within a temperature range from -30°C to 85°C, suitable for a wide span of operating environments.
PCB mount toggle switch with On-On DPDT configuration. Through hole terminals with epoxy sealed construction. Rated 5 A contact current at 28 V dc and 120 V ac. IP67 rated to withstand harsh environments. Phenolic actuator with stainless steel frame for durability.
Mechanical life of 6000 cycles for extended use. Compact mounting size suited for industrial automation. Operates reliably from -30°C to 85°C ambient temperature. Epoxy sealed terminals for enhanced protection. Ideal for electrical, automation, and control gear usage.
TE Connectivity products are engineered for industrial, manufacturing, and automation applications requiring reliable, precise switch operation. Explore the broad range of TE Connectivity Toggle Switches and related components on EnvMart for dependable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a contact current capacity of 5 A, making it suitable for controlling moderate electrical circuits.
It is rated for a contact DC voltage of 28 V and an AC voltage of 120 V, allowing for versatile applications in electrical systems.
This unit has an IP67 rating, providing protection against dust and water ingress, suitable for harsh environments.
It features through hole terminals which provide reliable mechanical and electrical connections.
The mechanical life of this model is rated for 6000 cycles, ensuring longevity in operation.
The compact panel cutout size required for this toggle switch is 6.35 mm, suitable for precision mounting.
It operates within a temperature range from -30°C to 85°C, making it suitable for diverse environmental conditions.
The switch features a phenolic actuator material and a stainless steel frame, providing durability and reliability.
Yes, this model meets RoHS standards, ensuring it is free from hazardous substances.
The actuator length of this model is 10.41 mm, allowing for effective operation in compact spaces.
This toggle switch has a Double Pole Double Throw (DPDT) On-On configuration, ideal for various switching applications.
The country of origin for this model is India, reflecting its manufacturing location.
