TE Connectivity Toggle Switch PCB Mount On-On DPDT Solder Terminal 28 V dc 240 V ac 2-1825138-8

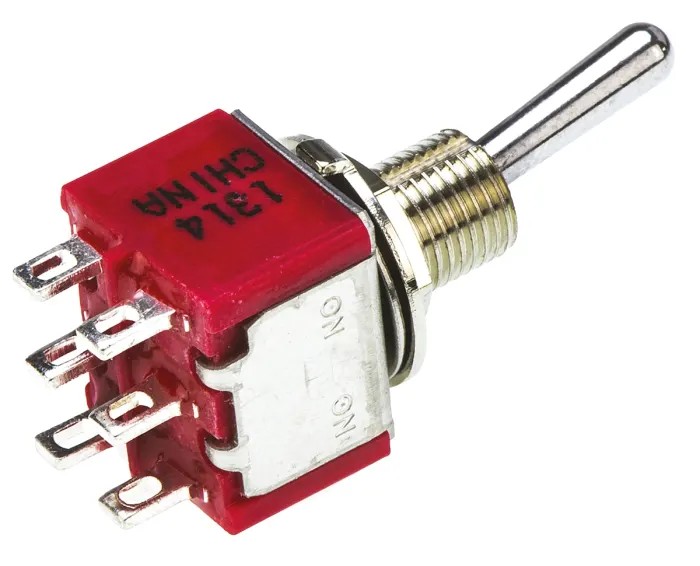

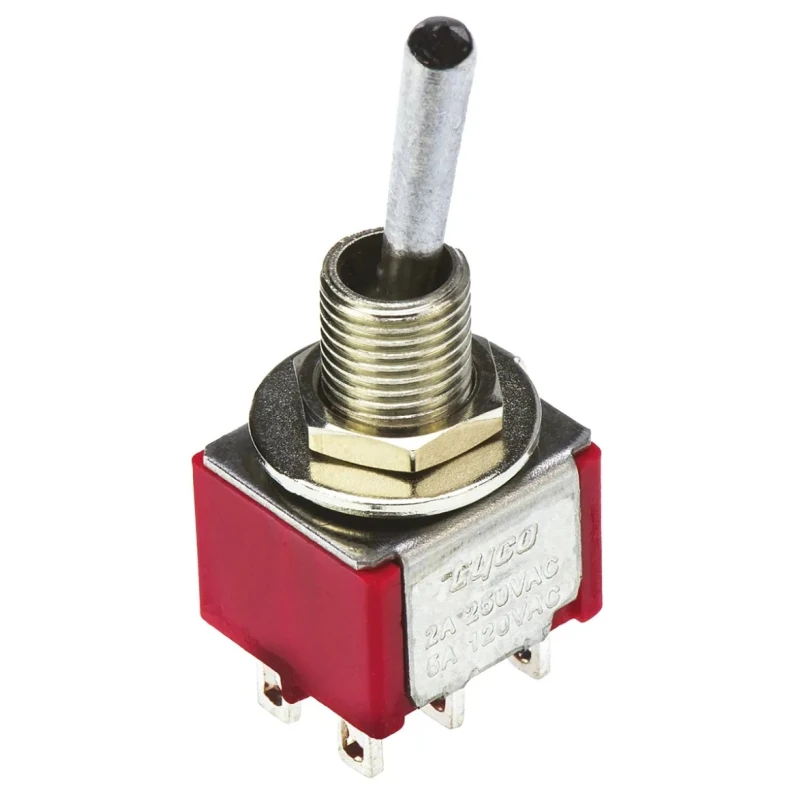

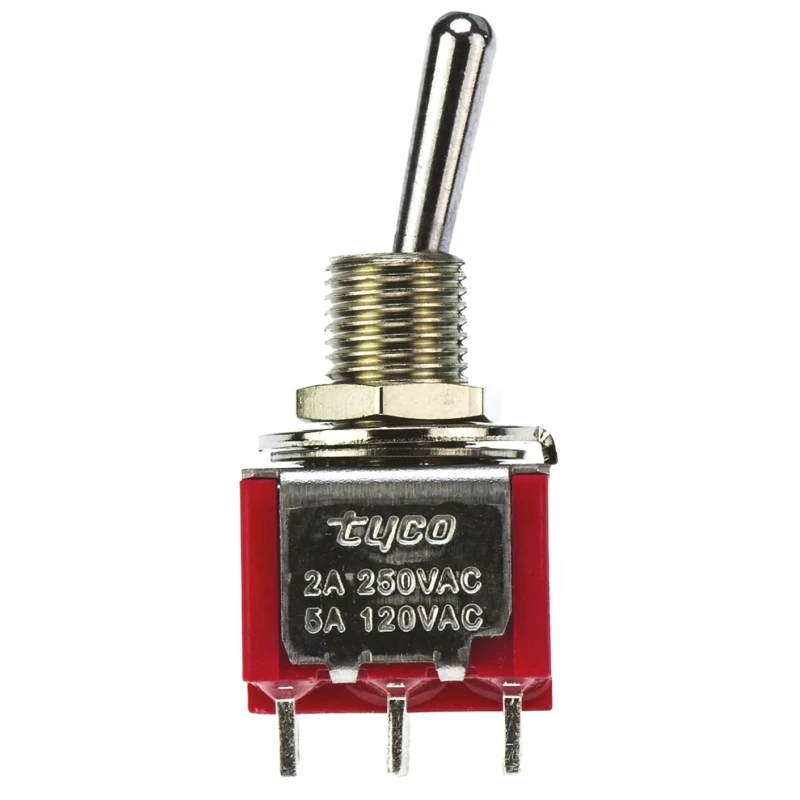

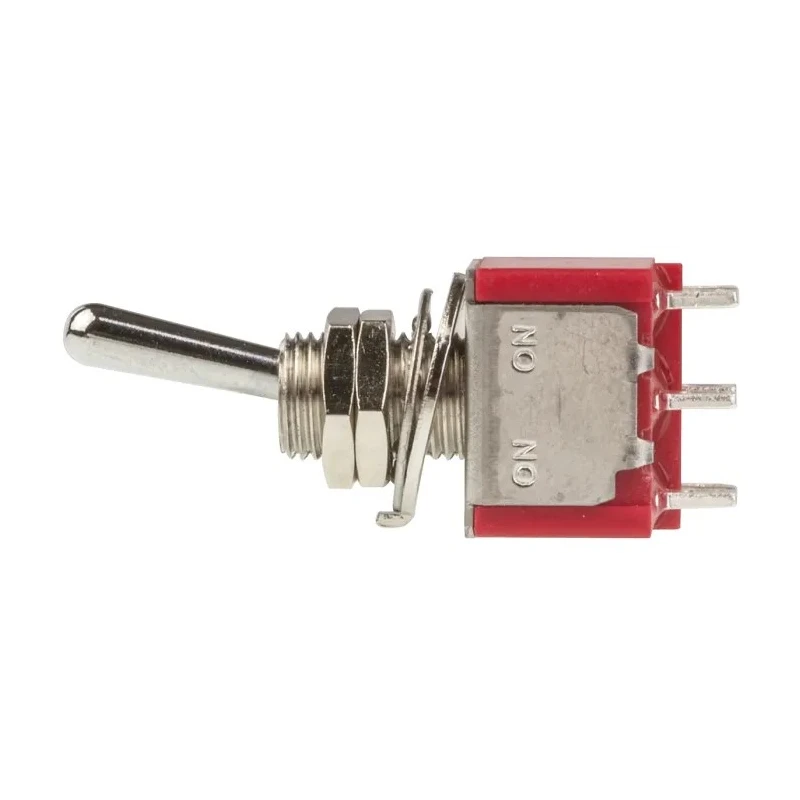

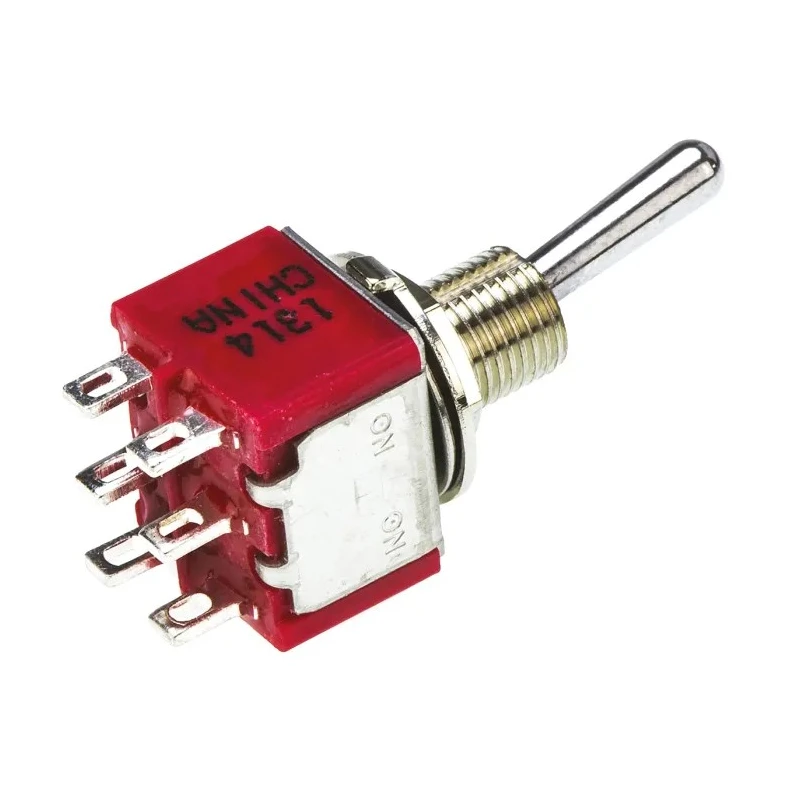

TE Connectivity 2-1825138-8 Toggle Switch PCB Mount On-On DPDT is engineered for reliable and efficient control in electrical and automation systems. Designed to be mounted on printed circuit boards (PCBs), this switch delivers dependable switching with its double pole double throw (DPDT) configuration, allowing two separate circuits to be controlled simultaneously.

With contact ratings of 28 V DC and 240 V AC at 5 A current, it is suitable for a broad range of industrial and commercial electrical applications. The switch operation is on-on, and it utilizes solder terminals for stable mounting and connection reliability. The actuator is made from durable phenolic material, ensuring longevity and resistance to environmental factors.

Its compact size with dimensions of approximately 0.50 inch in length and 0.45 inch in width allows integration into designs where space is limited. The IP55 rating assures the switch is protected against dust ingress and water jets, making it suitable for challenging environments. Additionally, it can safely operate in temperatures ranging from -30°C to 85°C, making it versatile for various conditions.

The mechanical life expectancy of 6000 cycles underlines its suitability for frequent switching applications in industrial processes, automation, and control panels. The switch is officially certified according to RoHS, cULus, IEC, EN, and UL standards, conveying conformity to international safety and environmental guidelines.

Constructed with a stainless steel frame and brass tin plated solder support, it offers high mechanical strength and corrosion resistance, increasing durability when used in continuous operational settings. Epoxy sealed terminals provide additional protection from environmental contamination.

This Toggle Switch finds applications in industrial automation, electrical control systems, manufacturing machinery control, HVAC systems, and instrumentation panels requiring reliable manual switching action.

The switch features a double pole double throw (DPDT) contact configuration for flexible circuit control. It operates with a 28 V DC and 240 V AC contact voltage rating and 5 A contact current. Designed for PCB mounting with solder terminals for secure and efficient connections.

Complies with IP55 rating ensuring protection against dust and water jets, enhancing durability. Constructed with a phenolic actuator material and epoxy sealed terminals for long service life. Rated for mechanical life up to 6000 cycles for sustained performance in demanding environments.

Suitable for operating temperatures from -30°C to 85°C, accommodating varied conditions. Compact dimensions of 0.50 inches length and 0.45 inches width make it ideal for space-constrained applications. Standards and approvals include RoHS, cULus, IEC, EN, and UL, ensuring quality and safety compliance.

Manufactured in China with a stainless steel frame and brass tin plated solder support for mechanical strength. Explore the comprehensive range of TE Connectivity switches and other electronic components at EnvMart to enhance your electrical projects and automation systems.
