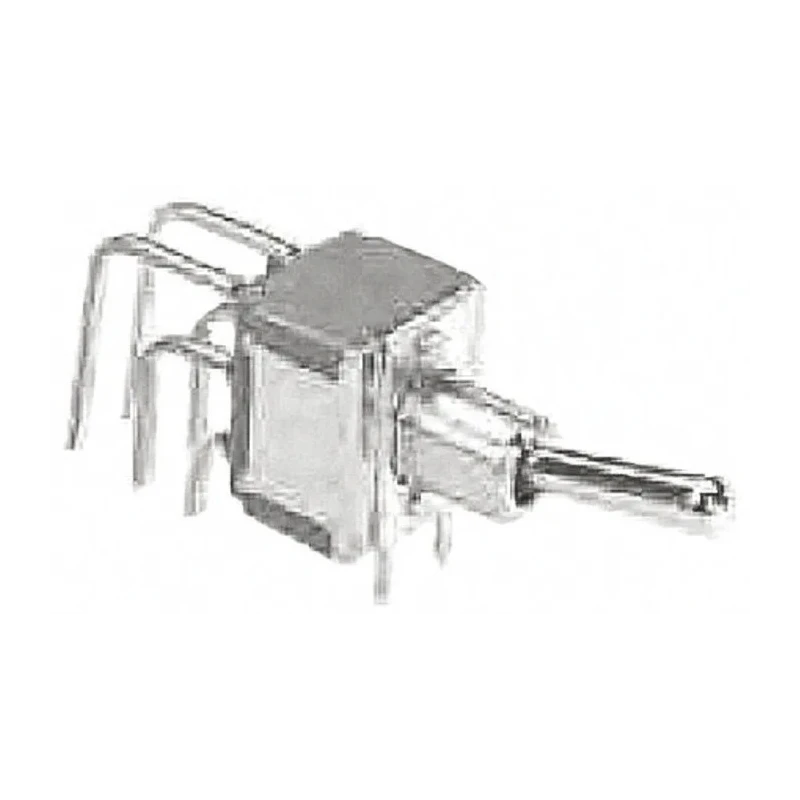

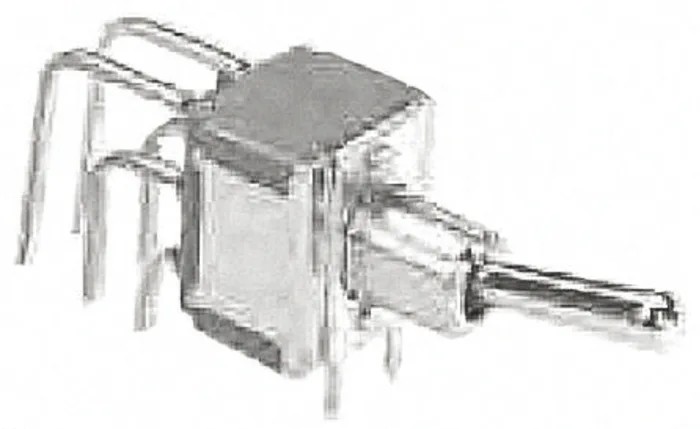

TE Connectivity Toggle Switch, PCB Mount, On-On, DPDT, Through Hole Terminal, 28 V dc, 115 V ac 1-1825138-8
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| IP Rating | IP67 |
| Width | 0.45in |
| Mount Type | PCB |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 0.25 in |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 12.19mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- Features a dual-pole, double-throw switch configuration suitable for various control applications.
- Rated for 5A contact current allowing for moderate power handling.
- Mounts via through hole terminals ensuring secure PCB installation.
- Sealed to IP67 rating providing robust protection against dust and water ingress.
- Operates within a temperature range from -30°C to 85°C for diverse environments.
- Actuator length of 12.19 mm with a phenolic material actuator for durability.
- Compact dimensions of 0.5in length, 0.45in width, and 0.35in height ensure space-efficient usage.
- Complies with RoHS standards for environmental safety.
Product Description
TE Connectivity 1-1825138-8 toggle switch is a high-quality DPDT (Double Pole Double Throw) switch designed for PCB mount applications with through hole terminals. It provides dependable On-On switch operation rated at 5A contact current, handling voltages up to 28 V dc and 115 V ac.
The switch features epoxy sealed terminals and a robust stainless steel frame with brass, tin-plated solder support, enhancing durability and reliability. The phenolic actuator, measuring 12.19 mm in length, ensures smooth operation, while the device withstands harsh environments due to its IP67 protection rating. Compact physical dimensions (0.5in length, 0.45in width, 0.35in height) make it suitable for space-constrained circuit designs.
Operating temperature ranges from -30°C to 85°C allow the toggle switch to function reliably in diverse industrial and commercial environments. The product complies with RoHS environmental directives contributing to safer and more sustainable electronics manufacturing.
This Toggle Switch is ideal for applications in electrical, automation, and control systems requiring a reliable and compact switch solution. The Gemini A series provides consistent, high-quality performance suitable for manufacturing, plant machinery, instrumentation, and PCB-mounted control panels.
Dual-pole double-throw configuration for versatile circuit control. Sealed terminals and stainless steel frame for enhanced mechanical and environmental robustness. PCB mount with through-hole terminals for secure installation.
Operates under broad temperature conditions and is rated IP67 for ingress protection. Compact form factor suitable for tight electronic assemblies. RoHS-compliant for environmental safety and compliance. High-quality phenolic actuator for reliable operation.
Suitable for industrial automation, electrical controls, and signal switching applications. Gemini A Series - trusted reliability and performance. Explore the robust range of TE Connectivity switches at EnvMart for advanced control and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a dual-pole, double-throw (DPDT) contact configuration, allowing for versatile circuit control.
The maximum operating temperature for this toggle switch is 85°C, making it suitable for various environments.
It has an IP67 rating, providing robust protection against dust and water ingress.
The switch has compact dimensions of 0.5 inches in length, 0.45 inches in width, and 0.35 inches in height.
This toggle switch mounts via through-hole terminals, ensuring secure installation on a PCB.
The actuator length is 12.19 mm and is made of phenolic material, which contributes to its operational reliability.
It is rated for contact DC voltage of 28 V and AC voltage of 115 V.
This model is rated for a contact current of 5A, allowing for moderate power handling.
Yes, it complies with RoHS standards, contributing to safer and more sustainable electronics manufacturing.
The minimum operating temperature for this toggle switch is -30°C, allowing it to function in diverse conditions.
It is suitable for applications in electrical, automation, and control systems requiring a reliable switch solution.
This model belongs to the Gemini A series, known for its consistent performance in various applications.
