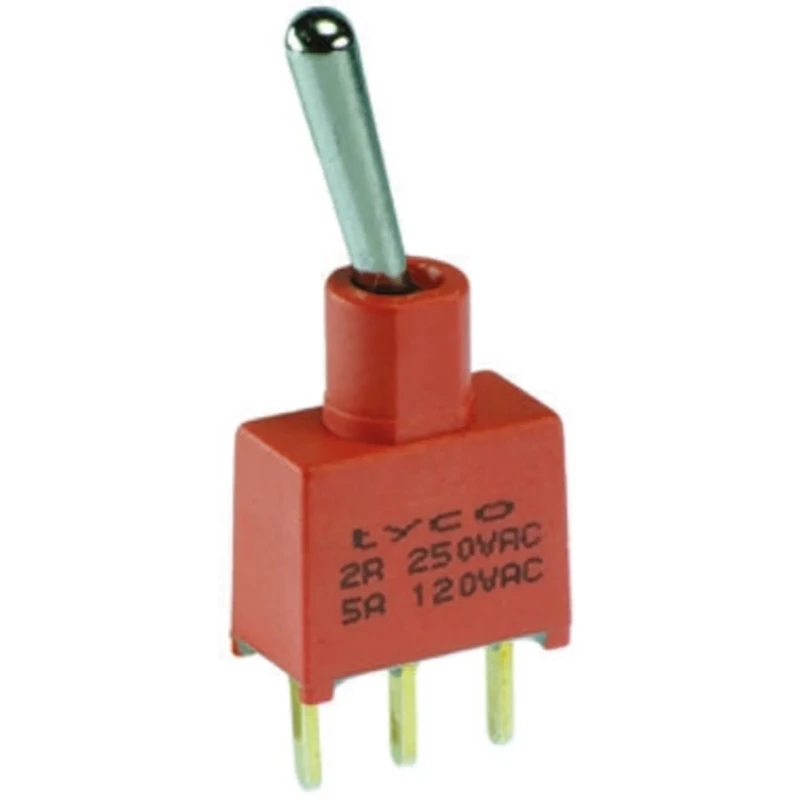

TE Connectivity Toggle Switch, PCB Mount, On-Off-On, SPDT, Through Hole Terminal, 28 V dc, 115 V ac 3-1825142-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 12.7mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- Operates at 28 V dc and 115 V ac contact voltages safely.
- SPDT contact configuration enables single pole double throw switching.
- Through hole terminal type designed for PCB mounting applications.
- Offers IP67 ingress protection rating for dust and water resistance.
- Non-illuminated phenolic actuator measuring 12.7mm for precise switching.
- Maximum contact current rating of 400mA supports moderate electrical loads.
- Wide operating temperature range from -30°C to 85°C ensures durability.
- Stainless steel frame with brass tin plated solder supports robust mechanical construction.
Product Description
TE Connectivity 3-1825142-9 Toggle Switch is a PCB mount, On-Off-On type switch with SPDT contacts designed for precise control in electrical and automation systems. It supports contact voltages of 28 V dc and 115 V ac with a contact current of 400mA, making it suitable for medium-level signal switching and control circuits.
The switch features a phenolic actuator 12.7mm in length, designed for ease of operation and long-life performance. Its through-hole terminal type facilitates secure PCB mounting. The device is epoxy sealed and housed in a stainless steel frame with brass tin plated solder supports to ensure robust mechanical strength and reliable long-term usage.
This toggle switch meets the IP67 rating, providing excellent resistance against dust ingress and water immersion, suitable for industrial, laboratory, and automation environments requiring sealed components. The switch operates reliably in temperature ranges from -30°C to 85°C.
Additional features include a break-before-make contact timing which prevents unwanted electrical shorts during switching transitions. The product complies with RoHS standards for environmental safety.
Applications include industrial control panels, automation systems, instrumentation, and other electronics requiring durable, sealed toggle switches wired through PCB mounting. Operates at 28 V dc and 115 V ac contact voltages safely.
SPDT contact configuration enables single pole double throw switching. Through hole terminal type designed for PCB mounting. IP67 rating ensures protection against dust and water. Robust stainless steel frame and brass tin plated terminals.
Phenolic actuator provides durable and tactile switch operation. Break-before-make for safe switching. Wide operating temperature range: -30°C to 85°C. Epoxy sealed terminal protects against environmental damage. RoHS compliant for environmental safety.
Explore more industrial Toggle Switches and electrical components at EnvMart for your automation and electrical projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an SPDT (Single Pole Double Throw) contact configuration, allowing for On-Off-On switching functionality.
It operates at contact voltages of 28 V dc and 115 V ac, making it suitable for various electrical applications.
The maximum contact current rating for this switch is 400mA, which supports moderate electrical loads.
This unit has an IP67 ingress protection rating, providing excellent resistance against dust and water immersion.
It operates reliably within a wide temperature range from -30°C to 85°C, ensuring functionality in various environments.
This switch is designed for PCB mounting with a through-hole terminal type, facilitating secure installation on printed circuit boards.
The actuator is made from phenolic material, which provides durability and tactile feedback during operation.
Yes, it complies with RoHS standards for environmental safety, ensuring that it meets regulations regarding hazardous substances.
The actuator measures 12.7mm in length, designed for ease of operation.
It is suitable for use in industrial control panels, automation systems, instrumentation, and other electronics requiring durable, sealed toggle switches.
This unit provides On-Off-On switch operation, allowing for versatile control in electrical circuits.
The country of origin for this product is India.
