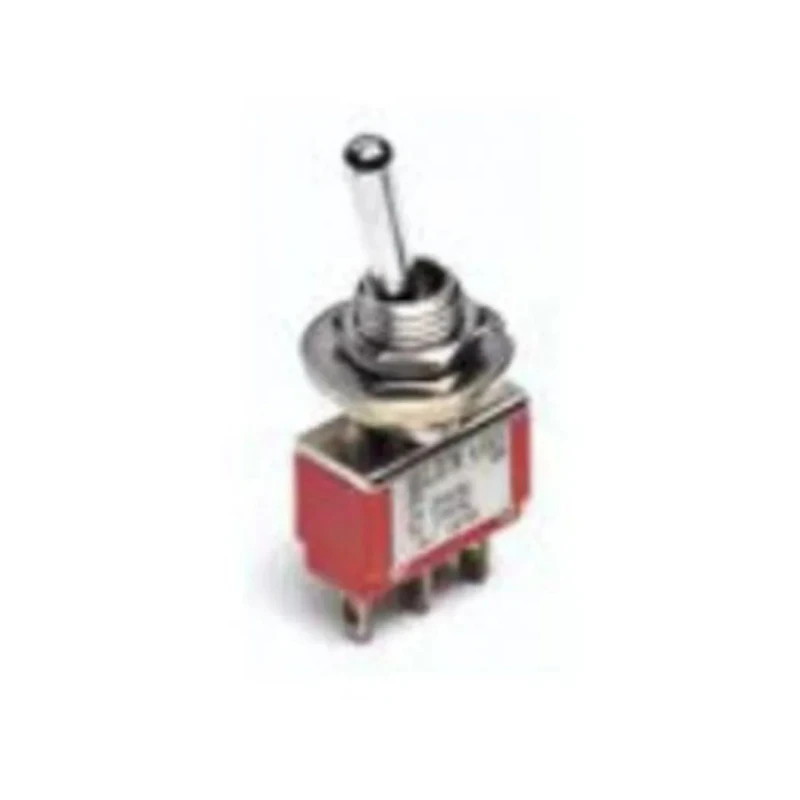

TE Connectivity Toggle Switch PCB Mount On-Off-On SPDT Through Hole Terminal 28V dc 115V ac 1-1825137-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- Qualified for 28V dc and 115V ac voltage ratings with a 5A current capacity.
- Designed with through-hole terminal type for secure PCB mounting.
- Features robust phenolic actuator material and epoxy sealed terminals for enhanced durability.
- Ensured IP67 rating providing dust-tight and water immersion protection.
- Operates reliably within temperature range of -30°C to 85°C.
- Includes a panel cutout size of 6.35 mm and actuator length of 10.41 mm.
- Constructed with a stainless steel frame and brass tin plated solder support for longevity.
- Complies with RoHS standards for environmental safety.
Product Description
TE Connectivity 1-1825137-4 toggle switch offers reliable On-Off-On switch operation suitable for SPDT configurations on PCB mount applications. Rated for 28V direct current and 115V alternating current, it supports a 5 amp contact current, ensuring efficient electrical performance in diverse industrial and electronic devices.
The switch features a phenolic material actuator with a length of 10.41 mm, designed to fit a panel cutout size of 6.35 mm. Its through-hole terminal type allows for robust mounting on PCBs, while its epoxy sealed terminals protect internal contacts, enhancing longevity and preventing environmental damage.
This toggle switch is built within a stainless steel frame, complemented by brass tin plated solder supports to withstand operational stresses. Its IP67 rating certifies complete dust resistance and protection against water immersion, making it suitable for harsh industrial environments, including automation, manufacturing, and control gear assemblies.
Operating reliably between temperatures of -30°C and 85°C, this switch complies with RoHS environmental standards, ensuring safer use in laboratory, HVAC, electrical, and automation applications.
Qualified for 28V dc and 115V ac voltage ratings with a 5A current capacity. Designed with through-hole terminal type for secure PCB mounting. Features robust phenolic actuator material and epoxy sealed terminals for enhanced durability.
Ensured IP67 rating providing dust-tight and water immersion protection. Operates reliably within temperature range of -30°C to 85°C. Includes a panel cutout size of 6.35 mm and actuator length of 10.41 mm. Constructed with a stainless steel frame and brass tin plated solder support for longevity.
Complies with RoHS standards for environmental safety.
This TE Connectivity toggle switch is excellent for use in industrial automation, electrical equipment, manufacturing controls, and any PCB-mount applications requiring durable, precise switching performance. It supports efficient system integration and operational safety.
Explore EnvMart’s comprehensive collection of high-quality Toggle Switches and related electrical components for industrial, laboratory, and commercial HVAC applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This toggle switch is rated for 28V DC and 115V AC, supporting a maximum contact current of 5A.
It has an IP67 rating, providing complete dust resistance and protection against water immersion.
The switch operates reliably within a temperature range of -30°C to 85°C.
This model features a through-hole terminal type for secure PCB mounting.
The actuator length is 10.41 mm, and it requires a panel cutout size of 6.35 mm.
It is constructed with a phenolic actuator material, a stainless steel frame, and brass tin plated solder supports.
Yes, it complies with RoHS standards for environmental safety.
The contact configuration is SPDT (Single Pole Double Throw), allowing for On-Off-On operation.
It is suitable for industrial automation, electrical equipment, manufacturing controls, and any PCB-mount applications requiring durable switching performance.
This toggle switch can handle a maximum contact current of 5A.
Key features include an IP67 rating, through-hole mounting, a phenolic actuator, and epoxy sealed terminals for enhanced durability.
The country of origin for this toggle switch is India.
