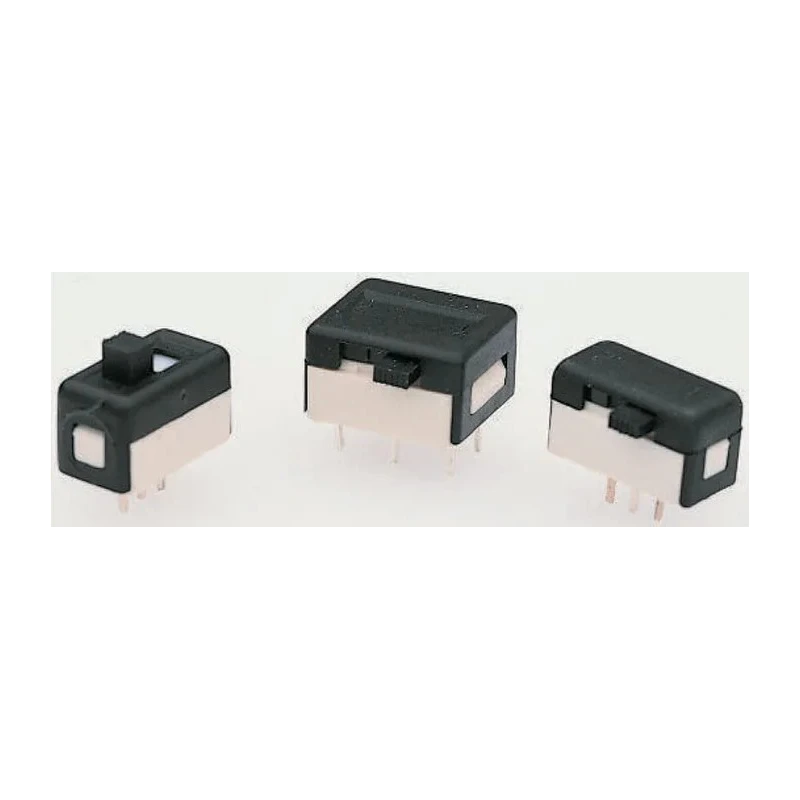

APEM PCB Slide Switch SPDT Latching 100mA Fibreglass Reinforced Polyamide 25136NLDH

Name: APEM PCB Slide Switch SPDT Latching 100mA Fibreglass Reinforced Polyamide 25136NLDH
Brand: APEM
SKU: 344671
Price: 349.07 INR
Availability: InStock



Category PCB Slide Switch Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Length	14.1mm
Model	25136NLDH
Depth	8.1mm
Width	7.5mm
Mount Type	PCB
Series	25
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	On-None-On
Minimum Operating Temperature	-40°C
Terminal type	Through Hole
Standards/Approvals	UL
Switch Operation	Latching
Contact DC Voltage	30V dc
Switch Contact Current	100mA
Mechanical Life	20000Operations
Electrical Life	10000 cycles
Actuator Material	Fibreglass Reinforced Polyamide

Key Features

Features SPDT contact configuration with latching switch operation.
Rated for 100mA switch contact current at 30V DC.
Constructed with fibreglass reinforced polyamide actuator and PBT high temperature thermoplastic case.
Mechanical life expectancy of 20000 operations ensuring durability.
Designed for through-hole PCB mounting with sealed terminals to prevent flux ingress during soldering.
Operates reliably within temperature range of -40°C to 85°C.
UL approved standard compliance ensuring safety and quality.
Series 25 miniature slide switch suitable for industrial and electronics applications.

Product Description

The APEM 25136NLDH is a high-quality PCB slide switch featuring a Single Pole Double Throw (SPDT) contact configuration with latching operation designed for efficient switching in electronic circuit boards. This miniature slide switch belongs to the 25000N series and is constructed using robust fibreglass reinforced polyamide for the actuator and PBT high temperature thermoplastic for the case, providing excellent mechanical strength and thermal resistance.

With a compact size of 14.1mm length, 7.5mm width, and 8.1mm depth, it suits tight PCB layouts. The switch supports a contact current of 100mA at 30V DC, making it ideal for low-power signal switching applications. Its through-hole terminal type with sealed terminals prevents flux ingress during soldering, enhancing reliability and longevity.

Designed for demanding environments, the switch operates effectively within a temperature range from -40°C to 85°C. It has a mechanical life expectancy of 20000 operations, and electrical life rated at 10000 cycles, ensuring durability and dependable performance in industrial, laboratory, telecommunications, and commercial electronic applications.

The product complies with UL standards, confirming its quality and safety credentials. It is manufactured in France, maintaining high European quality standards. This switch is suitable for automation, control systems, instrumentation, and electronic device manufacturing sectors requiring reliable miniature slide switches.

SPDT contact configuration for versatile switching functions. Latching switch operation for stable ON-OFF positioning. Fibreglass reinforced polyamide actuator and PBT thermoplastic case materials. Compact dimensions for space-constrained PCB designs.

Through-hole mount with sealed terminals to avoid flux contamination. Mechanical life of 20000 operations and electrical life of 10000 cycles. Operating temperature range from -40°C to 85°C. UL approved, ensuring compliance with international safety standards.

Manufactured in France to ensure high reliability and quality.

This APEM PCB Slide Switch is ideal for industrial automation, electronic instrumentation, telecommunications equipment, and other applications requiring durable and precise switching solutions. Browse more high-quality switches and electronic components in the Electronics & Electricals category on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching functions.

It can operate effectively within a maximum temperature of 85°C.

The switch is rated for a contact current of 100mA at 30V DC.

The switch has a length of 14.1mm, a width of 7.5mm, and a depth of 8.1mm, making it suitable for tight PCB layouts.

It is designed for through-hole PCB mounting, which enhances its stability on circuit boards.

The actuator is made from fibreglass reinforced polyamide, while the case is constructed from PBT high temperature thermoplastic.

It has a mechanical life expectancy of 20,000 operations, ensuring durability in various applications.

Yes, it complies with UL standards, confirming its safety and quality credentials.

The electrical life of this model is rated at 10,000 cycles, indicating its reliability for repeated use.

This model operates effectively within a temperature range of -40°C to 85°C.

It is suitable for industrial automation, electronic instrumentation, telecommunications equipment, and other applications requiring reliable switching solutions.
