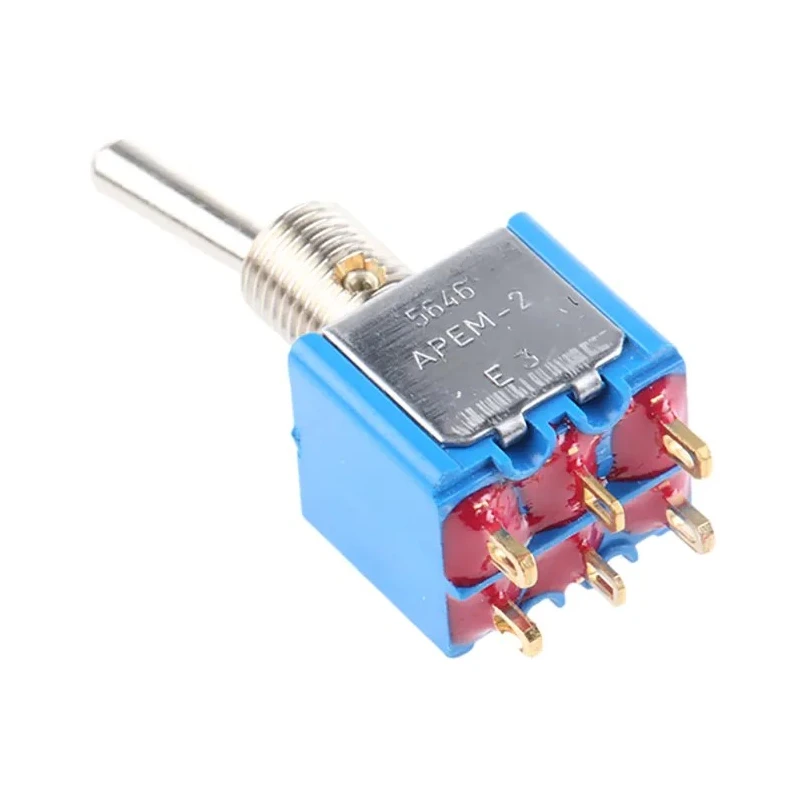

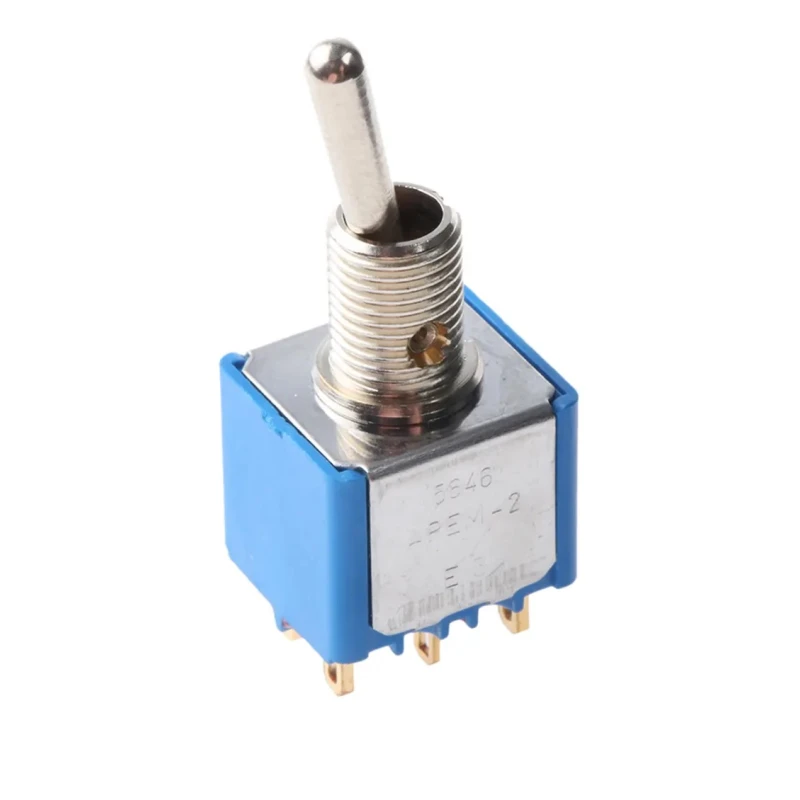

APEM Toggle Switch Panel Mount On-On DPST Solder Lug Terminal 24 V dc 250 V ac 5646CDB
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 36mm |
| Length | 14mm |
| Model | 5646CDB |
| Width | 12mm |
| Mount Type | Panel |
| Series | 5000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | Solder Lug |
| Standards/Approvals | UL, RoHS, NFVDE, CSA, CECC |
| Switch Operation | On-On |
| Actuator Length | 10.5mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
Key Features
- Panel mount design ensures easy installation and secure mounting.
- Double pole single throw (DPST) contact configuration.
- Switch operation type is On-On, providing two stable positions.
- Solder lug terminal types facilitate solid electrical connections.
- Actuator constructed from durable brass material.
- Compact panel cutout size of 6.5 mm for versatile mounting.
- Operating temperature range from -40°C to 85°C ensures reliability in harsh environments.
- Rated current capacity is 400 mA suitable for low-power switching.
Product Description
APEM 5646CDB toggle switch is a reliable panel mount electrical switch designed for On-On DPST switching configuration with solder lug terminals. It supports operating voltages of 24 V dc and 250 V ac. The actuator is made of robust brass, ensuring long-term durability and precise operation.
This switch features a compact 6.5 mm panel cutout size, suitable for a wide range of applications in industrial, electrical, automation, and control systems. It operates reliably across temperature ranges from -40°C to 85°C, making it suitable for harsh environments.
The switch offers a contact current rating of 400 mA, ideal for low power switching needs. Its mechanical life extends to 100,000 operations, providing dependable performance over time. Dimensions of 36 mm height, 14 mm length, and 12 mm width allow integration into compact control panels.
Solder lug terminals provide secure and reliable electrical connections. The switch complies with standards including UL, RoHS, NFVDE, CSA, and CECC, ensuring quality and safety for industrial and commercial use.
Panel mount design for secure installation. Double pole single throw (DPST) contact configuration. Durable brass actuator material for long life. Wide temperature operating range suitable for harsh environments. Mechanical life of 100,000 operations.
Compact size with 6.5 mm panel cutout. Rated for 24 V dc and 250 V ac voltages. Solder lug terminals for stable electrical connections. Certified to multiple industrial standards for safety and compliance.
This toggle switch is ideal for industrial automation, electrical control panels, manufacturing machinery, and other applications requiring reliable manual switching with DPST configuration. Browse more Toggle Switches and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a double pole single throw (DPST) contact configuration, allowing for two stable positions in its On-On operation.
It supports operating voltages of 24 V dc and 250 V ac, making it suitable for various low-power switching applications.
The rated contact current capacity is 400 mA, which is appropriate for low-power switching needs.
This model has a mechanical life of 100,000 operations, ensuring dependable performance over time.
The switch has dimensions of 36 mm in height, 14 mm in length, and 12 mm in width, making it compact for integration into control panels.
It requires a compact panel cutout size of 6.5 mm for mounting.
The actuator is constructed from durable brass material, ensuring long-term reliability and precise operation.
The operating temperature range is from -40°C to 85°C, allowing it to function reliably in harsh environments.
It features solder lug terminals, which facilitate solid and secure electrical connections.
This toggle switch complies with several standards including UL, RoHS, NFVDE, CSA, and CECC, ensuring quality and safety for industrial use.
It is ideal for use in industrial automation, electrical control panels, and manufacturing machinery, among other applications requiring reliable manual switching.
The switch is designed for panel mounting, ensuring secure installation in various applications.
