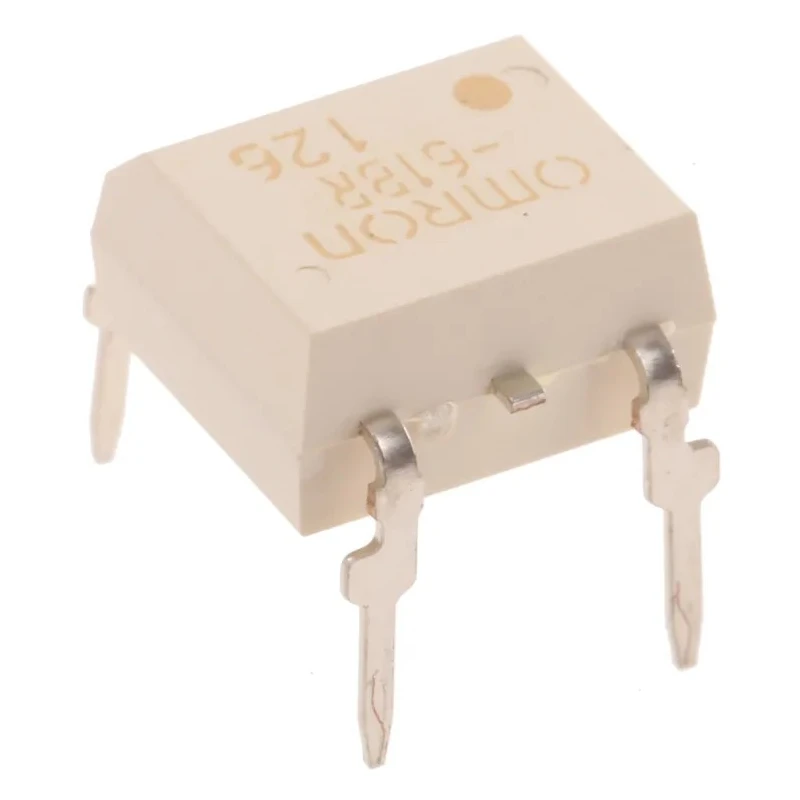

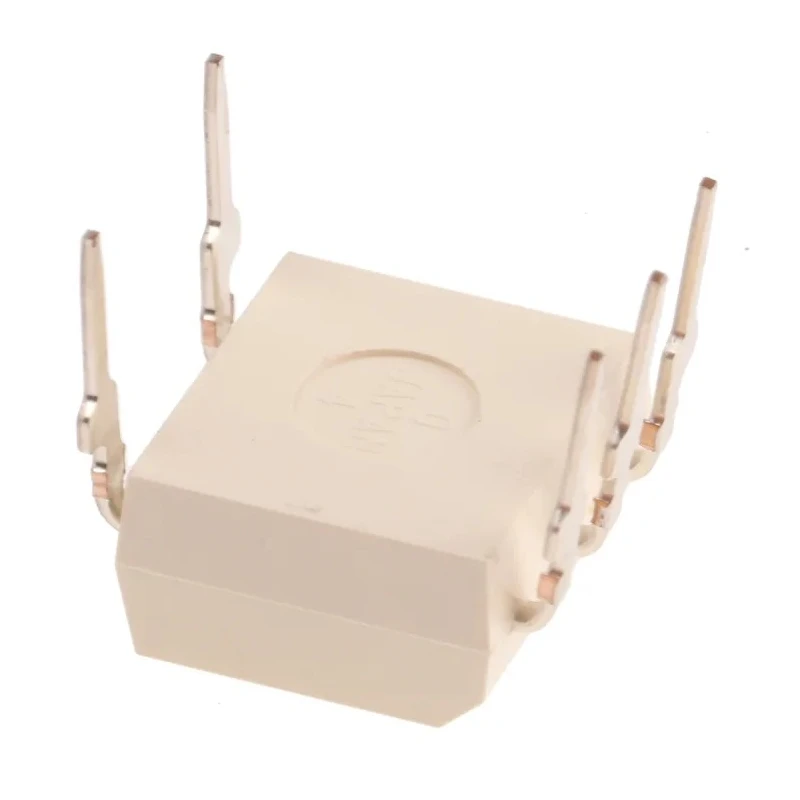

Omron Solid State Relay, 2.5 A Load, 60 V AC Load, Surface Mount, 1.5 V Control G3VM

Omron G3VM-61BR Solid State Relay is a high-performance MOSFET relay designed for reliable switching of analog signals in industrial and electronic applications. Featuring a 2.5 A maximum load current and 60 V AC maximum load voltage, this relay supports efficient and silent operation with no mechanical wear, ensuring long service life.

The G3VM-61BR utilizes a surface mount DIP-6 package with PCB terminals, facilitating easy integration into electronic circuits. Its single-pole single-throw normally open (SPST-NO) contact configuration provides dependable control.

Operating temperature ranges from -20°C to 85°C, making it suitable for challenging environments with stable performance. The relay offers a low on-resistance of 35 ohms, minimal leakage current, and low capacitance of 30 pF to maintain signal integrity during switching.

Additional features include a fast switching response with maximum turn on time of 1.5 ms and turn off time of 0.4 ms, along with a high dielectric strength of 2500 Vrms between input and output for electrical isolation and safety.

This SSR is RoHS compliant, assuring environmental safety. Excellent shock resistance ensures durability in industrial settings. Compact size allows for space-saving PCB designs.

Applications for the Omron G3VM-61BR include test and measurement equipment, security systems, telecom solutions including line seizing and hook switching, and other analog signal switching requirements in commercial and industrial electronics.

Choose the Omron G3VM-61BR for reliable, maintenance-free solid state relay performance in electronic control and automation projects. Explore the Electronics & Electricals category at EnvMart for more Solid State Relays and related components.
