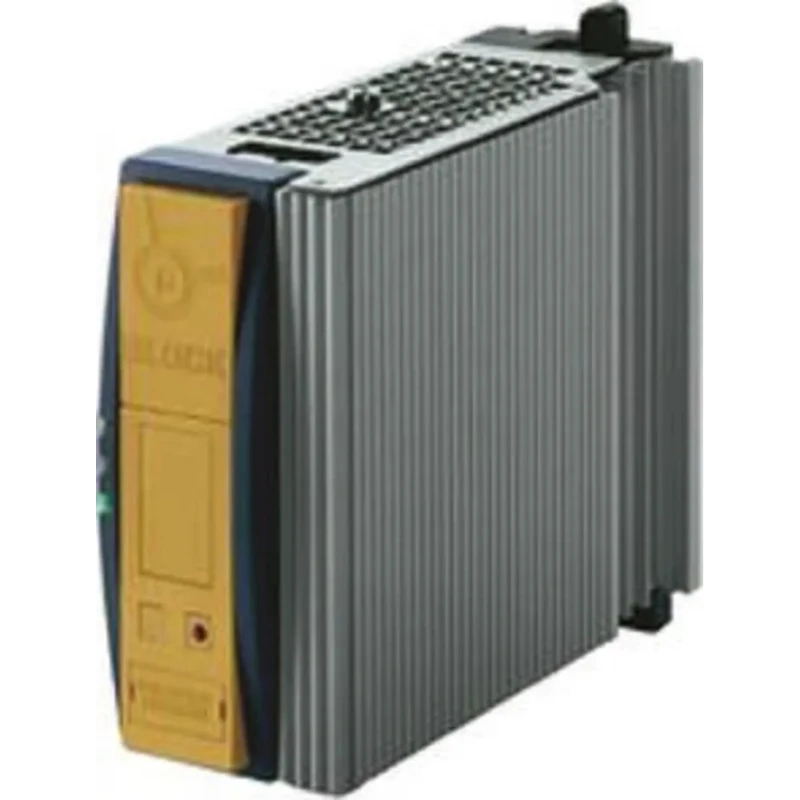

Block Switched Mode DIN Rail Power Supply 480W, 550V AC Input, 28.8V DC, 20A Output PVSL 400/24-20

Block PVSL 400/24-20 is a switched mode DIN rail power supply designed to deliver reliable and stabilized power to industrial and commercial electrical systems. With a maximum output voltage of 28.8V DC and an output current of 20A, this power supply provides an output power of 480W.

The unit accepts three-phase AC input voltage ranging from 340V to 550V AC, making it suitable for wide voltage fluctuations in industrial environments. It operates with a high efficiency rating of 90%, ensuring energy is used effectively with minimal losses.

Designed with compact dimensions of 77mm width, 127mm height, and 127mm depth, it easily mounts on standard DIN rails, saving valuable space in electrical panels. The device operates reliably within a temperature range of -10°C to 70°C, suitable for diverse industrial settings.

The PVSL 400 series incorporates advanced features such as a 200% peak power boost capability for durations of up to four seconds, accommodating high start-up currents from connected loads. It also features service-friendly spring-loaded connectors enabling quick wiring and maintenance without special tools.

This power supply is manufactured in Germany, reflecting robust quality standards and durability. It lacks hazardous area certification and does not include additional standards or approvals, focusing instead on delivering core power supply performance.

Block PVSL 400/24-20 is ideal for use in industrial automation, manufacturing equipment, power distribution systems, and other commercial electrical installations requiring reliable DIN rail mounted power supplies.

High efficiency of 90% ensures optimal energy use. Supports three-phase AC input with voltage range from 340V to 550V AC. Operates reliably in temperatures from -10°C to 70°C. Compact dimensions measuring 77mm width, 127mm height, and 127mm depth for easy DIN rail mounting.

Features a single output channel with stabilized and adjustable voltage. Designed and manufactured in Germany ensuring quality and durability. Includes service-friendly spring-loaded connectors for easy installation and maintenance.

Offers up to 200% real power boost for four seconds to handle start-up loads. Ideal for industrial and commercial electrical and electronic applications. Explore more power supply solutions in the Power Supplies category at EnvMart for your industrial and commercial projects.
