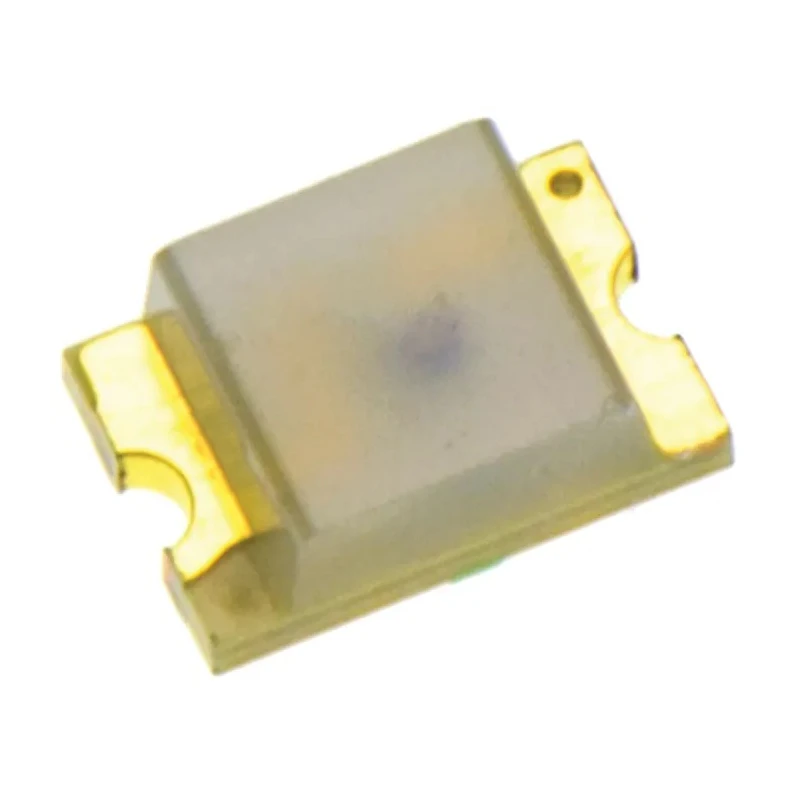

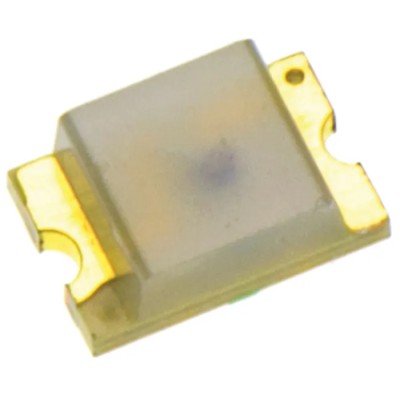

ams OSRAM 2.5 V Orange LED 2012 Surface CHIP LED 0805 LO R976-PS-1

ams OSRAM LO R976-PS-1 is a 2.5 V Orange LED in a 2012 surface mount package, part of the CHIP LED 0805 series. This compact, rectangular SMT LED offers high brightness and is ideal for optical indicators and display backlighting in electronic devices where space is constrained.

The LED provides a maximum forward current rating of 25 mA and a forward voltage of 2.5 V ensuring efficient operation. The clear lens with a dominant wavelength of 606 nm emits vibrant orange light with a high luminosity of 280 mcd and luminous flux of 0.52 lumens. The wide viewing angle of 160 degrees makes it suitable for wide-area illumination and signalling.

This component comes in tape and reel packaging, enhancing manufacturing automation compatibility. The surface mount design simplifies installation on printed circuit boards. Additionally, it complies with RoHS environmental standards.

ams OSRAM CHIP LED 0805 LEDs are known for their compact size of 2.0 x 1.25 x 0.8 mm and rectangular lens shape, providing versatility for various industrial, commercial, and consumer electronics applications such as display backlighting, optical indicators, floor marker lighting, and toys.

The orange LED is not specifically certified for automotive applications but can be used in general instrumentation and lighting applications requiring reliable visible indication.

The LED package size is 2.0 x 1.25 x 0.8 mm, conforming to the 2012 standard. Maximum forward current of 25 mA for optimal performance. High LED luminosity output of 280 mcd. Wide viewing angle of 160 degrees for effective illumination.

Surface mount package compatible with tape and reel automated assembly. Clear rectangular lens shape enhances light quality. RoHS compliant for environmental safety. Dominant wavelength at 606 nm producing intense orange light.
