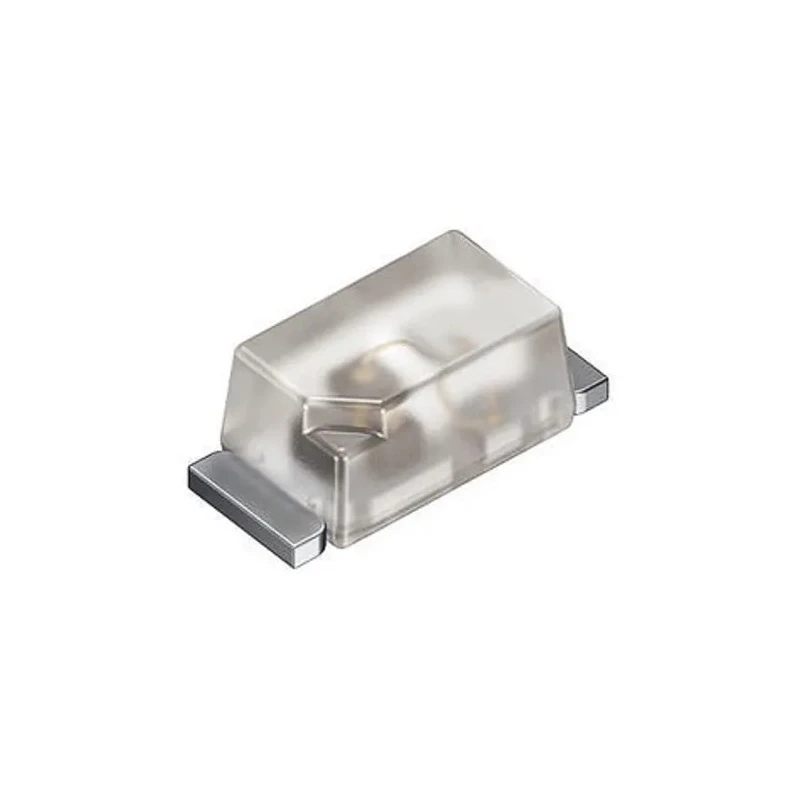

ams OSRAM 1.8 V Red LED 0603 Surface Mount SmartLED LS L29K-G1J2-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | ams OSRAM |
| Model | LS L29K-G1J2-1 |
| Mount Type | Surface |
| Series | SmartLED |
| Maximum forward current | 70mA |
| Viewing angle | 160 ° |
| Package Type | 0603 |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Forward Voltage | 1.8V |
| Number of Pins | 2 |
| LED Luminosity | 4.5 mcd |
| Maximum Power Dissipation | 190mW |
| Lens Dimensions | 1.7 x 0.8 x 0.65 mm |
| Lens Shape | Rectangular |
| LED Luminous Flux | 0.017 lm |
Key Features
- Operates at a forward voltage of 1.8 V for efficient power consumption.
- Maximum forward current rating of 70 mA ensures durability.
- Wide viewing angle of 160 degrees for broad illumination.
- Compact lens dimensions of 1.7 x 0.8 x 0.65 mm enable space-saving designs.
- Clear rectangular lens with dominant wavelength of 630 nm produces bright red light.
- Maximum power dissipation of 190 mW supports reliable operation.
- Surface mount package type 0603 facilitates automated PCB assembly.
- Complies with standards including RoHS, J-STD-020B, and IEC 60825-1.
Product Description
ams OSRAM LS L29K-G1J2-1 is a high-quality 1.8 V Red LED in a compact 0603 surface mount package, designed for industrial and commercial applications requiring reliable and bright light emission. This LED belongs to the SmartLED 0603 series from Osram Opto Semiconductors, tailored for outdoor displays, backlighting, signaling, and illumination uses.
The device operates efficiently with a maximum forward current of 70 mA and dissipates up to 190 mW of power. Its clear rectangular lens measuring 1.7 x 0.8 x 0.65 mm provides a wide viewing angle of 160 degrees, ensuring consistent and wide light dispersion. The LED produces a bright red light with a dominant wavelength of 630 nm and an LED luminosity of approximately 4.5 mcd, making it suitable for accurate color applications and signaling.
This component follows important industrial standards such as J-STD-020B, RoHS compliance, CECC 00802, IEC 60825-1, JEDEC Level 2, and JESD22-A114-D, ensuring safety and quality in manufacturing and usage.
The surface mount 0603 package type enables easy and efficient PCB mounting, ideal for mass automated production environments. The 2-pin design offers straightforward electrical connections, enhancing assembly efficiency in sectors such as electronics manufacturing, automotive lighting systems, and display technologies.
Operates at a forward voltage of 1.8 V for energy-efficient illumination. Maximum forward current of 70 mA guarantees device longevity. Wide 160° viewing angle for broad visibility and signaling. Compact 1.7 x 0.8 x 0.65 mm rectangular clear lens for tight PCB layouts.
Dominant wavelength of 630 nm provides clear red emission. Power dissipation up to 190 mW supports stable operation. Surface mount 0603 package suitable for automated manufacturing. Meets critical certifications including RoHS, IEC, and JEDEC.
SmartLED series designed for outdoor display and backlighting applications. Two-pin configuration for reliable connectivity.
This LED is ideal for use in electronics manufacturing, automotive signal lighting, industrial instrumentation, and various illumination applications requiring compact, bright, and reliable LEDs. Its inclusion in lighting assemblies improves visual signaling and enhances display clarity.
Explore more electronics components and LEDs from ams OSRAM at EnvMart for your industrial, manufacturing, and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this model is 1.8 V, which contributes to its efficient power consumption.
This LED has a maximum forward current rating of 70 mA, ensuring its durability during operation.
The lens dimensions of this unit are 1.7 x 0.8 x 0.65 mm, making it suitable for space-saving designs.
It features a wide viewing angle of 160 degrees, allowing for broad illumination.
The dominant wavelength of the emitted red light is 630 nm, which contributes to its bright red color.
This model supports a maximum power dissipation of 190 mW, which aids in reliable operation.
It is packaged in a surface mount type 0603, facilitating automated PCB assembly.
This LED has a 2-pin configuration, which allows for straightforward electrical connections.
The LED luminosity is approximately 4.5 mcd, making it suitable for accurate color applications and signaling.
It complies with several standards, including RoHS, J-STD-020B, and IEC 60825-1, ensuring safety and quality in its manufacturing.
This model is designed for industrial and commercial applications, including outdoor displays, backlighting, and signaling.
The country of origin for this LED is India.
