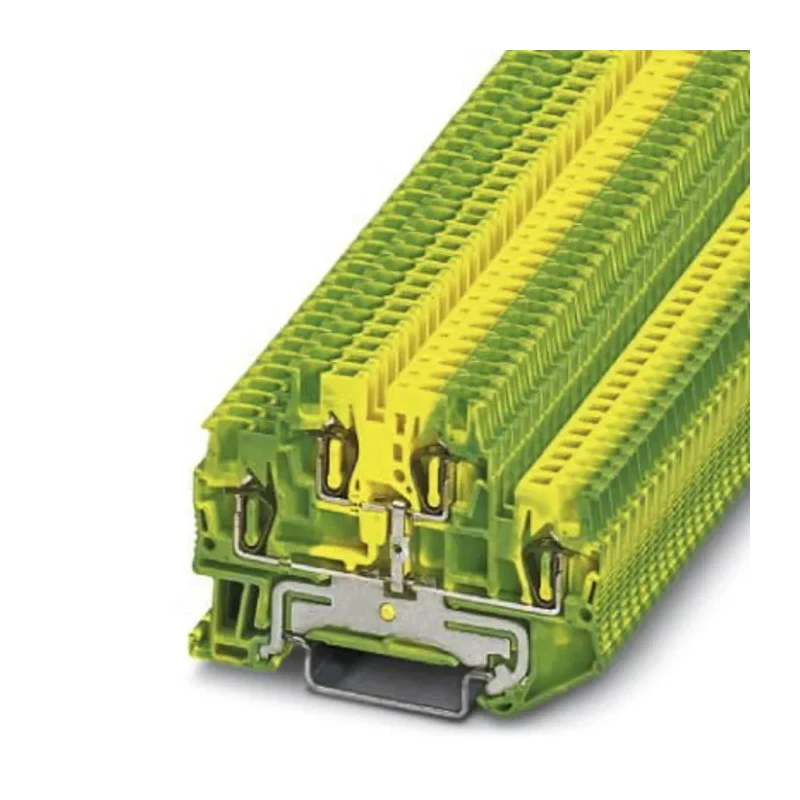

Phoenix Contact Double Level Terminal Block STTB 1.5-PE Series, 2-Level, Spring Cage, 0.08mm² to 1.5mm², 6kV 3036013

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Double Level Terminal Block STTB 1.5-PE Series, 2-Level, Spring Cage, 0.08mm² to 1.5mm², 6kV 3036013

Name: Phoenix Contact Double Level Terminal Block STTB 1.5-PE Series, 2-Level, Spring Cage, 0.08mm² to 1.5mm², 6kV 3036013
Brand: PHOENIX CONTACT
SKU: 343637
Price: 11.96 USD
Availability: InStock



Category DIN Rail Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	6kV
Brand	Phoenix Contact
Colour	Green, Yellow
Model	3036013
Series	STTB 1.5-PE
Termination Type	Spring Cage
Maximum Operating Temperature	105°C
Number of Levels	2
Minimum Operating Temperature	-60°C
Standards/Approvals	VDE, RS, PRD, NK, NEPSI, LR, KR, IECEX, IECEE CB, IEC 60947-7-2, EAC Ex, DNV, CSA, CCC, Bureau Veritas, ATEX
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	16AWG
Cable CSA	0.08, 1.5mm²
Cross-section	0.08mm² to 1.5mm²

Key Features

Compact double-level design with spring-cage connection technology.
Suitable for wire sizes AWG 28 to AWG 16 with 0.08mm² to 1.5mm² cross-section.
Mounts on NS 35/7.5 and NS 35/15 DIN rails for versatile use.
Operating temperature range from -60°C to 105°C for harsh environments.
Polyamide housing with plated copper contacts for durability.
ATEX EX certified for installation in potentially explosive areas.
Complies with IEC 60947-7-2 and other international standards.
Ideal for railway, machine building, process industries, and plant engineering.

Product Description

Phoenix Contact 3036013 STTB 1.5-PE Series double level terminal block features a compact and durable design for industrial electrical connections. This terminal block uses spring-cage technology, eliminating the need for screw tightening and enabling fast, reliable wire termination.

Successfully operating at a voltage rating of 6kV, and suitable for conductor cross-sections of 0.08mm² up to 1.5mm² (AWG 28 to AWG 16), it facilitates the connection of multiple conductors on two levels, optimizing space on DIN rails.

The device mounts easily onto standard NS 35/7.5 or NS 35/15 DIN rails, providing flexibility for various industrial applications. The polyamide housing paired with plated copper contacts ensures excellent electrical conductivity and mechanical strength.

Designed to withstand operating temperatures from -60°C to 105°C, this terminal block is suitable for demanding environments. Its ATEX EX certification allows installation in hazardous, potentially explosive areas, making it compliant with stringent safety standards.

Certified to IEC 60947-7-2 and endorsed by global standards including VDE, IECEX, CSA, and others, the terminal block meets quality and safety requirements for diverse industrial sectors.

Compact double-level design with spring-cage technology. Wire cross-section range from 0.08mm² to 1.5mm². Mounts on NS 35/7.5 and NS 35/15 DIN rails. Operating temperature range: -60°C to 105°C. ATEX EX certified for explosive areas.

Polyamide housing with plated copper contacts. Complies with IEC 60947-7-2 and multiple international standards. Applications include railway systems, machine building, process and plant engineering.

This Phoenix Contact STTB 1.5-PE terminal block series is ideal for use in industrial automation, electrical cabinets, control systems, and other heavy-duty electrical installations. It facilitates reliable, maintenance-free connections essential for safe and efficient operation.
