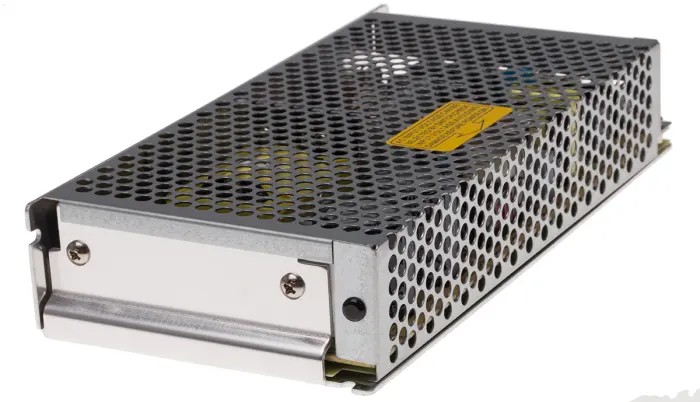

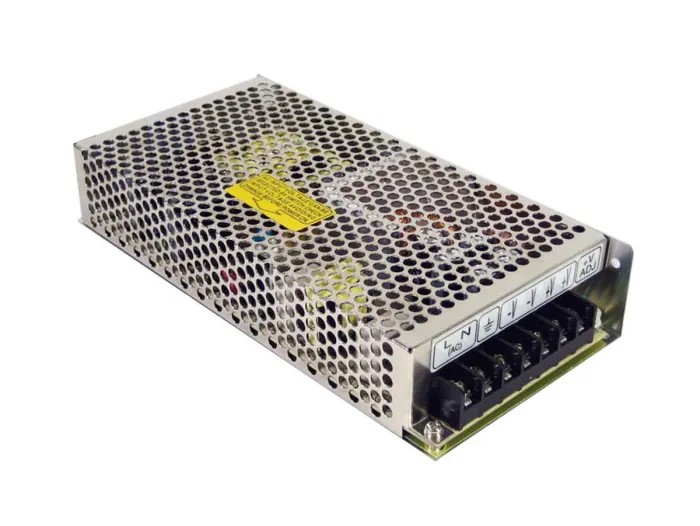

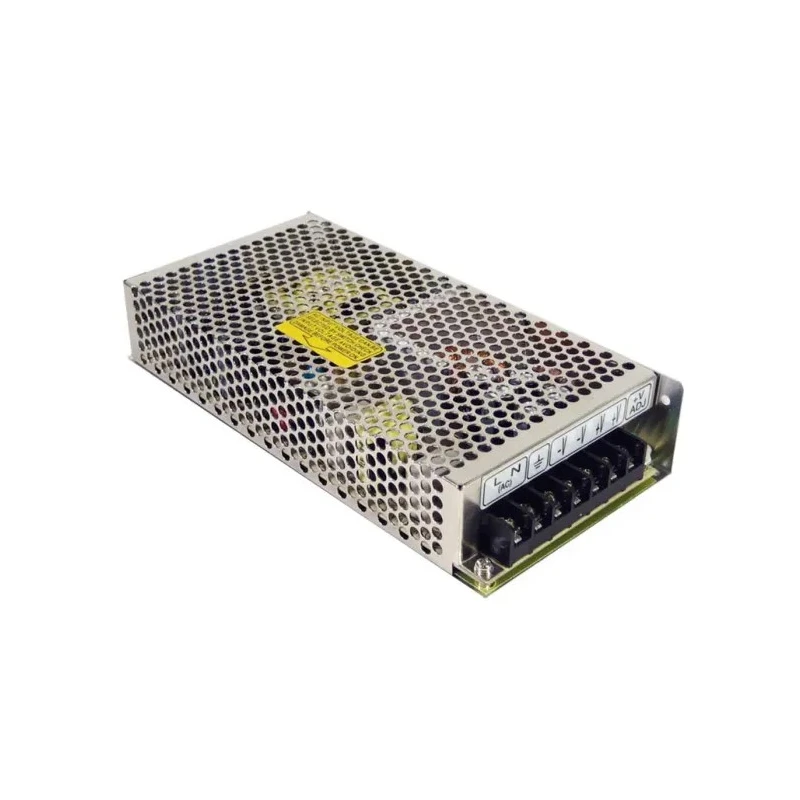

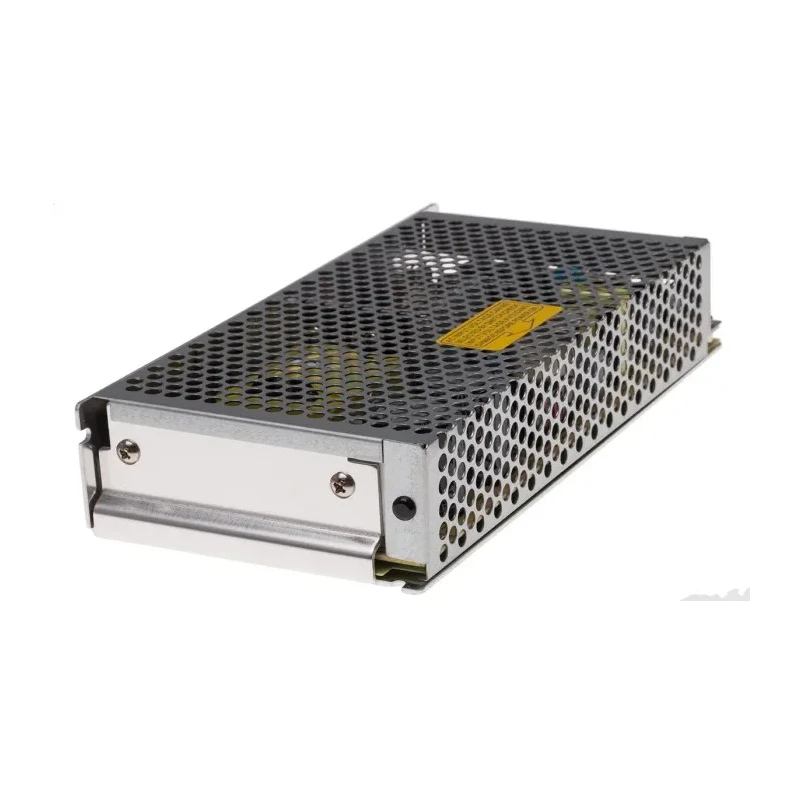

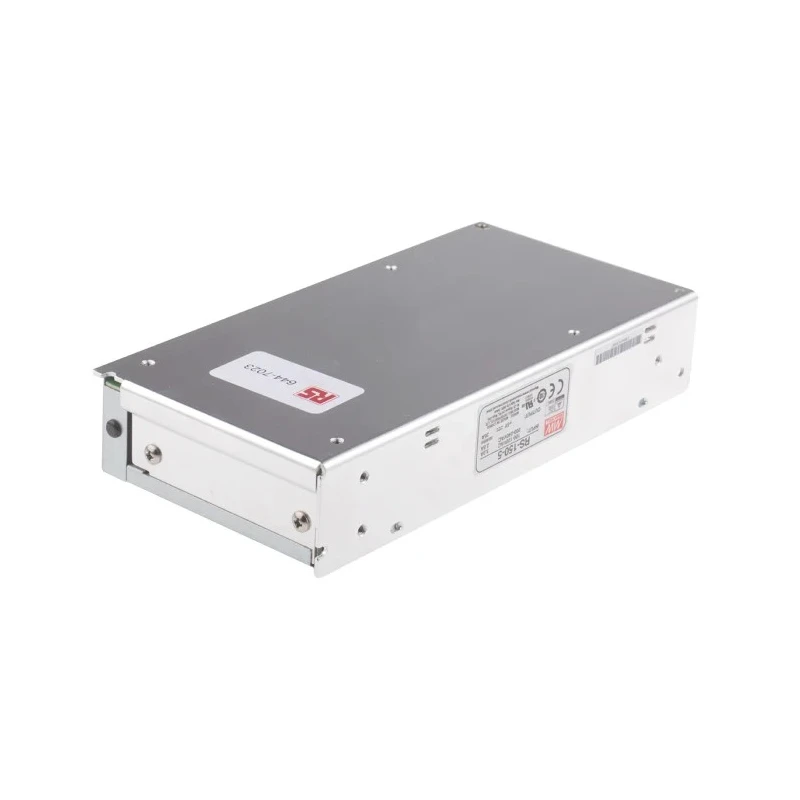

MEAN WELL Switching Power Supply 5V DC 130W Chassis Mount RS-150-5

MEAN WELL RS-150-5 Switching Power Supply is a high-quality 130W chassis-mounted power supply delivering 5V DC output at 26A. It operates within a wide AC input voltage range of 88VAC to 264VAC and DC voltage from 248VDC to 373VDC, ensuring global compatibility. Suitable for industrial electronics, control panels, and embedded systems, it features a compact 199mm length and 38mm width and depth with a robust chassis mount design.

Engineered for durability, the power supply can operate continuously at temperatures from -25°C to 70°C, with built-in overload, overvoltage, and short circuit protections to guarantee safety and reliability. It achieves an efficiency rating of up to 78%, reducing energy consumption and heat generation. The unit includes a power-on LED indicator and utilizes long-life electrolytic capacitors rated for 105°C, enhancing lifespan and stability. Cooling is achieved through free air convection without the need for fans.

This power supply is compliant with numerous international certifications, including EAC TP TC 00, AS/NZS62368.1, BSMI CNS143361, CCCGB4943.1, CSA C22.2 No. 62368-1, IS 13252 (Part1)/IEC 60950-1, TUV BS EN/EN 62368-1, and UL 62368-1, ensuring compatibility with global regulatory requirements.

Typical applications include industrial automation, embedded systems, instrumentation, and telecommunications where stable and efficient DC power is critical. Its sturdy chassis mount along with robust protection features makes it suitable for harsh industrial environments. The product is manufactured in China.

Provides a single output voltage of 5V DC at 26A current. Supports wide input voltage range with universal AC input. Operates reliably between -25°C and 70°C operating temperatures. Features high efficiency of up to 78% for energy savings.

Compact chassis mount design with dimensions 199mm x 38mm x 38mm. Includes built-in protections like short circuit, overload, and overvoltage safeguards. Power-on LED indicator for easy status monitoring. Designed for use in industrial and electronic applications requiring stable DC power.

Complies with multiple international safety and EMC standards. Explore more power supplies and related electronic components on EnvMart for robust, reliable solutions.
