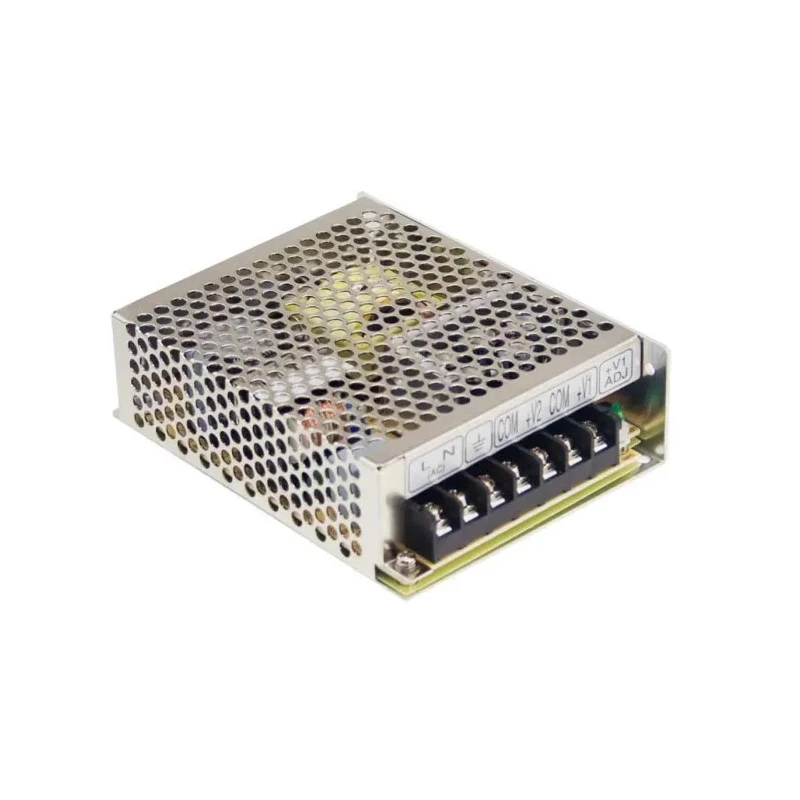

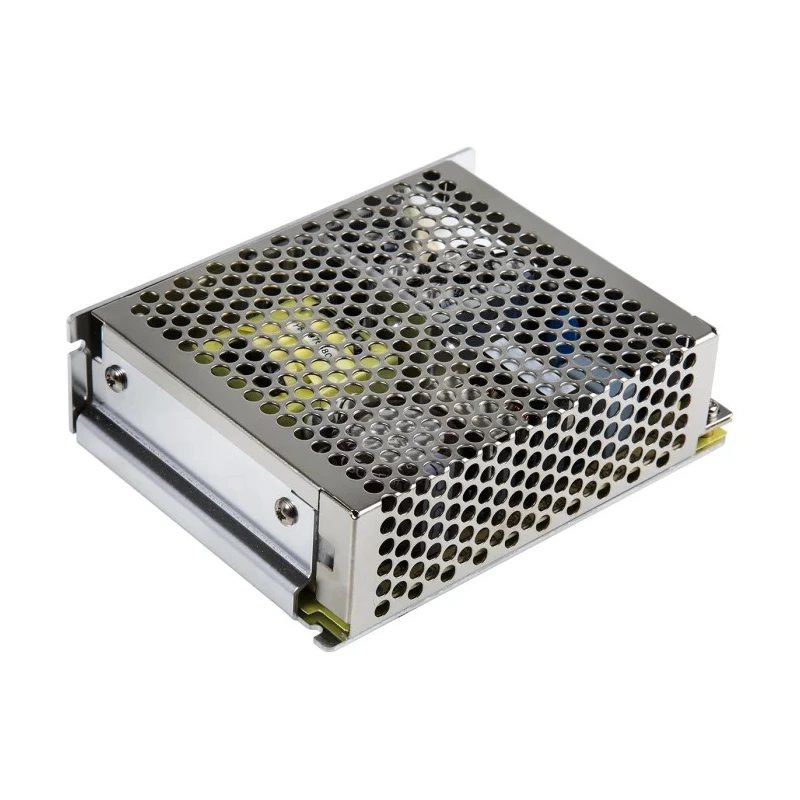

MEAN WELL RS-75-3.3 Switching Power Supply 3.3V DC 49.5W 15A Chassis Mount RS-75-3.3

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL RS-75-3.3 Switching Power Supply 3.3V DC 49.5W 15A Chassis Mount RS-75-3.3

Name: MEAN WELL RS-75-3.3 Switching Power Supply 3.3V DC 49.5W 15A Chassis Mount RS-75-3.3
Brand: MEAN WELL
SKU: 343585
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	49.5W
Efficiency	75%
Length	129mm
Model	RS-75-3.3
Depth	38mm
Gross Weight	410g
Width	38mm
Mount Type	Chassis
Series	RS-75
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Maximum Output Voltage	3.3V dc
SMPS Output Current	15A
Minimum Input Voltage	88V ac

Key Features

Single output with 15A maximum current capacity.
Chassis mount type ensuring robust installation.
Wide operating temperature range from -25°C to 70°C.
High efficiency of 75% increases energy savings.
Compact dimensions with 129mm length and 38mm width and depth.
Supports universal input voltage up to 370V DC and 264V AC minimum input 88V AC.
Complies with multiple international standards including UL, TUV, and CSA certifications.
Designed with long-life 105°C electrolytic capacitors.

Product Description

MEAN WELL RS-75-3.3 switching power supply is designed to provide stable 3.3V DC voltage output at a power rating of 49.5 watts. This chassis-mounted unit supports industrial and electronic equipment applications requiring reliable power delivery.

It features a single output channel capable of delivering up to 15 amperes current, suitable for medium power demand devices. The compact size with dimensions 129mm in length, 38mm width, and 38mm depth makes it a space-efficient solution for embedded systems.

Operating within a temperature range of -25°C to 70°C, it ensures consistent performance even under varied environmental conditions. The unit's efficiency rating of 75% optimizes power consumption, reducing operational costs.

This switching power supply accommodates universal input voltages, from 88 VAC to a maximum of 370 VDC/264 VAC, making it adaptable to different power environments globally. It is compliant with a wide spectrum of international safety and EMC standards such as UL 62368-1, TUV BS EN/EN 62368-1, and CSA C22.2 No. 62368-1, guaranteeing safety and compatibility.

Additional features include adjustable output voltage in specific variants, harmonic current compliance according to EN 61000-3-2, and built-in protection against short circuit, overload, and overvoltage conditions. The construction integrates long-life electrolytic capacitors rated at 105°C to enhance durability and reliability.

Ideal for use in industrial machines, electronic components, and power distribution systems, this MEAN WELL RS-75-3.3 switching power supply is a trusted choice for demanding power supply applications.

Single output with 15A current capacity. High efficiency of 75% for energy savings. Robust chassis mount design. Wide universal input voltage range. Extended operating temperature from -25°C to 70°C. Meets multiple international certifications and standards.

Includes comprehensive protection features. Compact and miniature form factor for easy integration. Long-life electrolytic capacitors rated 105°C. Harmonic current compliant to EN 61000-3-2. Discover more high-quality MEAN WELL power supplies and related electronics components in the EnvMart catalog for reliable industrial and commercial solutions.
