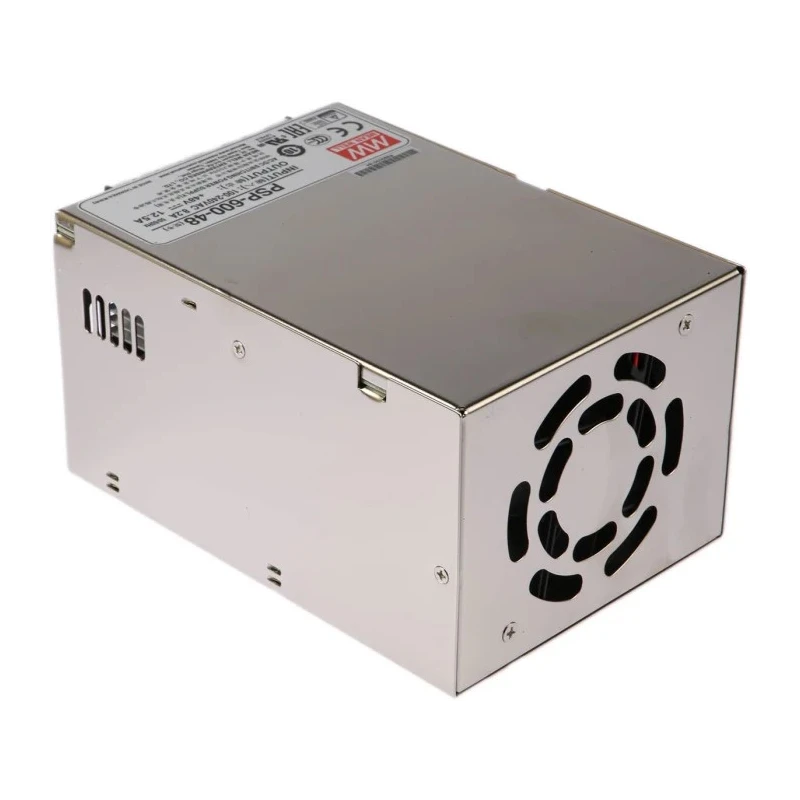

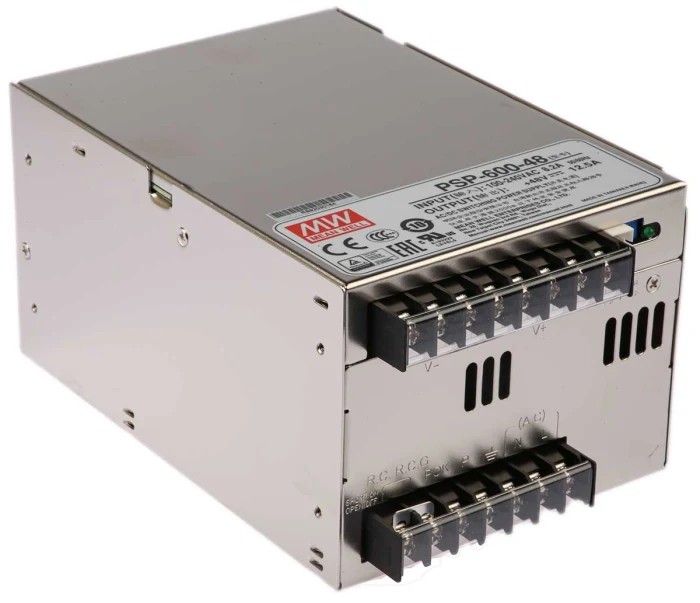

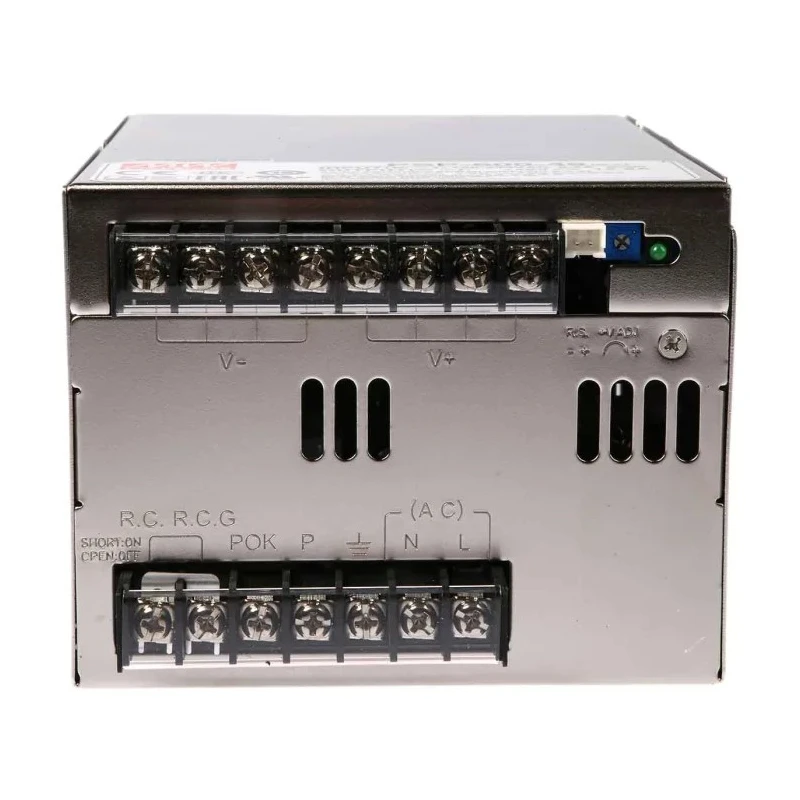

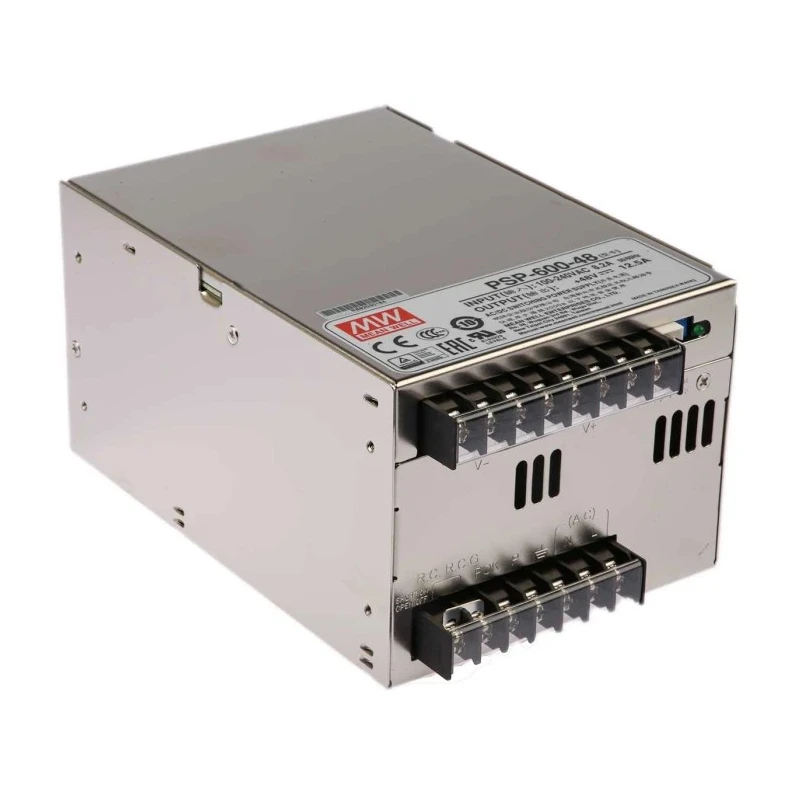

MEAN WELL PSP-600-48 Switching Power Supply 48V DC 600W Universal Input Chassis Mount PSP-600 Series

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL PSP-600-48 Switching Power Supply 48V DC 600W Universal Input Chassis Mount PSP-600 Series

Name: MEAN WELL PSP-600-48 Switching Power Supply 48V DC 600W Universal Input Chassis Mount PSP-600 Series
Brand: MEAN WELL
SKU: 343564
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	Taiwan
Brand	MEAN WELL
Power	600W
Efficiency	87%
Length	170mm
Model	PSP-600-48
Depth	93mm
Gross Weight	1.9kg
Width	93mm
Mount Type	Chassis
Series	PSP-600
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Maximum Output Voltage	48V dc
SMPS Output Current	12.5A
Minimum Input Voltage	88V ac

Key Features

Equipped with a universal input voltage range from 88VAC to 264VAC and 124VDC to 370VDC.
Chassis mount design ensures sturdy and easy installation.
High efficiency up to 87% reduces energy consumption.
Built-in cooling fan with speed control enhances thermal management.
Offers adjustable output voltage within ±10% for precise power control.
Current sharing capability up to 2400W supports parallel operation.
Includes overload, overvoltage, and over temperature protection for safety.
Remote ON-OFF control and remote sense functionality enhance usability.

Product Description

MEAN WELL PSP-600-48 is a 600W single output AC to DC switch mode power supply producing a stable 48V DC output with a rated current of 12.5A. It accepts a universal input voltage ranging from 88VAC to 264VAC and 124VDC to 370VDC, making it suitable for diverse industrial and commercial applications.

This PSP-600 series power supply is designed for chassis mounting, providing a robust and secure installation option. It features a built-in fan with speed control to ensure effective cooling and prolong the device lifespan.

The device offers adjustable output voltage with a ±10% range, ensuring precise voltage regulation to meet various equipment requirements. Current sharing up to 2400W (with 3+1 parallel configuration) allows for scalable power solutions.

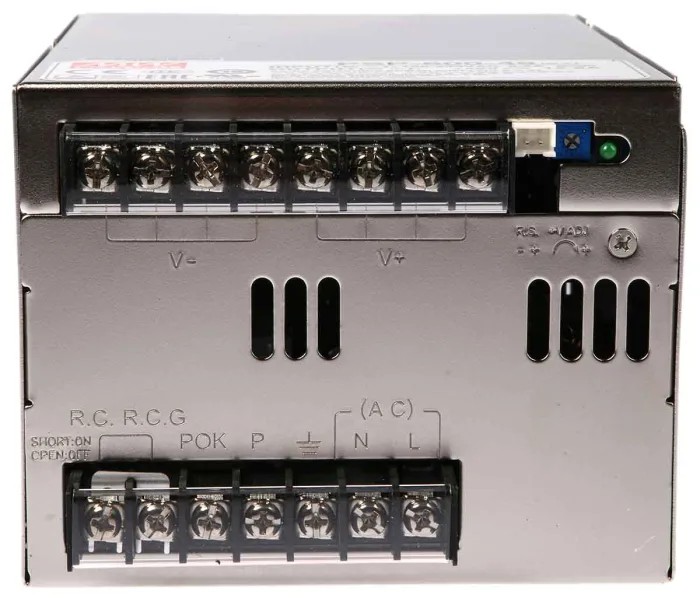

Safety is well addressed with overload, overvoltage, and over temperature protections. Remote ON-OFF control and remote sense capabilities provide enhanced operational flexibility. The power supply also incorporates screw terminals for secure wiring connections and an LED indicator for power status.

Certified to international standards including CSA C22.2 No. 62368-1, UL 62368-1, TUV EN 62368-1, AS/NZS 62368.1, and EMC standards such as EN 55022 Class B, this product ensures compliance with global safety and performance requirements.

Universal input voltage range 88VAC to 264VAC / 124VDC to 370VDC. Output power rating of 600W at 48V DC and 12.5A output current. Adjustable output voltage ±10% for adaptable power supply needs. Built-in fan with speed control for optimized thermal management.

Overload, overvoltage, and over temperature protections ensure safe operation. Remote ON-OFF and remote sense functionalities. Compact chassis mount design with dimensions 170 x 93 x 93 mm. Weight approximately 1.9 kg. High efficiency up to 87% reduces energy loss.

Suitable for industrial, commercial, automation, and HVAC applications.

This product is manufactured in Taiwan (Province Of China) and is classified as new condition. MEAN WELL’s PSP-600-48 series provides dependable power supply solutions for a wide range of demanding environments and applications. Browse the power supplies category on EnvMart to explore more quality electronic components.
