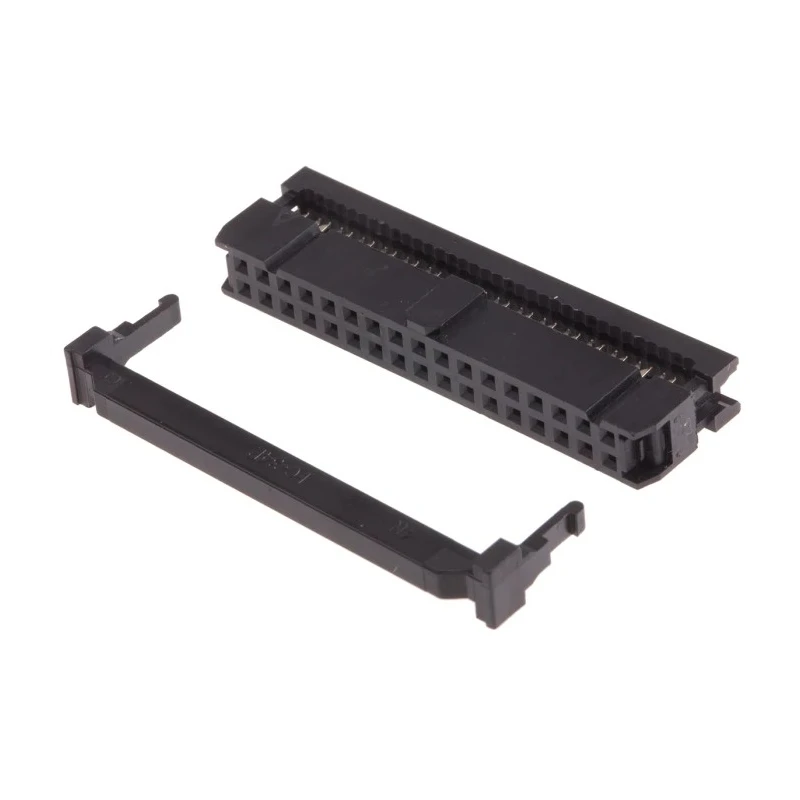

RS PRO 34-Way IDC Connector Female for Cable 2 Row 500V DC 1A Right Angle Phosphor Bronze Contacts 642-4985

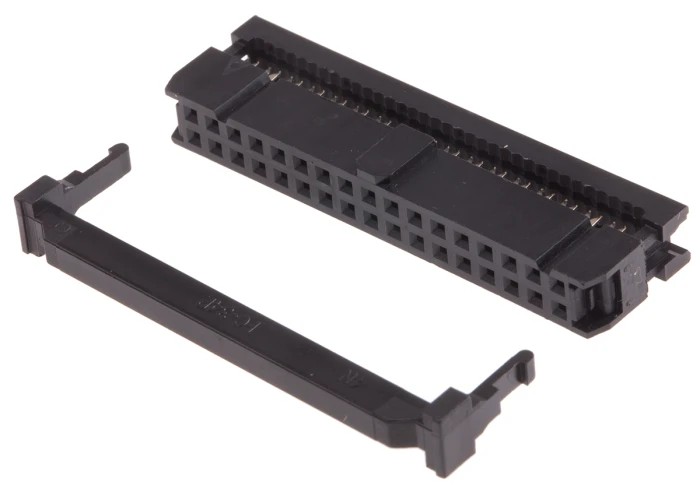

RS PRO 642-4985 34-Way IDC Connector Female for Cable 2 Row is a high-quality electronic connector designed for cable mounting applications requiring robust and reliable signal transmission. It supports a voltage rating of 500V DC and current capacity of 1A, making it suitable for various industrial, manufacturing, and electronics assembly use cases.

The connector features 34 individual contacts arranged in two rows at a 2.54mm pitch, providing a dense and efficient layout for PCB connections. The contacts are right angle and female type, plated with 0.8μm gold over nickel to offer excellent corrosion resistance and electrical conductivity. The contacts are made from phosphor bronze, ensuring mechanical strength and longevity.

The housing is made from fibreglass reinforced polybutylene terephthalate, granting durable mechanical protection against physical stresses and temperature variations ranging from -40°C to 105°C. The connector employs IDC termination technology, allowing quick and reliable cable assembly without soldering, which is preferred in high-volume manufacturing environments.

This product is unshrouded, which means it does not have an additional protective shell around the connector, making it suitable for environments where space is limited and easy access is needed. It also features cable strain relief for secure and stable cable retention during use.

Common applications include industrial electronics interconnection, automotive wiring harnesses, manufacturing equipment, telecommunications, and other commercial electronic assemblies requiring reliable IDC connectors.

Complementary tooling such as the bench press adaptor kit (RS Stock No. 254-850) and related stock no.s 426-3160 and 426-3198 are recommended for optimal installation performance. Rated 500V DC voltage and 1A current for diverse electronics needs.

Gold over nickel phosphor bronze contacts deliver enhanced durability. Fibreglass reinforced polybutylene terephthalate housing for mechanical stability. Unshrouded, right angle 2-row female connector configuration. Wide operating temperature range for industrial application reliability.

Termination type: Insulation Displacement Contact (IDC). Compatible with standard Speedbloc headers and cable plugs. Cable strain relief improves connection stability under mechanical stress. Manufactured in China with strict quality standards.

Meets IDC standards for consistent performance. Explore additional RS PRO and IDC Connector solutions on EnvMart for your electronic component needs.
