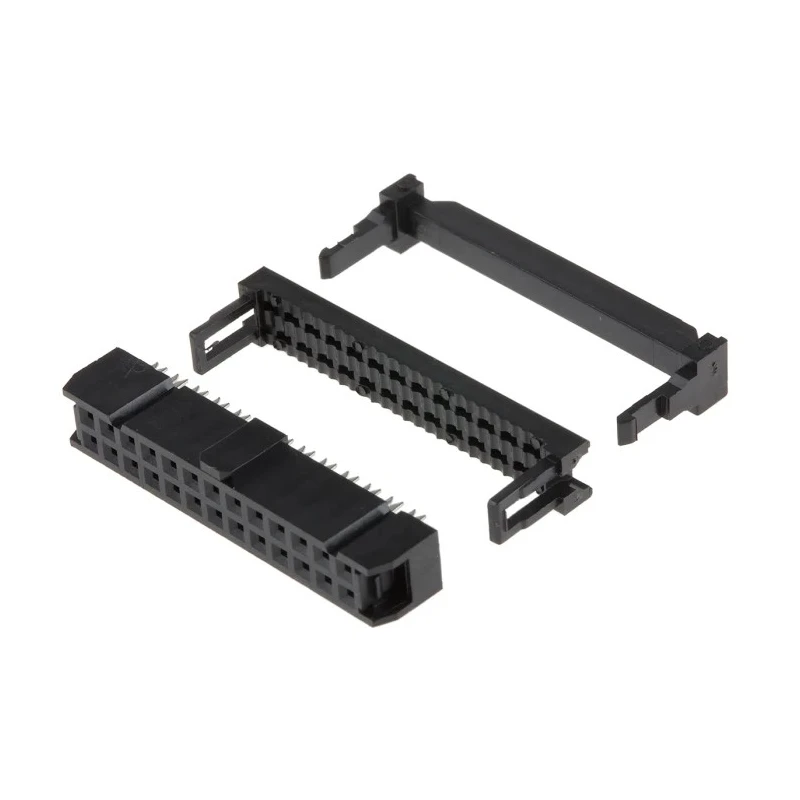

RS PRO 26-Way IDC Connector Female for Cable Mount, 2 Row, 500V DC, 1A Current 642-4935

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 26-Way IDC Connector Female for Cable Mount, 2 Row, 500V DC, 1A Current 642-4935

Name: RS PRO 26-Way IDC Connector Female for Cable Mount, 2 Row, 500V DC, 1A Current 642-4935
Brand: RS PRO
SKU: 343512
Price: 20.22 USD
Availability: InStock



Category IDC Connector Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	500V dc
Brand	RS PRO
Orientation	Right Angle
Current	1A
Model	642-4935
Mount Type	Cable
Housing Material	Fibreglass Reinforced Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	26
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Unshrouded
8888 26-Way IDC Connector Socket for Cable Mount, 2-RowBrand	NEUTRAL

Key Features

Suitable for cable mounting applications in electronic assemblies.
Features 26 contacts arranged in 2 rows with a 2.54 mm pitch.
Connector body is right-angled with female gender.
Contact plating uses Gold over Nickel for enhanced conductivity and corrosion resistance.
Housing made from fiberglass reinforced polybutylene terephthalate for durability.
Operates reliably over a temperature range from -40°C to 105°C.
Termination method is insulation-displacement contact (IDC) for quick and secure wire connections.
Phosphor bronze contact material ensures mechanical strength and electrical performance.

Product Description

RS PRO 642-4935 IDC Connector is a female, 26-way insulation-displacement contact connector designed for cable mounting applications. With a robust design and rated for 500V DC and 1 amp current, this connector is ideal for electronics and electrical assemblies where multiple terminal points are required without the need to strip, solder, or crimp wires.

The connector features a right-angle orientation and a precise 2.54 mm pitch across two rows of contacts ensuring compact and reliable connectivity. The contacts are made from phosphor bronze and plated with gold over nickel, providing excellent conductivity and corrosion resistance for long-term durability.

The housing is constructed from fiberglass reinforced polybutylene terephthalate (PBT), offering high mechanical strength and resistance to industrial environments. Its insulating properties allow safe operation between -40°C and +105°C, suitable for demanding conditions.

The IDC termination method uses sharp blades that penetrate wire insulation, creating air-tight and durable connections without soldering. This makes installation efficient and reliable, ideal for applications including industrial machinery wiring, test and diagnostic setups, and other electronic system integrations.

This connector is unshrouded to facilitate easy cable access, and its strain relief design enhances connection lifespan in high-stress environments. Manufactured in China, the product meets quality standards but has no additional certifications listed.

Suitable for cable mounting with 26 contacts in two rows. Right angle body orientation for space-saving installation. Gold over nickel plated phosphor bronze contacts for reliable electrical performance. Fiberglass reinforced PBT housing ensures durability.

IDC termination enables quick and secure wire connections. Operating temperature range from -40°C up to 105°C. Explore more industrial-grade connectors and electronic components in the Connectors category at EnvMart to find complementary products for your electronic system requirements.
