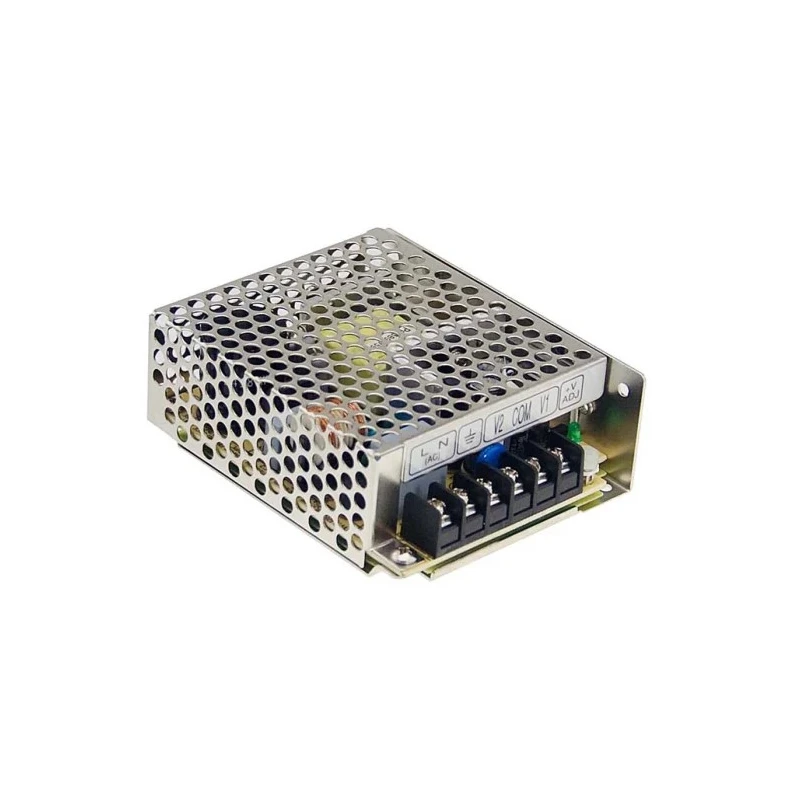

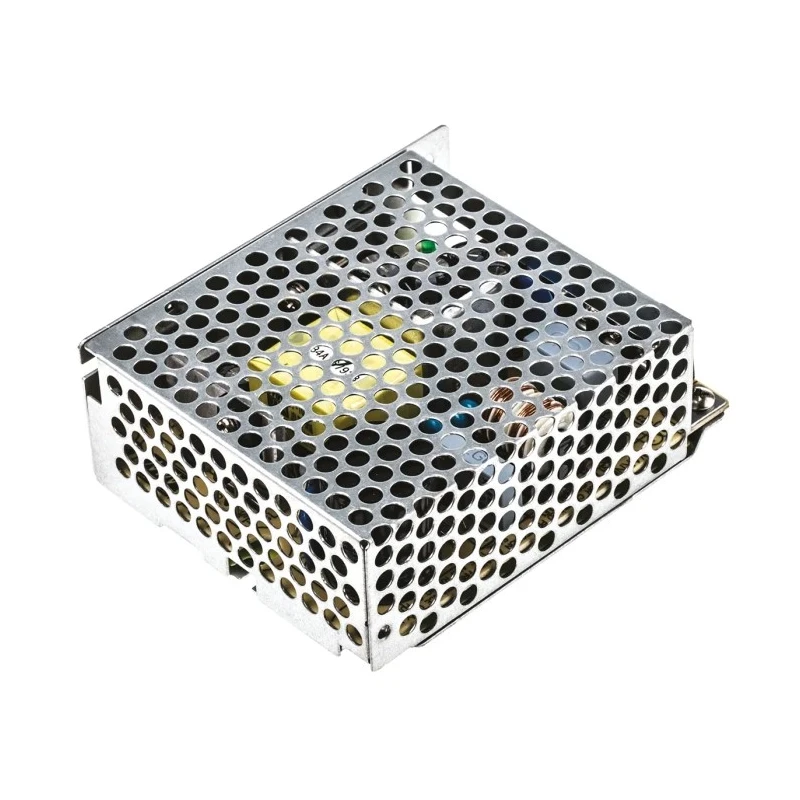

MEAN WELL RD-35A Switching Power Supply Dual Output 12V DC 32W 370V DC 264V AC RD-35A

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL RD-35A Switching Power Supply Dual Output 12V DC 32W 370V DC 264V AC RD-35A

Name: MEAN WELL RD-35A Switching Power Supply Dual Output 12V DC 32W 370V DC 264V AC RD-35A
Brand: MEAN WELL
SKU: 343503
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	32W
Efficiency	79%
Length	99mm
Model	RD-35A
Depth	36mm
Gross Weight	300g
Width	36mm
Mount Type	Chassis
Series	RD
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Number of outputs	2
Maximum Input Voltage	370, 264V dc
Maximum Output Voltage	12V dc
SMPS Output Current	4A
Minimum Input Voltage	88V ac

Key Features

Dual output provides 5V DC at 4A and 12V DC at 1A current output.
Compact chassis mount form factor with dimensions 99mm x 36mm x 36mm.
High operating temperature range from -25°C to 70°C for versatile environments.
High efficiency of 79% ensures energy saving during operation.
Short circuit, overload and overvoltage protections enhance device reliability.
Long life electrolytic capacitors rated at 105°C provide durability.
Meets multiple international standards including UL 62368-1, TUV EN 62368-1, and CCC GB4943.1.
Adjustable output voltage on output 1 from -5% to 10% for fine tuning.

Product Description

MEAN WELL RD-35A is a compact, high-reliability enclosed switching power supply providing dual DC outputs with a total power rating of 32W. It supports a universal input voltage range from 88VAC to 264VAC and 125VDC to 373VDC, suitable for various industrial and commercial applications.

This chassis mount power supply features a 5V output at 4A and a 12V output at 1A, suitable for powering control circuits, instrumentation, and industrial automation devices. The device operates efficiently at 79% efficiency, maintaining performance under temperatures ranging from minus 25°C to plus 70°C, making it appropriate for harsh environments.

The RD-35A series includes protective functions such as overload, short circuit, and overvoltage protections to safeguard connected equipment. The inclusion of long-life electrolytic capacitors rated for operation at 105°C enhances product longevity.

Dimensionally, the unit is compact (99mm length, 36mm width, and 36mm depth) and weighs 300g, providing a miniature size with high power density. Installation is facilitated with easy-access screw terminals.

Compliance with certifications and approvals like UL 62368-1, TUV EN 62368-1, CCC GB4943.1, and others confirms the product's suitability for global industrial standards. Dual output 5V at 4A and 12V at 1A current. Wide input voltage range for AC and DC supply compatibility.

Robust protective circuitry including overload and short circuit protection. High efficiency and high temperature operation capability. Compact mounting chassis for space-saving applications. Long-life components increasing operational reliability.

Multiple international safety and EMC certifications. Adjustable voltage output for output 1. Suitable for industrial, commercial, and electrical equipment applications.

The MEAN WELL RD-35A switching power supply is ideal for use in industrial automation, communications, control systems, and power supply applications requiring reliable dual voltage DC outputs. Browse more power supplies and industrial power solutions in EnvMart's Electronics & Electricals category.
