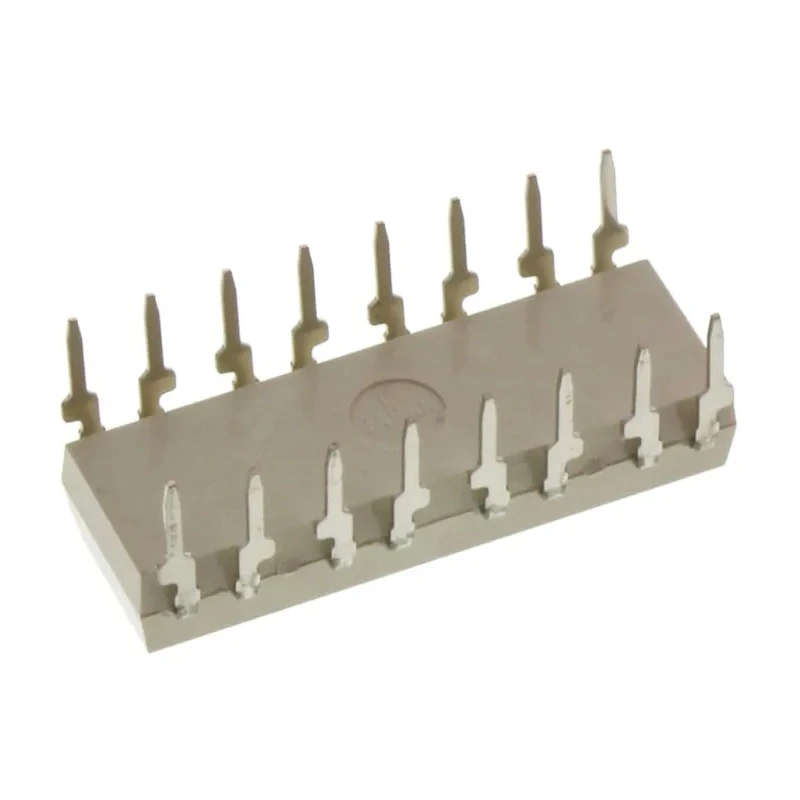

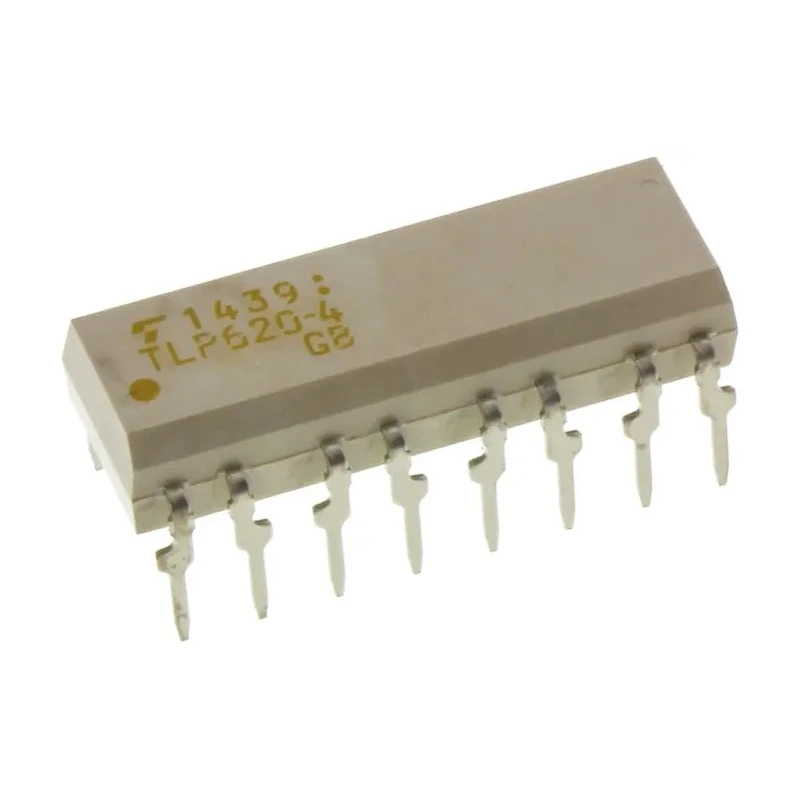

Toshiba AC Input 4-Channel Optocoupler Through Hole 16-Pin PDIP TLP620-4(F)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Model | TLP620-4(F) |
| Mount Type | Through Hole |
| Series | TLP |
| Maximum Operating Temperature | 100°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 50mA |
| Number Of Channels | 4 |
| Standards/Approvals | EN, CSA, UL |
| Maximum Forward Voltage | 1.3V |
| Number of Pins | 16 |
| Input Current Type | AC |
| Typical Rise Time | 2μs |
| Maximum Current Transfer Ratio | 600% |
| Typical Fall Time | 3μs |
| Minimum Current Transfer Ratio | 50% |
Key Features
- Features a 4-channel AC input suitable for bipolar input currents.
- Constructed in a 16-pin PDIP through-hole package for easy PCB mounting.
- Maximum forward voltage of 1.3 volts ensures efficient LED operation.
- Typical rise and fall times of 2μs and 3μs respectively deliver fast signal response.
- Maximum input current rating of 50 mA and operating temperature range from -55°C to 100°C.
- High current transfer ratio ranging between 50% minimum to 600% maximum.
- Isolation voltage rated at 5 kV rms for electrical safety and noise immunity.
- Compliant with EN, CSA, and UL standards, confirming reliable quality and safety.
Product Description
Toshiba TLP620-4(F) is an AC input 4-channel optocoupler featuring transistor output and designed for through-hole mounting in a 16-pin PDIP package. It incorporates dual inverse parallel connected LEDs enabling it to accurately handle bipolar input currents for AC input applications.
The device provides high electrical isolation with a 5 kV rms isolation voltage, making it ideal for protecting sensitive electronic components in industrial, laboratory, automotive, and control system environments.
Its maximum forward voltage is 1.3 V, with a maximum input current of 50 mA, supporting a broad operating temperature from -55°C to 100°C. The typical response times are 2 microseconds rise time and 3 microseconds fall time, enabling fast switching performance for signal isolation.
The TLP620-4(F) optocoupler offers a wide current transfer ratio from 50% minimum to 600% maximum, ensuring flexible application in various circuit designs requiring efficient signal coupling without direct electrical connection.
Certified under EN, CSA, and UL standards, this optocoupler assures compliance with international safety and quality requirements. It does not meet automotive standard certification.
Four AC input channels support bipolar signal processing. 16-pin PDIP through-hole package for robustness and ease of integration. Fast switching with microsecond-scale response times. High isolation voltage enhances device and system safety.
Wide operating temperature range suitable for diverse industrial environments. Reliable compliance with key international standards.
This product is commonly used in electronic components manufacturing, power electronics, industrial control units, HVAC systems, and laboratory equipment for signal isolation and noise immunity.
Explore more Toshiba Optocouplers and related electronic components in the Electronics & Electricals category on EnvMart.
