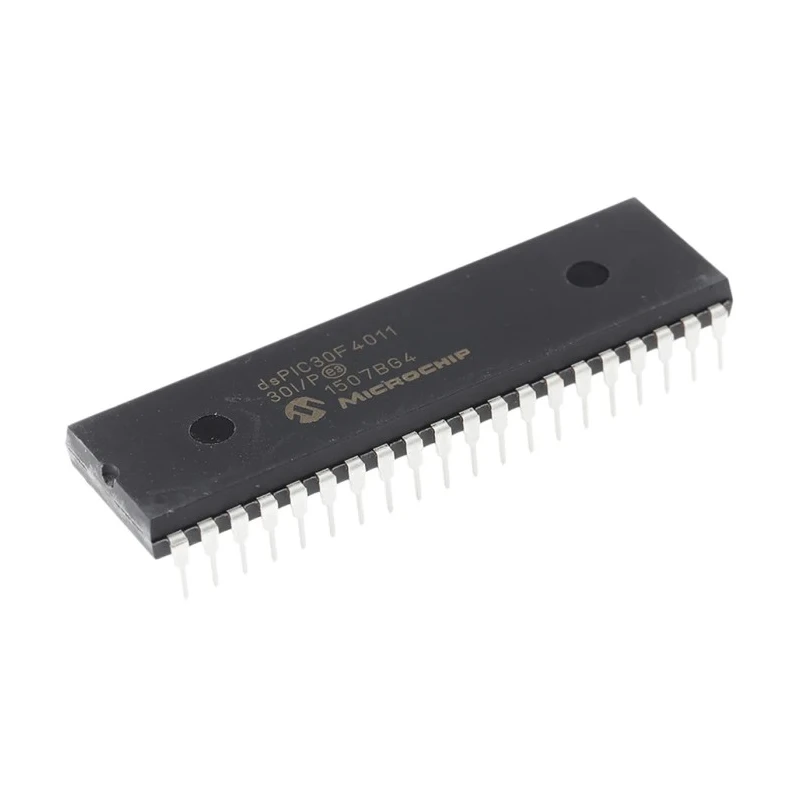

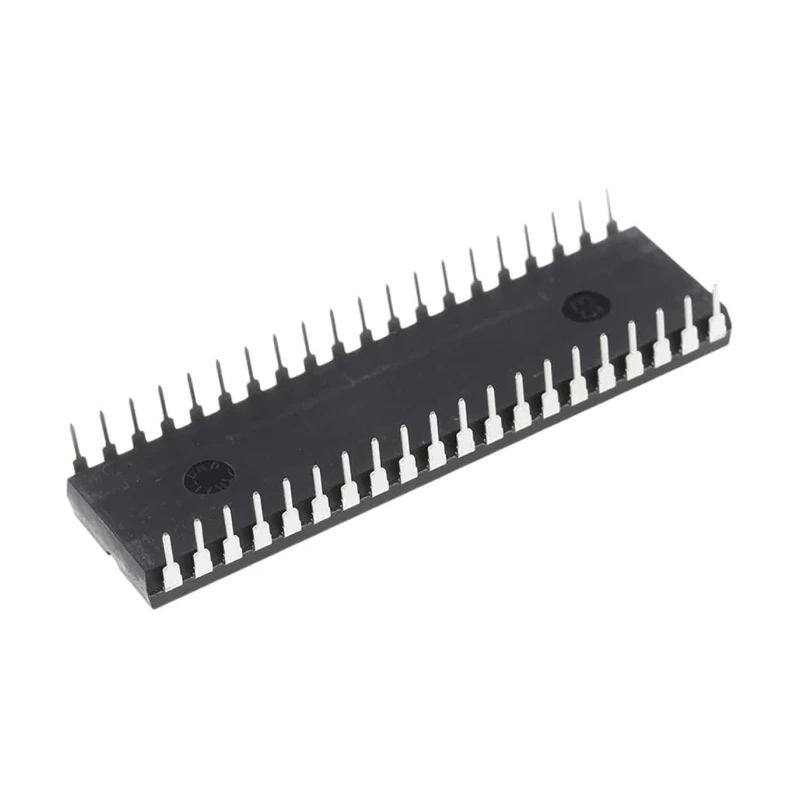

Microchip dsPIC30F 16 bit Digital Signal Processor 30 MIPS 48kB FLASH 40-Pin PDIP DSPIC30F4011-30I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 53.21mm |
| Model | DSPIC30F4011-30I/P |
| Width | 14.5mm |
| Mount Type | Through Hole |
| Series | dsPIC30F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| ADC Resolution | 10bit |
| Timer Resolution | 16bit |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Program Memory Size | 48kB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 30MIPS |
| Number of PWM Units | 5 |
| PWM Resolution | 16bit |
| ADC Channels | 9 |
| Number of PWM Channels | 6 |
Key Features
- Operates at a maximum clock frequency delivering 30 million instructions per second.
- Equipped with 2kB RAM and uses a RISC instruction set architecture.
- Integrated with 1 ADC and 9 ADC channels supporting 10 bit resolution.
- Features 6 PWM channels and 5 PWM units with 16 bit resolution.
- Designed with a supply voltage range of 2.5V to 5.5V suitable for various applications.
- Has 5 timers and a timer resolution of 16 bit for precise control.
- Operating temperature ranges from -40°C to 85°C ensuring durability in harsh environments.
- Physical dimensions include a length of 53.21mm, width of 14.5mm, and height of 4.95mm.
Product Description
Microchip DSPIC30F4011-30I/P is a high-performance 16 bit digital signal processor operating at 30 MIPS, packaged in a 40-Pin PDIP with 48kB of FLASH memory. It combines the power of a digital signal processor with the simplicity of a microcontroller, making it suitable for complex embedded control applications.
This processor features a RISC architecture with integrated RAM of 2kB, offering efficient instruction execution and programmability. Its robust analog-to-digital conversion capabilities include 1 ADC with 9 channels and 10 bit resolution, supporting precise sensor data acquisition. The device includes 6 PWM channels across 5 PWM units with 16 bit resolution, enabling advanced motor control and power management tasks.
Operating voltage ranges from 2.5V to 5.5V, allowing adaptability to different power supply environments, with operating temperatures from -40°C to 85°C, suitable for industrial and automotive-grade applications. The PDIP package with through-hole mounting ensures easy integration in prototyping and production.
Physical dimensions measure 53.21mm in length, 14.5mm in width, and 4.95mm in height, making it compact for various embedded designs. It contains 5 timers with 16 bit resolution for precise timing and control functions.
The DSPIC30F series is designed to support applications such as efficient digital power converters, advanced motor control algorithms, speech and audio processing, and smart sensing, benefiting industrial automation, consumer electronics, and communications technology.
Operates at 30 MIPS with a 16 bit data bus and RISC architecture. Contains 48kB FLASH program memory and 2kB RAM for program execution. Includes 1 ADC with 9 channels, 10 bit resolution and 6 PWM channels with 16 bit resolution.
Supports operating voltage from 2.5V up to 5.5V with a temperature range of -40°C to 85°C. Compact 40-Pin PDIP package with through hole mounting for ease of use. Features 5 timers and precise timing capabilities with 16 bit timer resolution.
Ideal for motor control, digital power conversion, and audio/speech applications.
This Microchip DSPIC30F4011-30I/P digital signal processor is a reliable choice for embedded system designers needing performance, integration, and flexibility in industrial, automotive, and consumer electronics applications. Explore more products in the Digital Signal Processor category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a maximum clock frequency delivering 30 million instructions per second (30 MIPS).
The operating voltage ranges from 2.5V to 5.5V, making it adaptable to various power supply environments.
It features 1 ADC with 9 channels, supporting 10-bit resolution for precise sensor data acquisition.
The physical dimensions are 53.21mm in length, 14.5mm in width, and 4.95mm in height.
This model includes 6 PWM channels across 5 PWM units, with a resolution of 16 bits.
The operating temperature ranges from -40°C to 85°C, suitable for harsh environments.
It comes in a 40-Pin PDIP package, designed for through-hole mounting.
It is equipped with 2kB of RAM for program execution.
This model includes 5 timers, each with a timer resolution of 16 bits for precise control.
It has a program memory size of 48kB, utilizing FLASH memory type.
It utilizes a RISC instruction set architecture, which allows for efficient instruction execution.
It is designed for applications such as digital power converters, motor control, and audio/speech processing.
