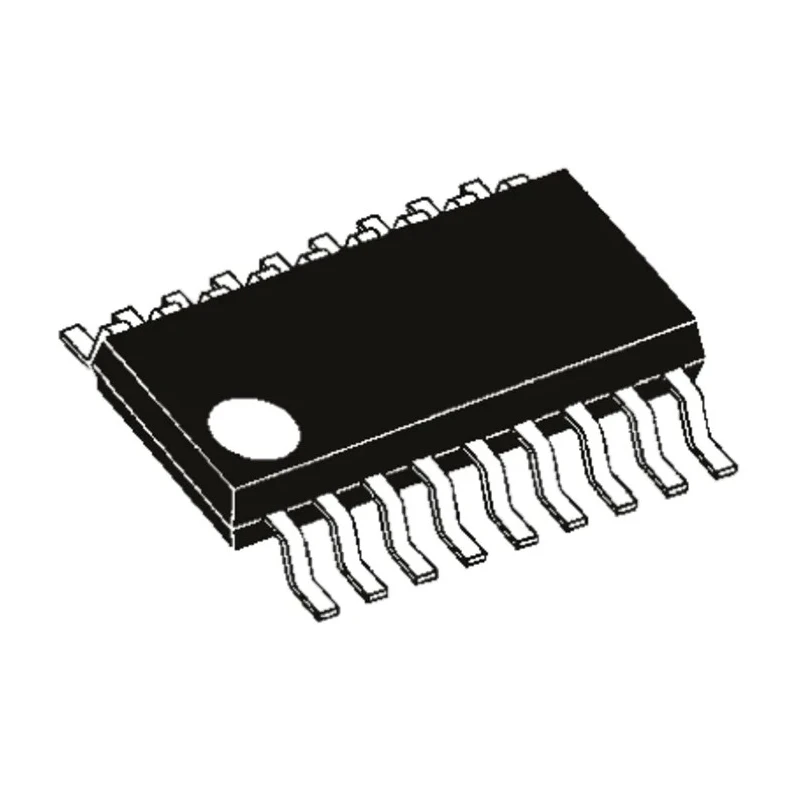

Microchip dsPIC30F, 16 bit Digital Signal Processor 30 MIPS 24kB FLASH 18-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 11.55mm |
| Model | dsPIC30F |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | dsPIC30F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| ADC Resolution | 12bit |
| Timer Resolution | 16bit |
| Pin Count | 18 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 2.5V |
| Program Memory Size | 24kB |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 30MIPS |
| Number of PWM Units | 2 |
| PWM Resolution | 16bit |
| ADC Channels | 8 |
Key Features
- The device operates on a supply voltage ranging from 2.5V to 5V.
- It features a 16-bit data bus width with RISC instruction set architecture.
- Includes 2kB RAM and 1 ADC with 8 channels.
- Temperature range from -40°C to 85°C for robust operation.
- Supports 2 PWM units and 3 timers with 16-bit resolution.
- ADC resolution is 12-bit, suitable for precise analog-to-digital conversion.
- Compact physical dimensions of 11.55mm length, 7.5mm width, and 2.35mm height.
- Surface-mounted SOIC package suitable for industrial electronic assemblies.
Product Description
Microchip DSPIC30F3012-30I/SO is a high-performance 16-bit Digital Signal Processor designed to deliver 30 MIPS (Million Instructions Per Second) with an integrated 24kB FLASH program memory, housed in a compact 18-Pin SOIC surface-mount package. This digital signal controller blends the power of a DSP with ease of use typical for microcontrollers, making it ideal for applications requiring efficient digital computation and control.
Operating within a supply voltage range of 2.5V to 5V and a temperature range from -40°C to 85°C, this device is engineered for reliability in harsh environments. It features 2kB RAM, a single ADC with 8 channels and 12-bit resolution, and multiple PWM units and timers enabling advanced motor control and signal processing tasks.
The dsPIC30F series integrates specialized peripherals such as SMPS control, motor control, and audio codec interfaces, facilitating development of advanced digital power converters and audio applications. Its RISC architecture ensures efficient code execution and low power consumption.
The compact SOIC package with dimensions 11.55mm length by 7.5mm width by 2.35mm height offers ease of integration into densely packed circuit boards. The 16-bit timer and PWM resolution provide precision timing and control capabilities for sophisticated automation systems.
The device operates on 2.5V to 5V supply voltage, supporting robust system designs. The 16-bit RISC data bus architecture enhances processing speed and flexibility. Includes 2kB RAM for ample data handling. Equipped with 1 ADC featuring 8 channels and 12-bit resolution for precise analog input measurement.
Supports 2 PWM units and 3 timers enabling complex motor and signal control tasks. Temperature tolerance from -40°C to +85°C for industrial-grade reliability. Compact surface mount SOIC package measuring 11.55mm x 7.5mm x 2.35mm.
Ideal for applications in digital power conversion, motor control, and audio processing.
Explore the Microchip dsPIC30F range for versatile and high-performance digital signal controllers suitable for industrial, automotive, and embedded electronic applications. Discover more products in our Digital Signal Processor category at EnvMart and find compatible components for your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The device operates on a supply voltage ranging from 2.5V to 5V.
The maximum operating temperature for this model is 85°C.
It includes 24kB of FLASH program memory.
The device features a 12-bit ADC with 8 channels for precise analog input measurement.
The SOIC package has a height of 2.35mm and a width of 7.5mm.
It supports 3 timers and 2 PWM units, both with 16-bit resolution.
This device features a 16-bit data bus width with a RISC instruction set architecture.
The minimum operating temperature for the dsPIC30F is -40°C.
This model has a pin count of 18.
It is ideal for applications in digital power conversion, motor control, and audio processing.
The device utilizes a RISC instruction set architecture for efficient code execution.
It features 2kB of RAM for data handling.
