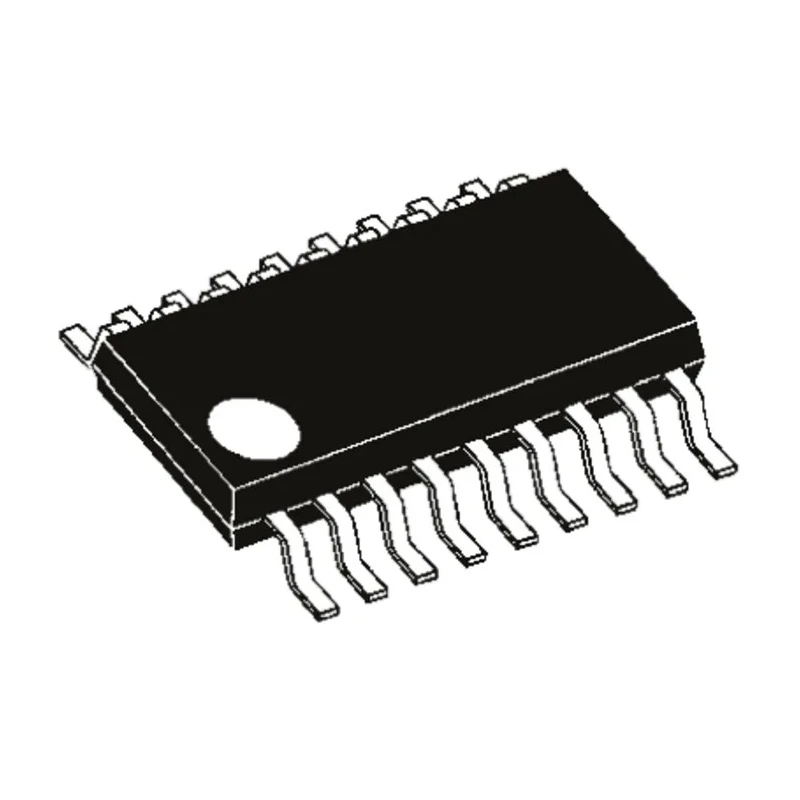

Microchip dsPIC30F 16 bit Digital Signal Processor 30 MIPS 24kB FLASH 18-Pin SOIC DSPIC30F3012-30I/SO
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 11.55mm |
| Model | DSPIC30F3012-30I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | dsPIC30F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| ADC Resolution | 12bit |
| Timer Resolution | 16bit |
| Pin Count | 18 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 2.5V |
| Program Memory Size | 24kB |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 30MIPS |
| Number of PWM Units | 2 |
| PWM Resolution | 16bit |
| ADC Channels | 8 |
Key Features
- This digital signal processor operates at a maximum clock frequency of 30 MIPS.
- Features 2kB RAM and FLASH program memory with RISC architecture.
- Operates with a supply voltage range of 2.5V to 5V, suitable for low voltage applications.
- Includes 8 ADC channels with 12-bit resolution for precise analog to digital conversion.
- Equipped with 2 PWM units and 3 timers to support complex control tasks.
- Compact surface mount SOIC package measuring 11.55mm length, 7.5mm width, and 2.35mm height.
- Designed to operate between -40°C and 85°C with robust industrial grade reliability.
- Ideal for digital power conversion, motor control, speech, and audio applications.
Product Description
Microchip DSPIC30F3012-30I/SO digital signal processor is a 16-bit RISC architecture DSP offering high performance at 30 MIPS with 24kB FLASH memory. Designed for embedded system applications, this device operates efficiently over a 2.5 to 5V supply range, providing flexibility for low power designs.
This 18-pin SOIC packaged DSP features 2kB RAM and integrated peripherals including 8-channel 12-bit ADCs, 2 PWM units, and 3 timers, making it suitable for motor control, digital power conversion, and audio processing tasks.
The compact device measures 11.55mm by 7.5mm footprint with a height of 2.35mm. It functions reliably in wide temperature ranges from -40°C to 85°C, meeting demanding industrial environmental requirements.
Its integrated SMPS and motor control peripherals enable advanced control algorithms, while the codec interface supports speech and audio applications in embedded systems.
This digital signal controller is widely used in industrial automation, consumer electronics, communications, and automotive systems where high-speed computation and precise analog interfacing are required.
This digital signal processor operates at a maximum clock frequency of 30 MIPS. Features 2kB RAM and FLASH program memory with RISC architecture. Operates with a supply voltage range of 2.5V to 5V, suitable for low voltage applications.
Includes 8 ADC channels with 12-bit resolution for precise analog to digital conversion. Equipped with 2 PWM units and 3 timers to support complex control tasks. Compact surface mount SOIC package measuring 11.55mm length, 7.5mm width, and 2.35mm height.
Designed to operate between -40°C and 85°C with robust industrial grade reliability. Ideal for digital power conversion, motor control, speech, and audio applications. Small form factor with 18 pins supports smart sensing in embedded systems.
Explore the Microchip DSPIC30F3012-30I/SO and related Digital Signal Processors in the Electronics & Electricals category at EnvMart for your advanced embedded project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this digital signal processor is 30 MIPS.
It operates with a supply voltage range of 2.5V to 5V, making it suitable for low voltage applications.
This model includes 8 ADC channels with a resolution of 12 bits for precise analog to digital conversion.
The dimensions of this digital signal processor are 11.55mm in length, 7.5mm in width, and 2.35mm in height.
It is ideal for digital power conversion, motor control, speech, and audio applications.
It features 2 PWM units and 3 timers to support complex control tasks.
The RAM size of this model is 2kB.
It is designed to operate between -40°C and 85°C, ensuring reliability in industrial environments.
The program memory size is 24kB, utilizing FLASH memory type.
This digital signal processor comes in an 18-pin SOIC package.
It includes 3 timers with a resolution of 16 bits.
It uses a RISC architecture for efficient processing.
