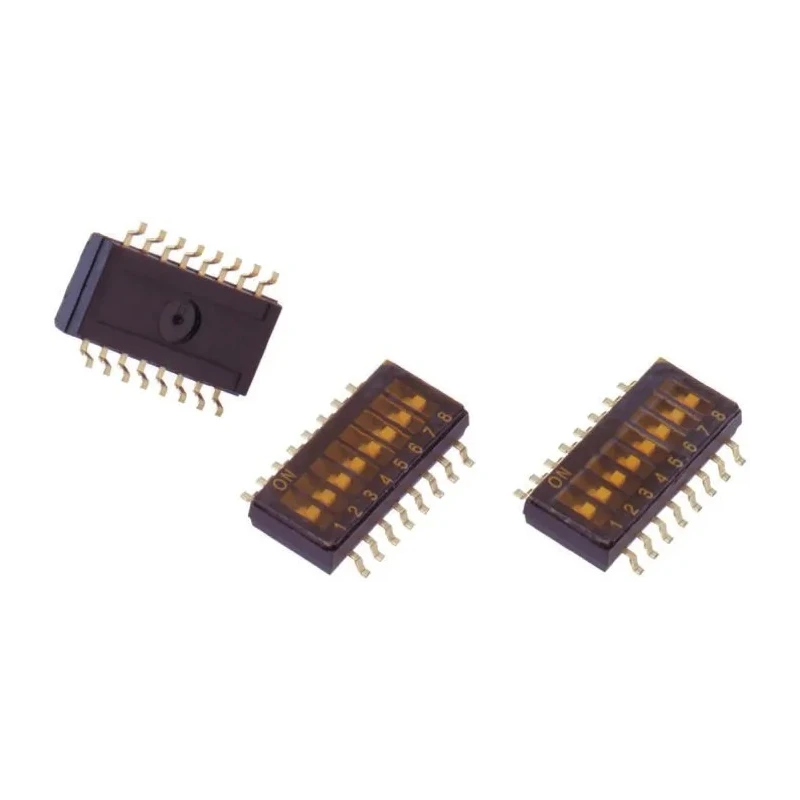

Omron Slide Rotary Coded DIP Switch Surface Mount A6H-0102

Omron A6H-0102 Slide Rotary Coded DIP Switch Surface Mount is an advanced switching device designed for applications demanding precise rotary coded switching in a compact form factor. Its surface mount configuration and half pitch layout reduce PCB space usage by 63%, facilitated by an ultra-low profile height of just 1.55 mm.

This slide actuator switch features low contact resistance at 200 mΩ, minimizing signal loss and enhancing electrical efficiency. The insulation resistance of 100 MΩ minimum at 250 V DC provides excellent electrical isolation and operational safety for sensitive circuits.

Mechanically, the switch is rated for 1000 operations, offering durable service life in electronic automation, instrumentation, and control systems. The option of tape seal adds flexibility for automated soldering and assembly processes.

Ideal for industrial instrumentation, control panels, consumer electronics, and embedded systems, the A6H-0102 supports surface mount PCB designs requiring compact rotary coded DIP switching solutions.

The switch offers a significant reduction in mounting space by 63% with half pitch design. Features an ultra-low profile of 1.55 mm for slim device assembly. Contact resistance of 200 milliohms ensures low power loss. Insulation resistance rated at 100 megaohms at 250 volts DC.

Mechanical life of 1000 operations guarantees reliable switching cycles. Available with or without tape seal for assembly compatibility.
