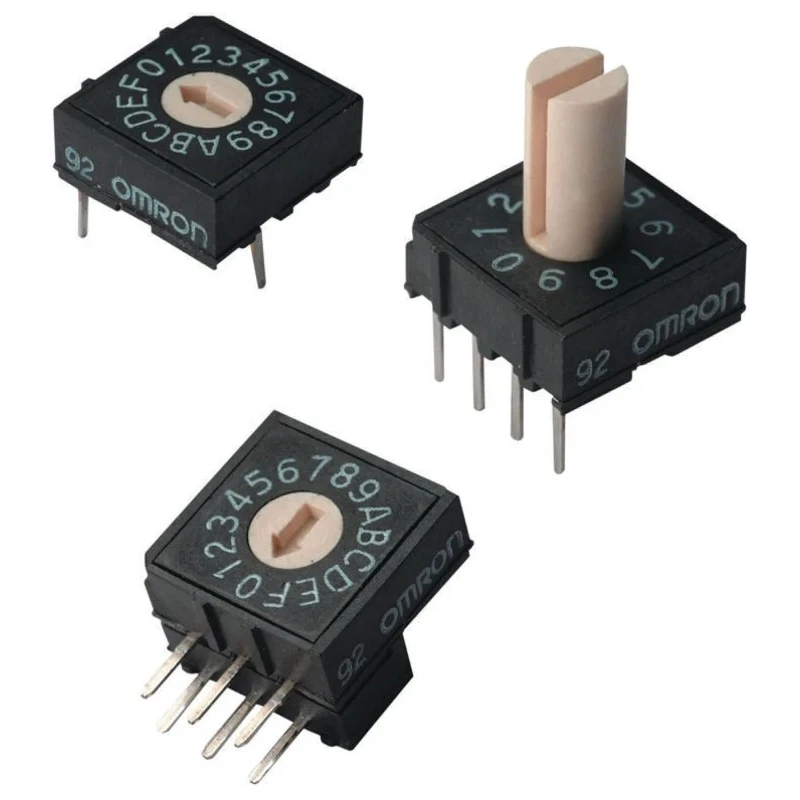

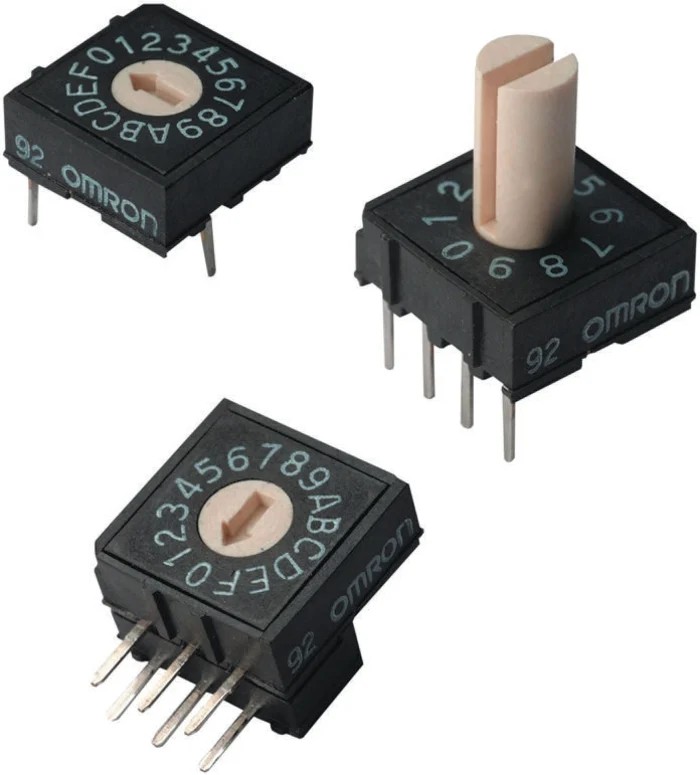

Omron Rotary Coded DIP Switch Through Hole Actuator Rotary Flush A6R-101RF CHN
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Operating Temperature | -25 to +80°C |
| Model | A6R-101RF CHN |
| Mount Type | Through Hole |
| Actuator Type | Rotary Flush |
| Contact Rating | 25mA @ 24Vdc |
| Insulation resistance | 100MΩ min @ 250Vdc |
| Contact Resistance | 200mΩ max |
| Electrical Life | 5000 steps per min |
| Aratas Rotary Shaft Rotary Coded DIP Switch Through HoleBrand | Omron |
Key Features
- The switch features a rotary flush actuator type for smooth operation.
- Constructed with through hole mount type suitable for PCB installation.
- Provides up to 10 or 16 switching positions for versatile use.
- Sealed with IP60 rating to prevent ingress of dirt and dust.
- Electrical rating includes 25mA contact current at 24V DC.
- Offers a maximum contact resistance of 200 milliohms.
- High insulation resistance of 100 megaohms minimum at 250V DC.
- Has an electrical life of 5000 steps per minute for durability.
Product Description
Omron A6R-101RF CHN Rotary Coded DIP Switch Through Hole is a high-quality sealed rotary switch designed for printed circuit board (PCB) mounting in various electronic and automation systems.
This DIP sealed rotary switch features a rotary flush actuator and through hole mount type, ensuring easy integration and robust performance in industrial, laboratory, and commercial electronics applications.
The rotor incorporates an O-ring sealed construction that provides an IP60 rating, effectively preventing dirt and dust ingress, maintaining switch reliability and longevity. It offers 10 or 16 switching positions, providing flexible configuration options for control circuits and signal selection.
Electrical specifications include a contact rating of 25mA at 24V DC, a maximum contact resistance of 200 milliohms to ensure minimal signal loss, and insulation resistance of 100 megaohms at 250V DC to enhance reliability in electrical isolation.
Designed for durability, the switch supports an electrical life of 5000 steps per minute, making it suitable for frequent operation. Operating temperature range extends from -25 to +80 degrees Celsius, allowing use in diverse environmental conditions.
The compact through hole design facilitates easy PCB mounting with standard 2.54 mm pin spacing, widely used in electronics manufacturing. The switch’s rotary flush actuator enables smooth and flush panel integration. IP60 sealed construction prolongs operational life by preventing contamination.
Offering multiple switching positions enhances adaptability in circuit design. Robust contact and insulation ratings assure reliable electrical performance. Wide operating temperature suits industrial and commercial electronic applications.
This product is manufactured in China and is RoHS compliant, ensuring environmental standards are met.
Omron rotary coded DIP switches are ideal for industrial automation systems, electronic device control panels, communication equipment, and other applications demanding precise rotary switching functions.
Explore the extensive range of Rotary Coded DIP Switches and other electronic components at EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The electrical rating includes a contact current of 25mA at 24V DC.
The maximum contact resistance is 200 milliohms, ensuring minimal signal loss.
It has an insulation resistance of 100 megaohms minimum at 250V DC, enhancing electrical isolation reliability.
The operating temperature range extends from -25 to +80 degrees Celsius, suitable for diverse environmental conditions.
This switch provides up to 10 or 16 switching positions for versatile use in circuit design.
It features a through hole mount type, which is suitable for PCB installation.
The electrical life supports 5000 steps per minute, making it suitable for frequent operation.
Yes, it has an IP60 rating, which prevents the ingress of dirt and dust, maintaining switch reliability.
The actuator type is a rotary flush actuator, designed for smooth operation and flush panel integration.
The country of origin for the Omron A6R-101RF CHN is China.
The compact through hole design facilitates easy PCB mounting with a standard pin spacing of 2.54 mm.
Yes, the switch is RoHS compliant, ensuring it meets environmental standards.
