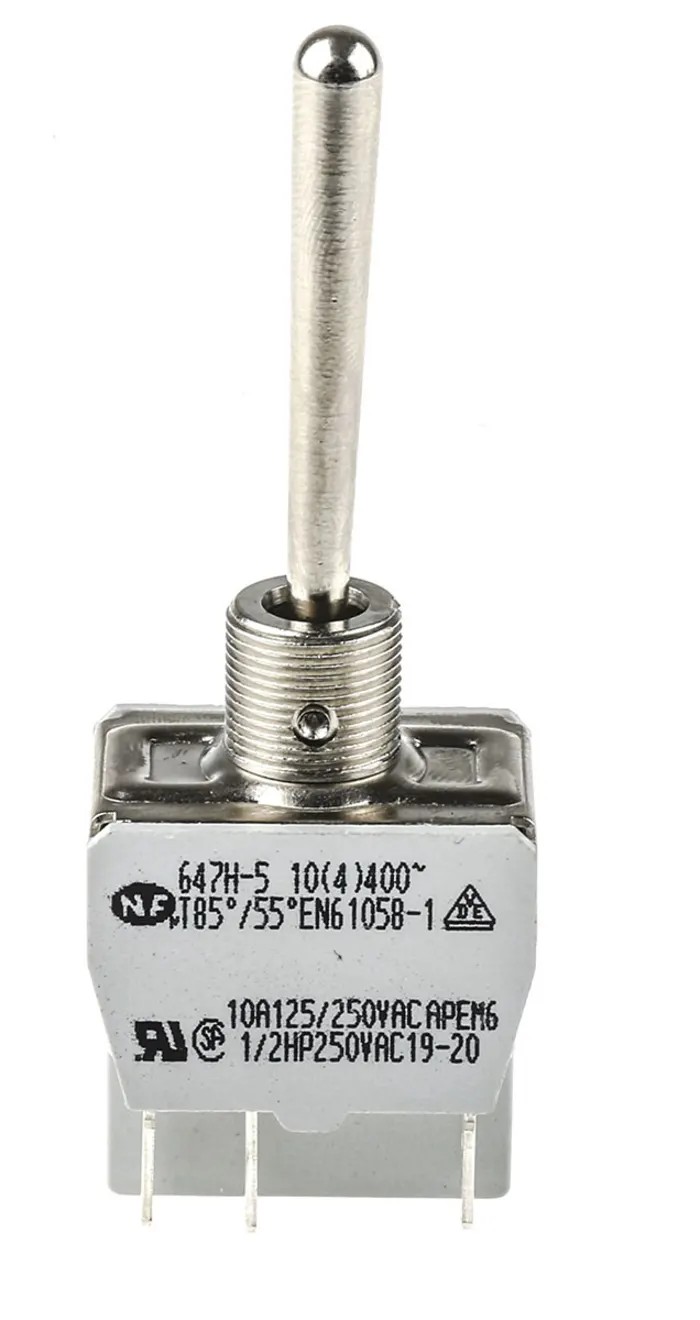

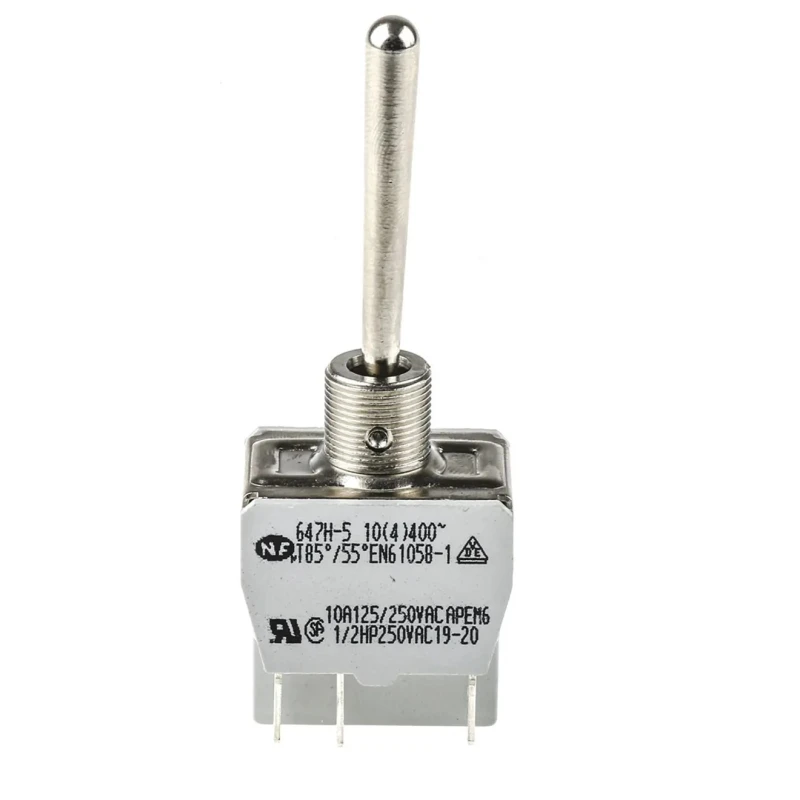

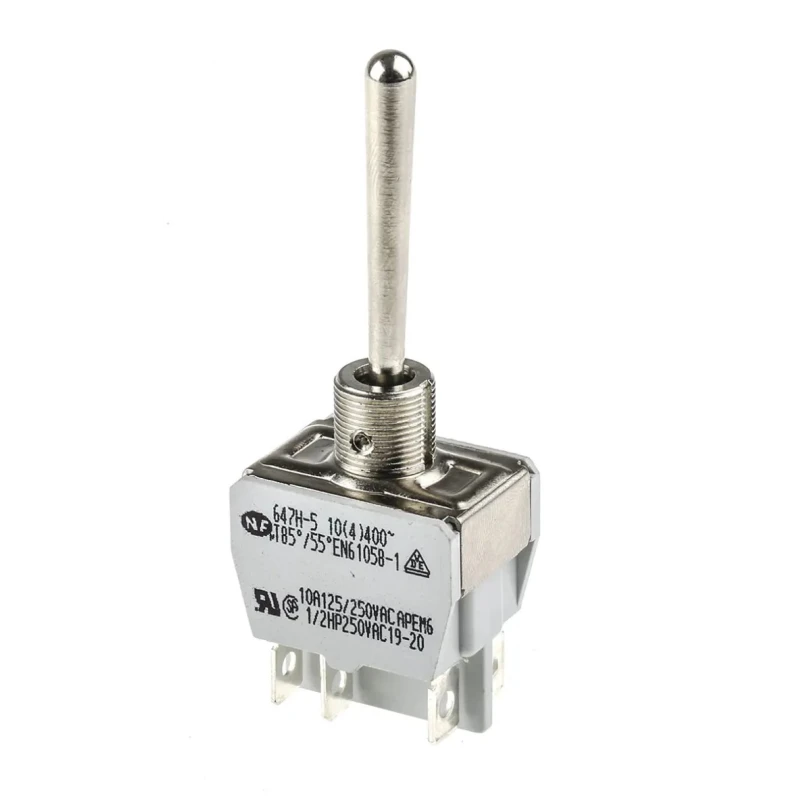

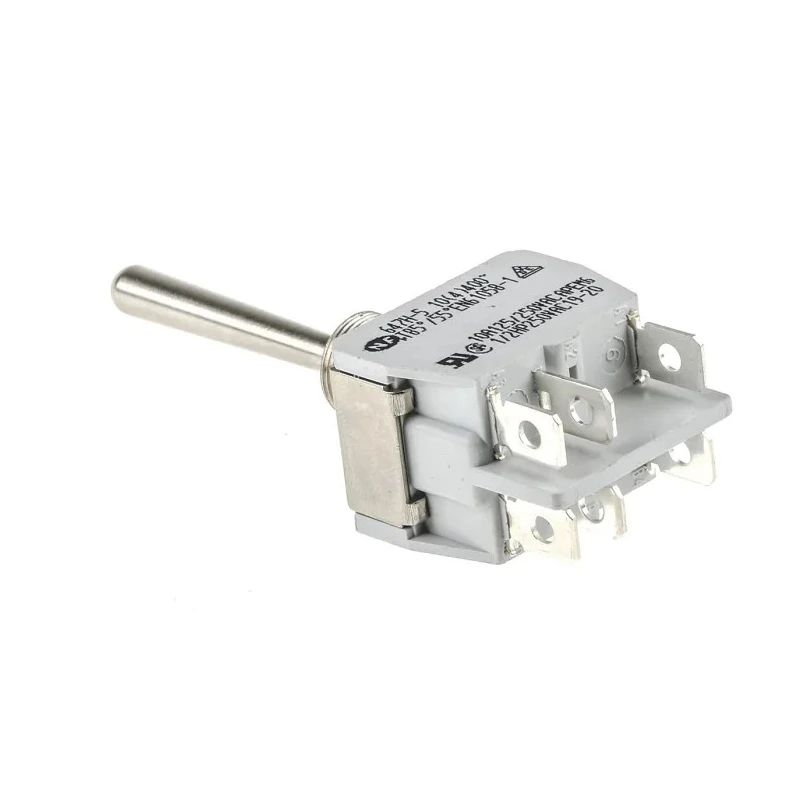

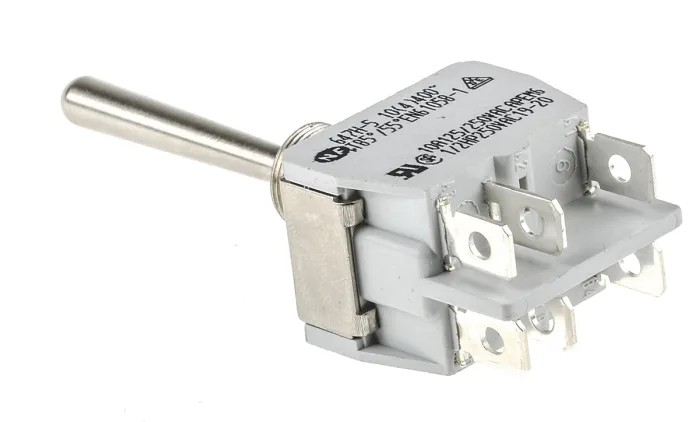

APEM Industrial Toggle Switch Panel Mount On-Off-On DPDT Solder Terminal 24 V DC 250 V AC 647H/2-5RS

APEM 647H/2-5RS industrial toggle switch panel mount is engineered for control and automation applications, providing reliable On-Off-On DPDT operation with solder terminal connections rated at 24 V DC and 250 V AC. It features a 40mm nickel plated brass actuator lever designed for ergonomic and precise switching, suitable for joystick-type sealing caps.

This toggle switch is ideal for industrial environments due to its fully insulated and sealed front face, protecting internal contacts against dust and moisture. The contact resistance welding to terminals enhances durability, supporting a 5A contact current within its rating.

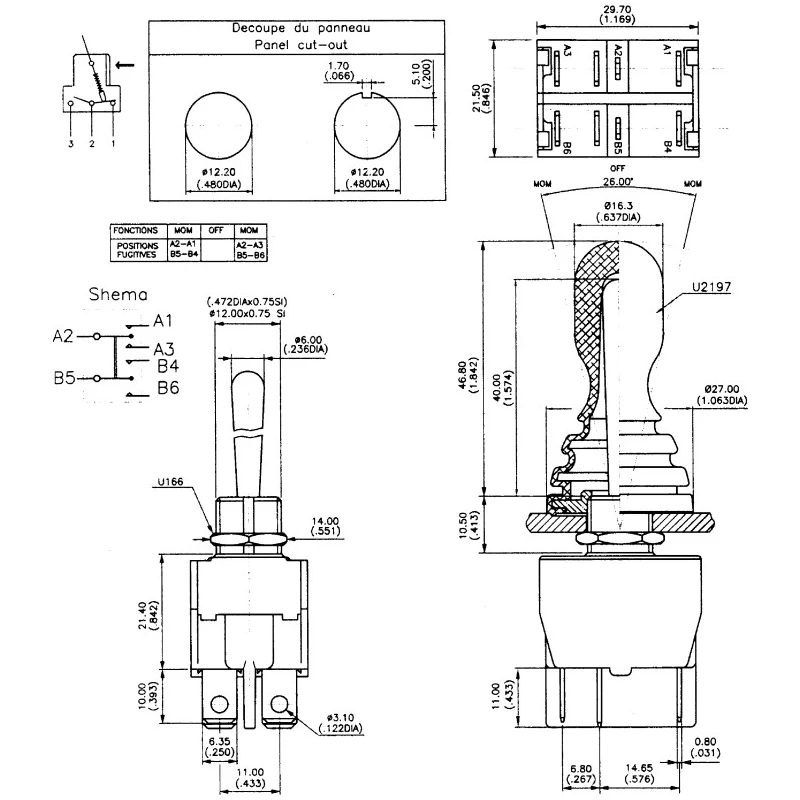

Mounting is designed for panels with a precise 12.5mm cutout, and compact dimensions of 60.4mm height, 29.7mm length, and 21.5mm width ensure compatibility with standard enclosure sizes.

Operating reliably from temperatures as low as -20°C up to 55°C, this component meets demanding industrial temperature ranges. The mechanical lifetime expectancy of 10,000 operations confirms its resilience in frequent use scenarios.

Certifications from CSA, VDE, UL, RoHS, NF, and EN endorse the switch’s quality and regulatory compliance for safety and environmental responsibility. This toggle switch includes a robust 40mm nickel plated brass lever actuator for industrial applications.

The switch supports a contact current of 5A, suitable for various electrical control tasks. Designed for panel mounting with a 12.5mm panel cutout size for secure installation. Operates reliably from -20°C to 55°C, ensuring durable performance in harsh environments.

The fully insulated front face and sealed design provide protection for industrial and automation environments. Mechanical life rating of 10,000 operations ensures long-lasting service. Complies with industry standards including CSA, VDE, UL, RoHS, NF, and EN certifications.

This APEM 647H/2-5RS toggle switch is widely used in industrial, manufacturing, automation, and electrical control systems. Its robust construction and reliable operation make it suitable for demanding environments where safety and performance are critical.
