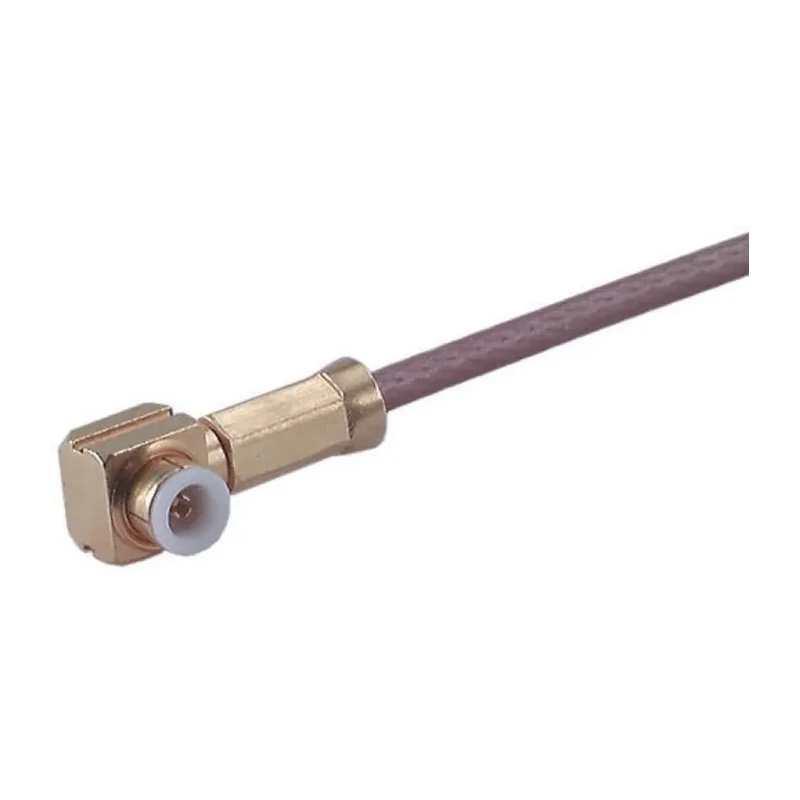

Huber+Suhner MMBX Series Coaxial Connector Cable Male MMBX 50 Ω Right Angle Body Solder 16_MMBX-50-2-1/111_NE
Specifications
| Country of Origin | Switzerland |
|---|---|
| Size | Standard |
| Brand | Huber+Suhner |
| Orientation | Right Angle |
| Model | 16_MMBX-50-2-1/111_NE |
| Mount Type | Cable |
| Operating Frequency | 12.4GHz |
| Contact Material | Beryllium Copper |
| Series | MMBX |
| Termination Type | Solder |
| Maximum Operating Temperature | 155°C |
| Cable Type | RG-174U, RG188A/U, RG316/U |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | MMBX |
| Body Plating | Gold over Nickel |
Key Features
- Designed for cable mounting with standard size configuration.
- Utilizes RG-174U, RG188A/U, and RG316/U cable types.
- Operates up to a maximum frequency of 12.4 GHz.
- Features gold over nickel body plating and beryllium copper contacts.
- Suitable for temperature ranges from -55°C to 155°C.
- Contact plating is gold over nickel ensuring high reliability.
- Durable design supports approximately 100 mating cycles.
- Compliant with RoHS standards for environmental safety.
Product Description
Huber+Suhner 16_MMBX-50-2-1/111_NE MMBX Series Coaxial Connector Cable is a 50 Ω impedance right angle male coaxial connector designed for cable mounting applications. It supports RG-174U, RG188A/U, and RG316/U cable types, providing flexible usage across various RF systems.
The connector features a gold over nickel plated body with beryllium copper contacts plated in gold over nickel, ensuring excellent conductivity and corrosion resistance. It operates efficiently at frequencies up to 12.4 GHz, making it suitable for advanced cellular technology systems including GSM, WCDMA, and UMTS, where modularity and minimum space requirements are critical.
This MMBX series connector offers low engagement force and a durable design rated for around 100 mating cycles. The product maintains performance over a wide temperature range from -55°C to 155°C, suitable for demanding industrial and telecommunications environments.
The connector meets RoHS environmental standards and adheres to military test standards MIL-STD-202 methods 107 G, 106 F, 101 B, and 204 D, ensuring reliability under harsh conditions. The right angle body and solder termination facilitate compact and secure cable connections in high-density layouts.
Manufactured in Switzerland, this coaxial connector is ideal for industrial, telecommunications, laboratory, and electronic component assembly applications requiring precise RF connections with standardized interfaces.
Designed for cable mounting with standard size configuration. Supports multiple coaxial cable types including RG-174U, RG188A/U, RG316/U. Operates at frequencies up to 12.4 GHz for high-frequency applications. Gold over nickel body and contact plating for durability and corrosion resistance.
Beryllium copper contacts ensure excellent electrical performance. Wide operating temperature range from -55°C to 155°C. Compliant with RoHS environmental standards. Meets MIL-STD-202 military test standards for mechanical and environmental reliability.
Right angle solder termination provides space-saving cable connection. Manufactured in Switzerland for quality assurance. Explore more high-quality Coaxial Connectors and RF components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector operates efficiently at frequencies up to 12.4 GHz, making it suitable for high-frequency applications.
This model supports RG-174U, RG188A/U, and RG316/U cable types, providing flexible usage across various RF systems.
It operates over a wide temperature range from -55°C to 155°C, suitable for demanding industrial and telecommunications environments.
The contacts are made of beryllium copper and are plated with gold over nickel, ensuring excellent electrical performance and corrosion resistance.
The design supports approximately 100 mating cycles, providing durability for repeated use.
It uses a solder termination type, which facilitates secure cable connections in high-density layouts.
Yes, it is compliant with RoHS standards for environmental safety, ensuring it meets regulations for hazardous substances.
The connector features a right angle orientation, allowing for space-saving cable connections.
This coaxial connector is manufactured in Switzerland, ensuring quality assurance.
The impedance rating of this connector is 50 Ω, making it suitable for various RF applications.
It meets military test standards MIL-STD-202 methods 107 G, 106 F, 101 B, and 204 D, ensuring reliability under harsh conditions.
The body is plated with gold over nickel, which enhances durability and corrosion resistance.
