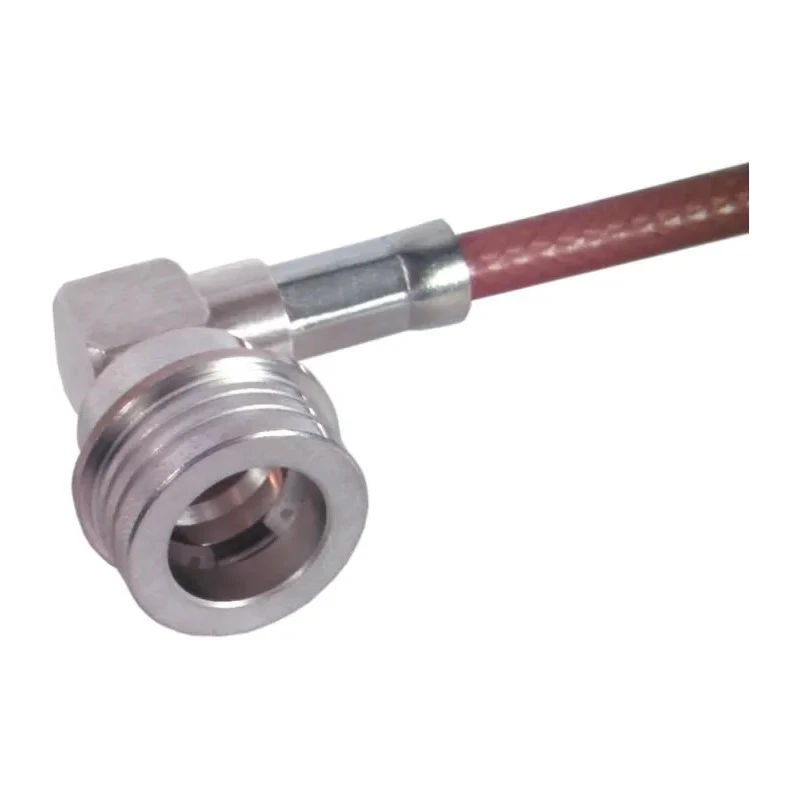

Huber+Suhner QN Series Coaxial Connector Cable Male, 50 Ω, Right Angle Body Solder 16_QN-50-7-1/133_NE
Specifications
| Country of Origin | Switzerland |
|---|---|
| Size | Standard |
| Brand | Huber+Suhner |
| Orientation | Right Angle |
| Model | 16_QN-50-7-1/133_NE |
| Mount Type | Cable |
| Operating Frequency | 11GHz |
| Contact Material | Brass |
| Series | QN |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Cable Type | RG363/U, RG214/U |
| Minimum Operating Temperature | -40°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | QN |
| Body Plating | White Bronze |
Key Features
- The connector features a right angle body with a solder termination type enabling secure cable connection.
- It supports a frequency range up to 11 GHz for versatile RF applications.
- Constructed with brass contact material plated with gold over nickel for enhanced conductivity and corrosion resistance.
- The body plating uses white bronze for durability and electrical performance.
- Operates reliably within temperature ranges from -40°C to 125°C, suitable for various environments.
- The QN series employs a SNAP-ON coupling mechanism providing fast, user-friendly and torque-spanner free mounting.
- Designed to offer similar performance to N connectors but with smaller outer dimensions, allowing higher packaging density.
- Compatible with RG363/U and RG214/U cable types, meeting RoHS compliance standards.
Product Description
Huber+Suhner 16_QN-50-7-1/133_NE Coaxial Connector Cable Male is engineered as part of the QN series to provide efficient RF connectivity solutions with a 50 Ω impedance and a right angle body design. This connector employs a SNAP-ON coupling system, which replaces traditional threaded couplings for faster and more reliable installation without requiring a torque wrench.
The connector supports operating frequencies up to 11 GHz, though it is optimized for return loss up to 6 GHz, making it suitable for various electronic, communication, and test equipment applications. Its compact design offers the advantage of increased packaging density and layout flexibility compared to standard N connectors.
Its contact is made of brass, plated with gold over nickel, ensuring excellent conductivity and resistance to corrosion. The body plating is finished with white bronze, providing robust mechanical and environmental protection. This connector tolerates operating temperatures ranging from -40°C to 125°C, ensuring stability in harsh industrial and laboratory conditions.
The device is RoHS compliant, certifying its adherence to environmental and safety standards for electronic components. Compatible with RG363/U and RG214/U coaxial cables, it is ideal for applications requiring durable and fast-mating RF connectors, such as telecommunications, industrial instrumentation, and aerospace electronics.
The connector's SNAP-ON mechanism guarantees secure and quick mating, saving operational time in assembly and maintenance. Its smaller outer dimensions allow integration in systems needing dense coaxial arrangements without compromising performance.
The right angle orientation facilitates cable routing in confined or complex assemblies. Robust materials and plating extend the connector’s service life across demanding use cases. Designed and manufactured in Switzerland, this connector delivers premium quality and reliability.
Explore the full range of Huber+Suhner Coaxial Connectors and related components at EnvMart for advanced electronic interconnection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum operating frequency of 11 GHz, making it suitable for various RF applications.
This connector operates reliably within a temperature range from -40°C to 125°C, allowing it to function in diverse environments.
It is compatible with RG363/U and RG214/U coaxial cable types, ensuring versatile connectivity options.
The connector features a solder termination type, enabling a secure and stable cable connection.
The contact is made of brass, plated with gold over nickel, while the body is plated with white bronze for enhanced durability and conductivity.
This model has an impedance rating of 50 Ω, suitable for RF applications.
It features a right angle orientation, facilitating cable routing in confined spaces or complex assemblies.
It employs a SNAP-ON coupling mechanism, allowing for fast and user-friendly installation without the need for a torque wrench.
Yes, this connector meets RoHS compliance standards, ensuring it adheres to environmental and safety regulations for electronic components.
This connector is a male type, designed for male connections in RF applications.
This connector is designed and manufactured in Switzerland, ensuring quality and reliability in its construction.
This model offers similar performance to standard N connectors but with smaller outer dimensions, allowing for higher packaging density and layout flexibility.
