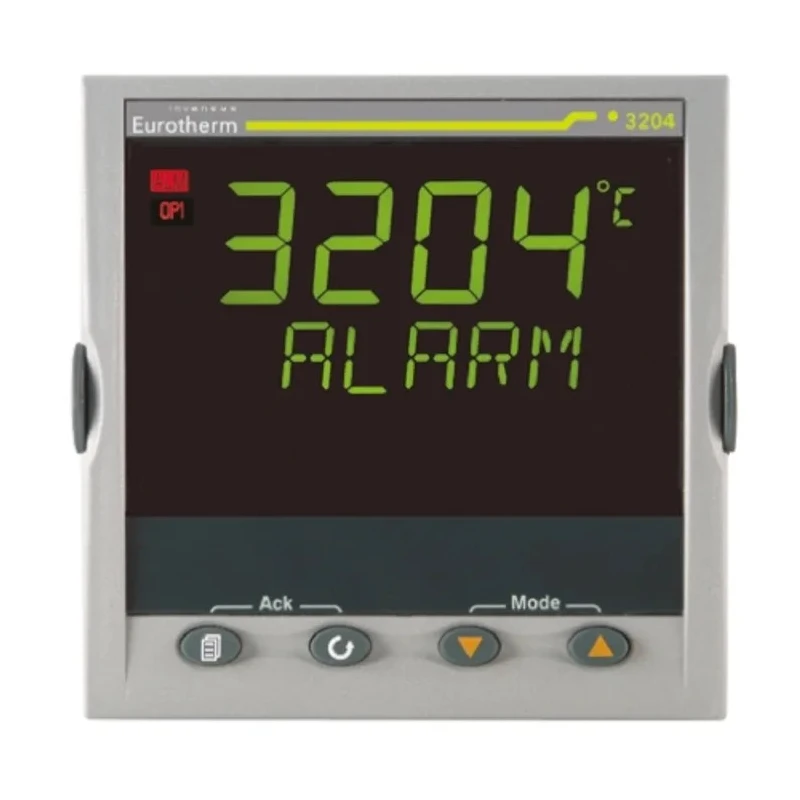

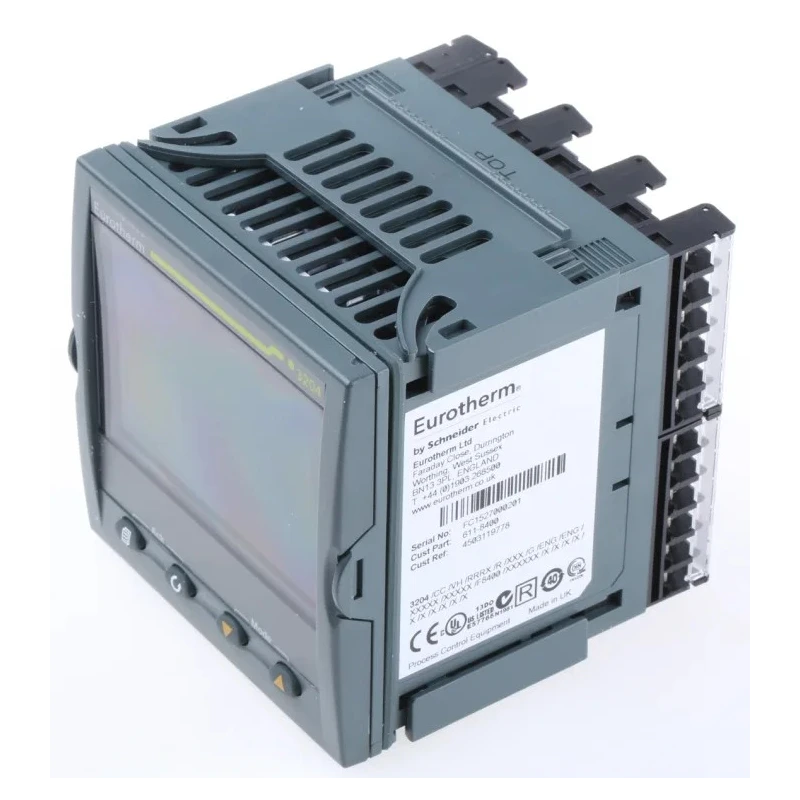

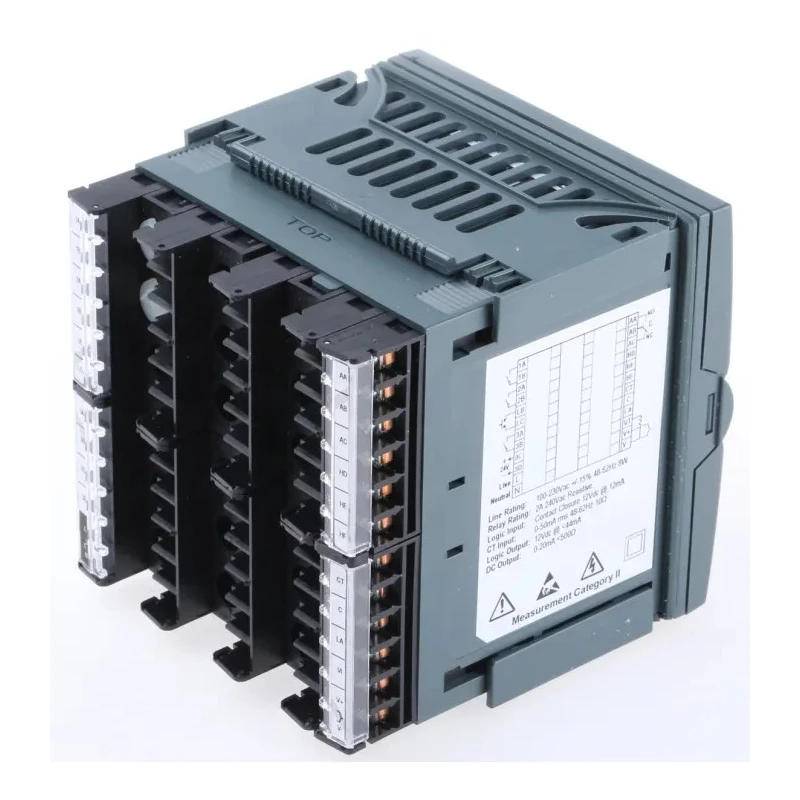

Eurotherm 3200 Panel PID Temperature Controller 4 Output Relay 264V AC On-Off 3204/CC/VH/RRRX/R

Free Delivery in India | Lowest Global Shipping Charges

Eurotherm 3200 Panel PID Temperature Controller 4 Output Relay 264V AC On-Off 3204/CC/VH/RRRX/R

Name: Eurotherm 3200 Panel PID Temperature Controller 4 Output Relay 264V AC On-Off 3204/CC/VH/RRRX/R
Brand: Eurotherm
SKU: 342273
Price: 1964.32 USD
Availability: InStock



Category Temperature Controllers Brand Eurotherm Condition New

Specifications

Country of Origin	United Kingdom
Display Type	LCD Backlight
Brand	Eurotherm
Length	101mm
Model	3204/CC/VH/RRRX/R
IP Rating	IP65
Width	96mm
Mount Type	Panel
Output type	Relay
Series	3200
Input Type	PT1000, 4 to 20 mA, Custom, Linear: 10 to 80 mV, 0 to 20 mA, Type K Thermocouple, 0 to 10 V
Maximum Operating Temperature	55°C
Control Type	On-Off
Minimum Operating Temperature	0°C
Number of outputs	4
Terminal type	Screw
Standards/Approvals	UL, EN14597 TR, CE, EAC, BS EN61326, BS EN61010, CCC (Exempt), cUL
Maximum Supply Voltage	264V ac
Digital Comms	Modbus RTU Master Broadcast, Modbus RTU Slave
Diagnostics	Short Circuit, Heater Diagnostics
Panel Depth	101mm
Up to 4 outputs	Logic I/O, Relay and Analogue can provide any combination of heat, cool or alarm
Input Type PT1000, 4 to 20 mA, Custom, Linear	10 to 80 mV, 0 to 20 mA, Type K Thermocouple, 0 to 10 V

Key Features

Equipped with an LCD backlight display for clear process status indication.
Supports universal inputs including thermocouples, PT1000, and 4 to 20 mA signals.
Features safety diagnostics such as short circuit and heater diagnostics for reliability.
IP65 rated panel mount suitable for industrial environments.
Includes advanced PID self-tuning, alarms, and multiple timer functions.
Compatible with Modbus RTU Master and Slave communication protocols.
Operates effectively within 0°C to 55°C ambient temperature range.
Robust construction with screw terminals for secure connections and UL, CE, and other international approvals.

Product Description

Eurotherm 3204/CC/VH/RRRX/R Panel PID Temperature Controller delivers high precision temperature control for industrial and process automation applications. Featuring 4 relay outputs and On-Off control functionality, it supports a maximum supply voltage of 264V AC, making it ideal for varied power environments.

The controller includes a large LCD backlight display with a 7-segment universal meter for intuitive visual feedback of process status. Its universal input capability accommodates a wide range of sensors and signals such as thermocouples types B, J, K, L, N, R, S, T, C, PT100, 0-80mV, 0-20mA, and 4-20mA, ensuring flexibility in measurement.

Industrial-grade diagnostics include short circuit and heater status monitoring to enhance operational safety. Certified with UL, EN14597 TR, CE, EAC, BS EN61326, BS EN61010, and cUL approvals, it meets stringent international standards. The device is designed for panel mounting with screw terminals offering secure installation and wiring.

Designed for harsh environments, the unit is IP65 and NEMA 4X rated, ensuring dust and water resistance for reliable performance in industrial settings. The embedded quick start wizard facilitates easy setup along with PID self-tuning, dwell timers, delayed switch-on, and self-start timers for sophisticated process management.

It is suitable for applications including plastic extruders, small ovens, chillers, sterilizers, trace heating systems, and packaging machines. Communication via Modbus RTU Master and Slave protocols allows seamless integration into automated control systems.

Large LCD backlight and 7-segment meter for clear status. Universal sensor inputs supporting multiple thermocouple types and analog signals. Four versatile relay outputs configurable for heat, cool, or alarm functions. IP65 and NEMA 4X enclosure ratings for industrial durability.

Safety features include short circuit and heater diagnostics. Multiple timers and PID self-tuning to optimize control precision. Extensive international certifications ensure compliance and quality. Panel mount design with screw terminals for easy installation and maintenance.

Modbus RTU Master/Slave communications for networked control.

Eurotherm products provide dependable temperature control solutions for demanding industrial processes. Explore our range of industrial Temperature Controllers and automation products at EnvMart for your manufacturing, HVAC, and process control needs.
