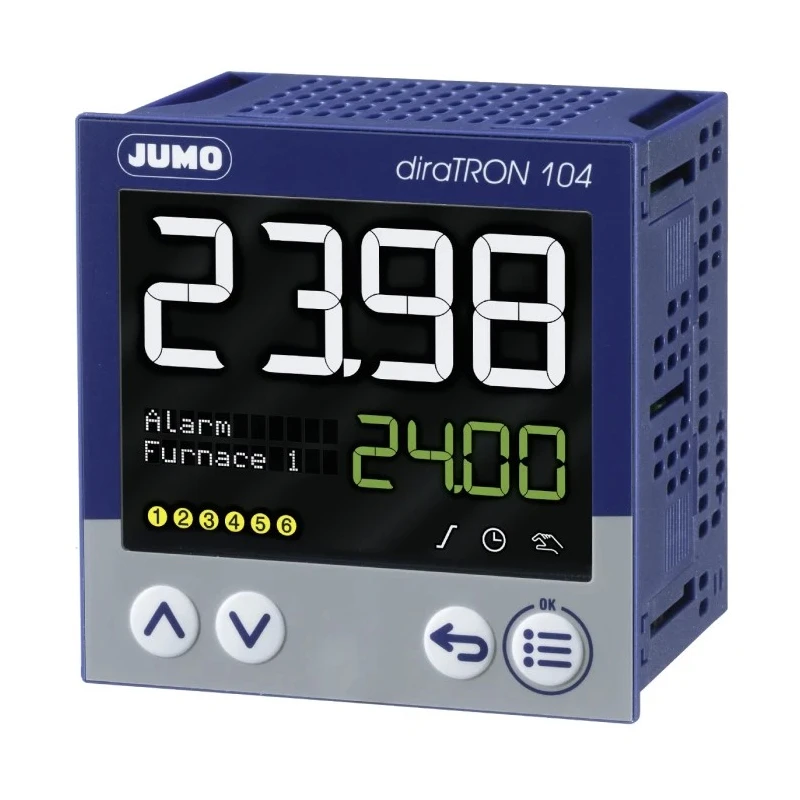

Jumo diraTRON Panel Mount PID Temperature Controller 3 Input, 3 Output, 2 Relay, 240V ac 702114/8-0300-23/000

Jumo 702114/8-0300-23/000 is a highly reliable diraTRON panel mount PID temperature controller designed for precise industrial process control applications. It offers three input channels compatible with digital and analogue sensors and three outputs, including two relay outputs, enabling versatile control functionality.

The controller operates within a temperature range from -10°C to 55°C, ensuring stable performance in various environments. Its compact design features a 96mm x 96mm front panel and 65mm depth, making it ideal for standard panel mounting with an IP65 rating at the front for protection against dust and water, and IP20 protection on the rear side.

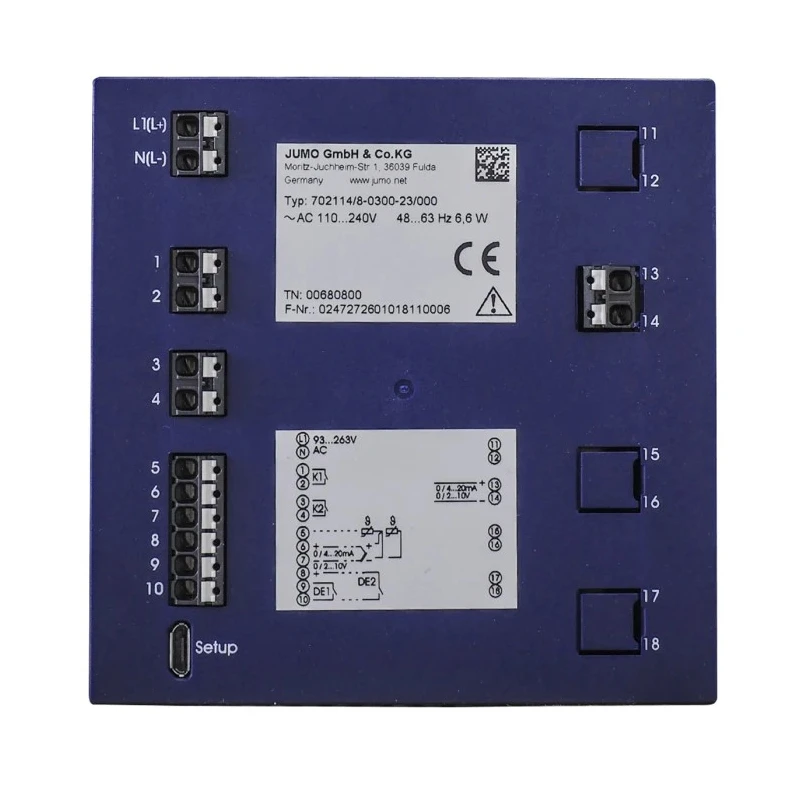

Equipped with spring cage terminals for efficient wiring, the device also incorporates advanced digital communication interfaces such as USB Device and optional RS485, facilitating integration into modern automation systems.

Key functional features include autotuning, setpoint changeover with four programmable setpoints, ramp function, timer functions, and multiple limit value monitoring. Options include additional analog and digital inputs through RS485, math and logic functions, and individual operator level settings.

This temperature controller is especially suited for industrial applications demanding accurate temperature, pressure, or other process variable control across manufacturing, HVAC, and laboratory environments. Its compliance with rigorous standards such as UL 61010-1 and EN 61010-1 confirms its safety and performance quality.

Supports 3 control inputs for accurate process measurement. Provides 3 outputs including 2 relay outputs for versatile control. Operates between -10°C to 55°C ambient temperature. Features PID controller for precise temperature regulation.

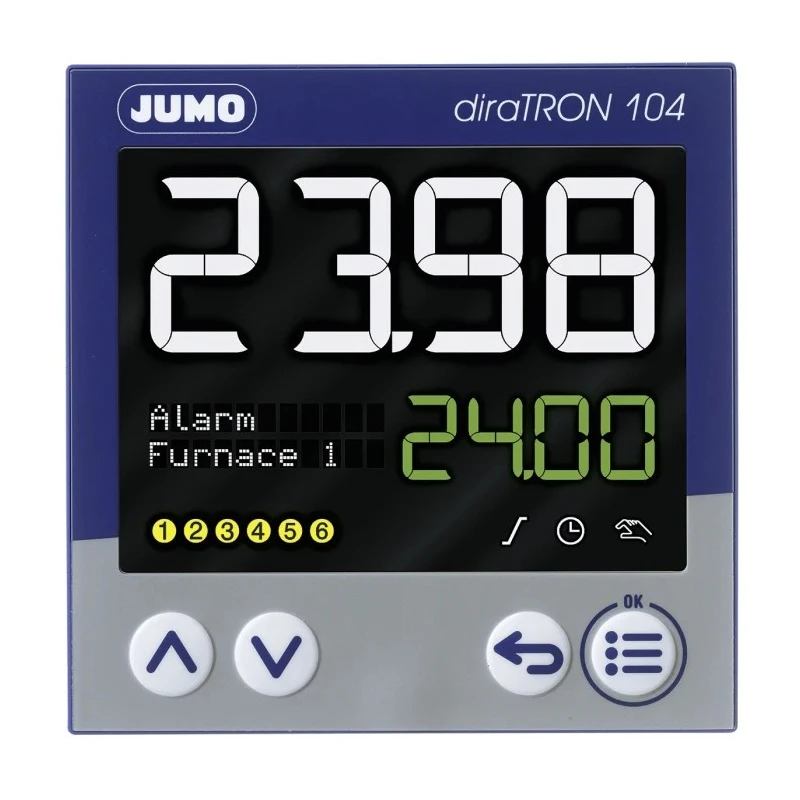

Equipped with spring cage terminals for secure wiring. Digital communications via USB Device and RS485 interface included. Segment display for clear status indication. Compact panel mount design with 96mm length and width and 65mm depth.

IP65 and IP20 rated providing protection in harsh environments. Compliant with multiple international standards including UL and EN series. Package contents include the Jumo diraTRON panel mount PID temperature controller unit. This product is manufactured in Germany and is supplied new.
