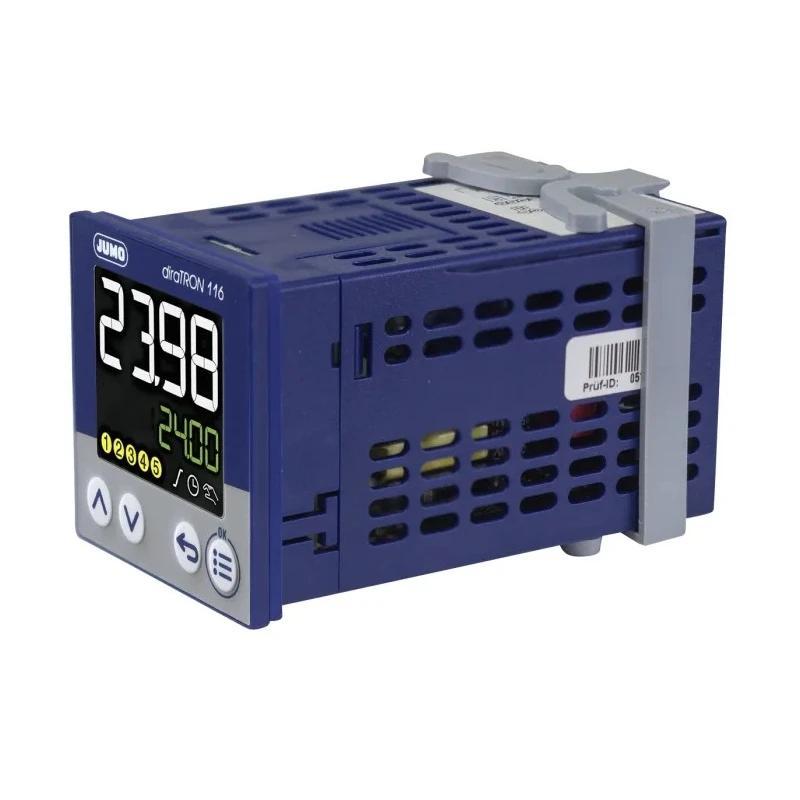

Jumo diraTRON Panel Mount PID Temperature Controller 3 Input, 3 Output 2 Relay 240V ac PID Controller 702111/8-0000-23/000

Jumo 702111/8-0000-23/000 is a high-precision diraTRON series panel mount PID temperature controller designed for controlling process variables such as temperature and pressure in industrial applications. It features 3 input channels and 3 output channels including 2 relay outputs, operating at 240V ac power supply.

This controller offers advanced control capabilities including 2 parameter block programming, autotuning, setpoint changeover with up to 4 setpoint values, ramp functions, timer functions, and limit value monitoring for enhanced process safety.

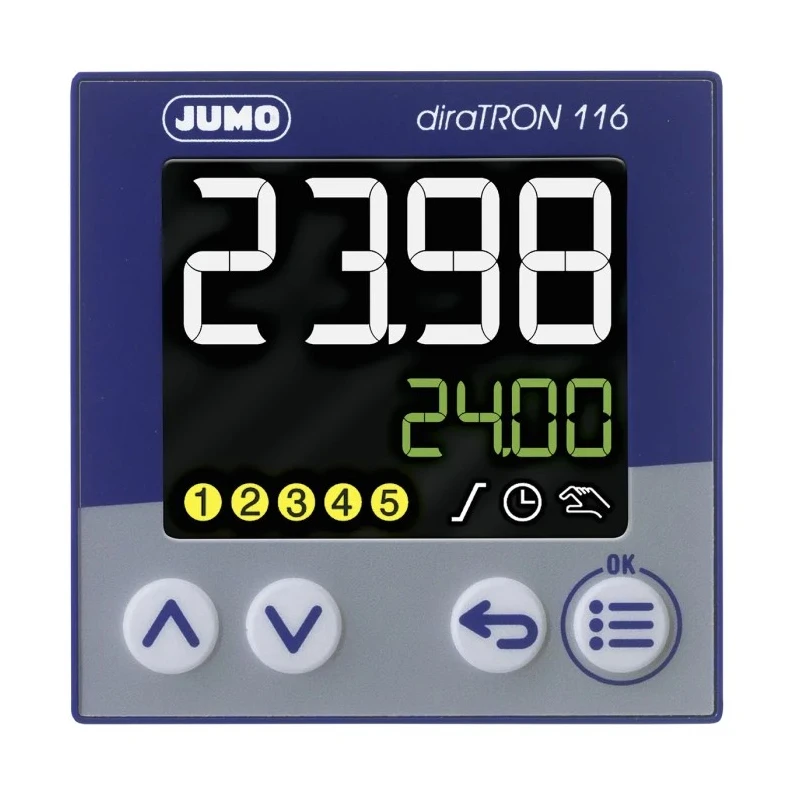

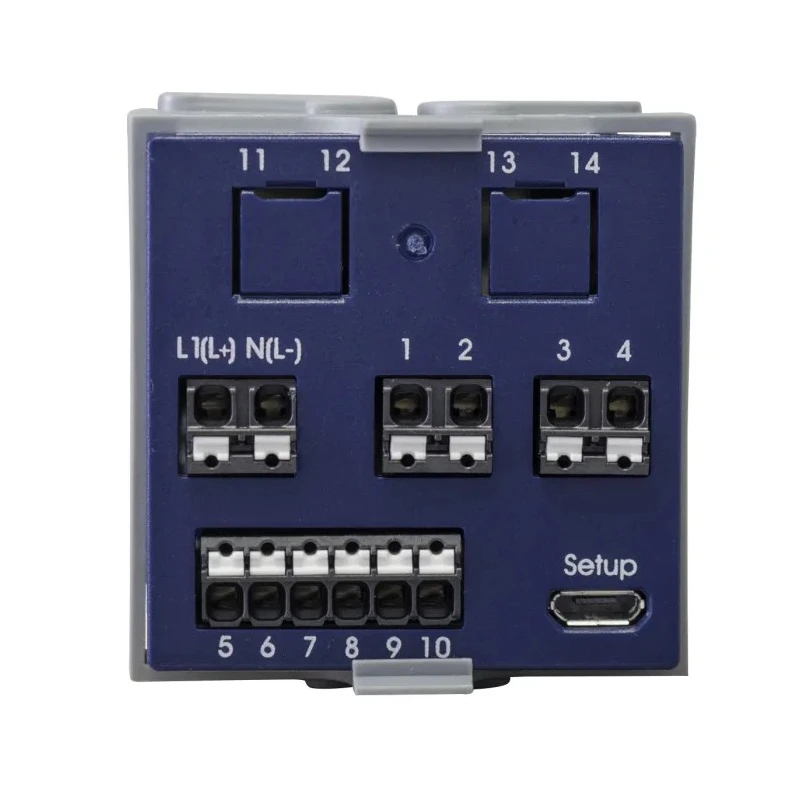

The device integrates diagnostics and a segment display for clear operator interface. It includes spring cage terminal connections ensuring reliable and fast wiring, complemented by PUSH IN technology. Individual operator levels and structured text programming expand flexibility and customization options for complex control scenarios.

The PID controller supports digital communications via RS485 port using Modbus RTU protocol functioning as a slave device, enabling integration within automation systems.

Constructed to withstand industrial environments, the controller has an operating temperature range from -10°C to 55°C, and an IP65 front panel rating with IP20 rear to ensure ingress protection.

Mounting is designed for panel installation with physical dimensions of 48 mm length and 78 mm panel depth, complying with international standards including EN 61010, UL 61010-1 (3rd Edition), DIN EN 61326-1, DIN EN 60721-3, c UL US, and CAN/CSA-22.2 No. 61010-1 (3rd Ed).

This product is made in Germany and is ideal for use in industrial manufacturing, process control systems, HVAC, water treatment, and laboratory automation requiring precise and reliable thermal management.

Features a PID controller with autotuning for precise process control. Equipped with spring cage terminals for durable and secure wiring connections. Supports digital communications through RS485 and Modbus RTU as Slave.

Provides diagnostic functions and a segment display. Designed for panel mount installation with IP65 and IP20 ratings ensuring protection. Can monitor up to 4 limit values and includes timer and ramp functions. Operates within a temperature range of -10°C to 55°C.

Construction supports fast wiring via PUSH IN technology and individual operator levels. Compliant with EN 61010, UL 61010-1 (3rd Ed), DIN EN 61326-1, and other industrial standards. Explore more reliable Temperature Controllers from Jumo in the EnvMart Industrial Automation category for precise control solutions.
