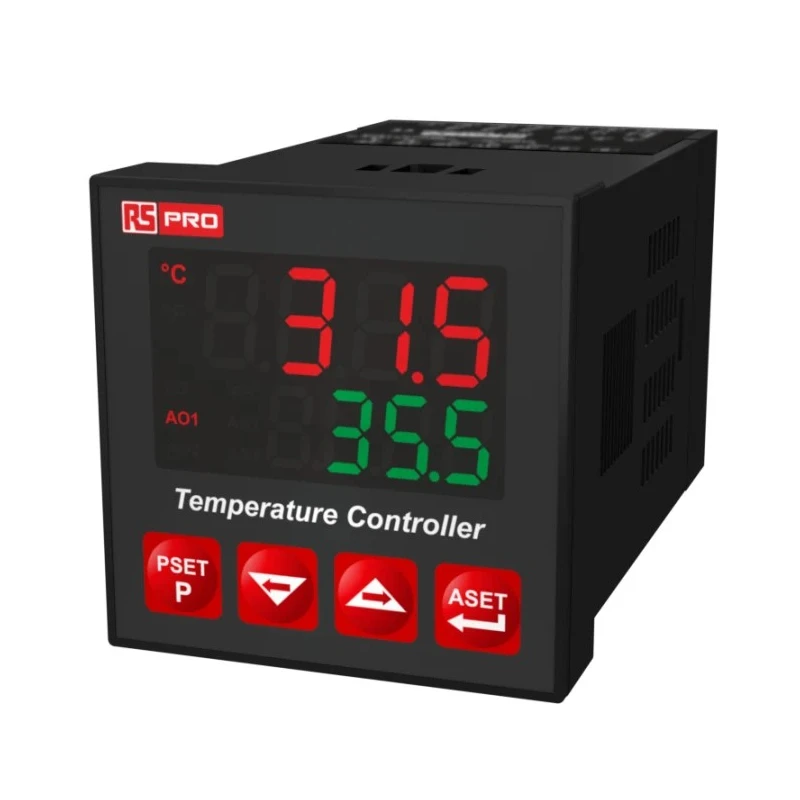

RS PRO Panel Mount PID Temperature Controller 2 Input, 3 Output SSR Relay 240V On-Off 222-8141

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Panel Mount PID Temperature Controller 2 Input, 3 Output SSR Relay 240V On-Off 222-8141

Name: RS PRO Panel Mount PID Temperature Controller 2 Input, 3 Output SSR Relay 240V On-Off 222-8141
Brand: RS PRO
SKU: 307925
Price: 20.22 USD
Availability: InStock



Category Temperature Controllers Brand RS PRO Condition New

Specifications

Country of Origin	Turkey
Accuracy	0.25% at Thermocouple, resistance thermometer
Display Type	LED
Brand	RS PRO
Dimensions	48 mm x 48 mm
Storage Temperature	-40°C to +85 °C
Length	48mm
Model	222-8141
IP Rating	IP65, IP20
Width	48mm
Mount Type	Panel Mount
Protection Class	NEMA 4X (IP65 at front, IP20 at rear)
Number of inputs	2
Output type	SSR, Relay
Series	RS PRO
Input Type	Thermocouple, RTD
Maximum Operating Temperature	50°C
Control Type	PID Controller, On-Off
Minimum Operating Temperature	0°C
Maximum Current	5A
Switching Current	5 A
Process inputs	Universal input TC, RTD
Number of outputs	3
Ambient Temperature	0°C to +50 °C
Standards/Approvals	CE
Maximum Supply Voltage	240V
Thermocouple input types	Selectable by parameters J, K, R, S, T (IEC584.1) (ITS90)
Thermo-resistance input type	PT 100 (IEC751) (ITS90)
Process Output	Relay (5A@250Vac. at resistive load) and SSR Driver Output: (Maximum 20mA@12Vdc)
24 V, RS stock no	222-8142
100 to 240 V, RS stock no	222-8141
115 V, RS stock no	222-8144
230 V, RS stock no	222-8145

Key Features

Equipped with universal TC and RTD inputs for diverse measurement needs.
Features configurable ON/OFF, P, PI, PD and PID control modes for accurate process control.
Self-tune operation allows automatic adaptation of PID coefficients to the system.
Construction rated to IP65 front and IP20 rear for enhanced environmental protection.
LED display with four digits for both process value and set value ensures clear monitoring.
Supports programmable heating or cooling output functions to suit various applications.
Alarm output capabilities enhance operational safety and monitoring.
Compact 48 mm x 48 mm panel mount form factor fits standard electrical panels.

Product Description

RS PRO 222-8141 Panel Mount PID Temperature Controller is a high-quality digital unit designed for precise temperature measurement and control in industrial and laboratory environments. Featuring universal process input for thermocouples (TC) and resistance temperature detectors (RTD), it offers flexibility for diverse sensing applications.

This controller supports multiple control methodologies including ON/OFF, Proportional (P), Proportional-Integral (PI), Proportional-Derivative (PD), and full PID control, enabling tailored responses to process demands. Its self-tuning step response function optimizes PID parameters automatically, improving regulation accuracy and system performance.

The unit provides 2 inputs and 3 outputs, including Solid State Relay (SSR) and mechanical relay, with a maximum switching current of 5A at 250 VAC resistive load. The dual input capability allows monitoring of multiple sensors simultaneously for complex control schemes.

Its compact 48 mm by 48 mm dimensions and panel mount design facilitate easy integration into control panels, while its NEMA 4X protection class ensures resistance to dust and water at the front face (IP65) and IP20 protection at the rear.

Applications include process automation, temperature regulation in HVAC systems, manufacturing process control, laboratory instrumentation, and water treatment plants. The LED display shows process value and set value in four-digit resolution for clear operator interface.

Equipped with universal TC and RTD inputs suitable for various sensors. Programmable heating or cooling output functions adapt to system requirements. Alarm functions provide enhanced safety and monitoring capabilities. Accurate temperature measurement with 0.25% precision at key sensor inputs.

Compact and robust design suitable for industrial environments.

This RS PRO temperature controller embodies reliability and precision sought in demanding industrial automation and process control applications. EnvMart customers can rely on its advanced features for stable temperature maintenance and easy setup.
