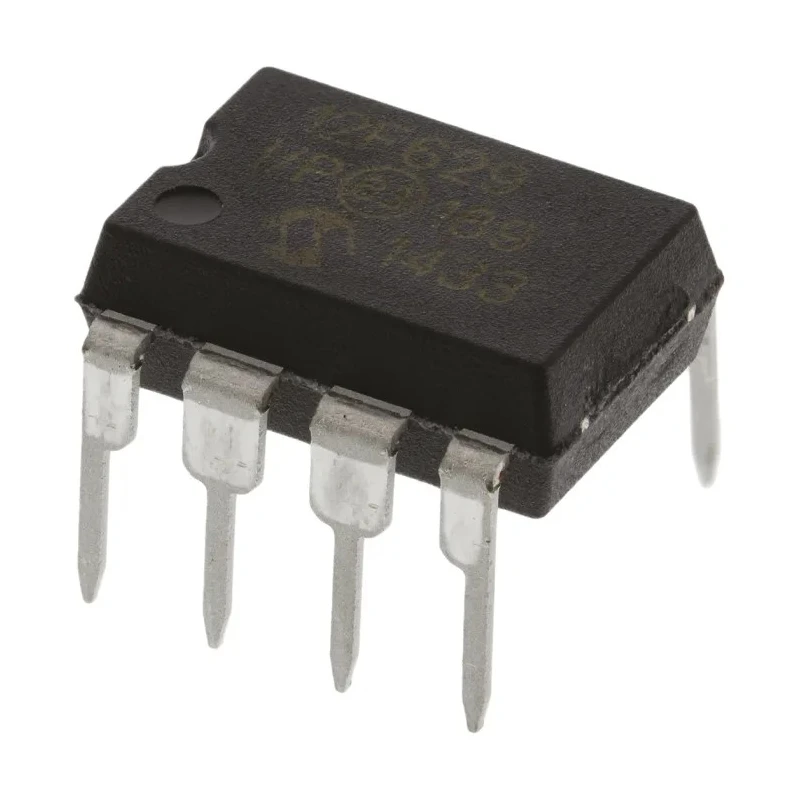

Microchip 8 bit PIC Microcontroller PIC12F629-I/P, 20 MHz, 128B Flash, 8-Pin PDIP PIC12F629-I/P

Microchip PIC12F629-I/P is a high-performance 8-bit PIC microcontroller designed for a broad spectrum of industrial, automotive, and embedded applications. Powered by Microchip's proven mid-range PIC architecture, this device features a compact 8-pin PDIP package, operating at a maximum clock frequency of 20 MHz and providing 128 bytes of flash program memory and 64 bytes of RAM.

The microcontroller features a flexible internal RC oscillator with ±1% accuracy, suitable for timing critical applications without requiring an external clock. It offers 18 programmable input/output pins enabling diverse control and interfacing options, complemented by 2 timers - one 8-bit and one 16-bit - to handle various timing and counting tasks.

The integrated 4-channel 10-bit analogue-to-digital converters (ADCs) and one analogue comparator facilitate efficient sensor data acquisition and processing. This microcontroller supports RS232 communication interface, widely used in serial communication systems.

Operating from a supply voltage range of 2V to 5.5V and dissipating a maximum power of 800mW, the PIC12F629-I/P is suitable for power-sensitive applications. It complies with RoHS directives and meets automotive quality standard ISO/TS 16949, ensuring reliability and environmental safety.

Its compact physical dimensions - 10.16mm length, 7.11mm width, and 4.95mm height - make it ideal for space-constrained designs. The device is rated for operating temperatures from -40°C to 85°C, ensuring stable performance in harsh conditions.

This microcontroller is an excellent choice for industrial automation, automotive electronics, consumer electronics, and embedded system development requiring compact size, low power consumption, and robust feature set.

Built on Microchip's mid-range PIC core with 35 instructions and an 8-level hardware stack. 128 bytes flash memory with 64 bytes RAM and 128 bytes EEPROM. Internal RC oscillator with ±1% frequency accuracy operating up to 20 MHz.

18 programmable I/O pins and 2 timers (8-bit and 16-bit). 4-channel 10-bit ADCs and 1 analogue comparator. Supports RS232 interface communication. RoHS compliant and meets ISO/TS 16949 automotive standards. Dimensions: 10.16 x 7.11 x 4.95 mm (L x W x H).

Operating temperature: -40°C to 85°C. Explore more Microchip Microcontrollers and embedded components to power your projects with reliability and performance at EnvMart.
