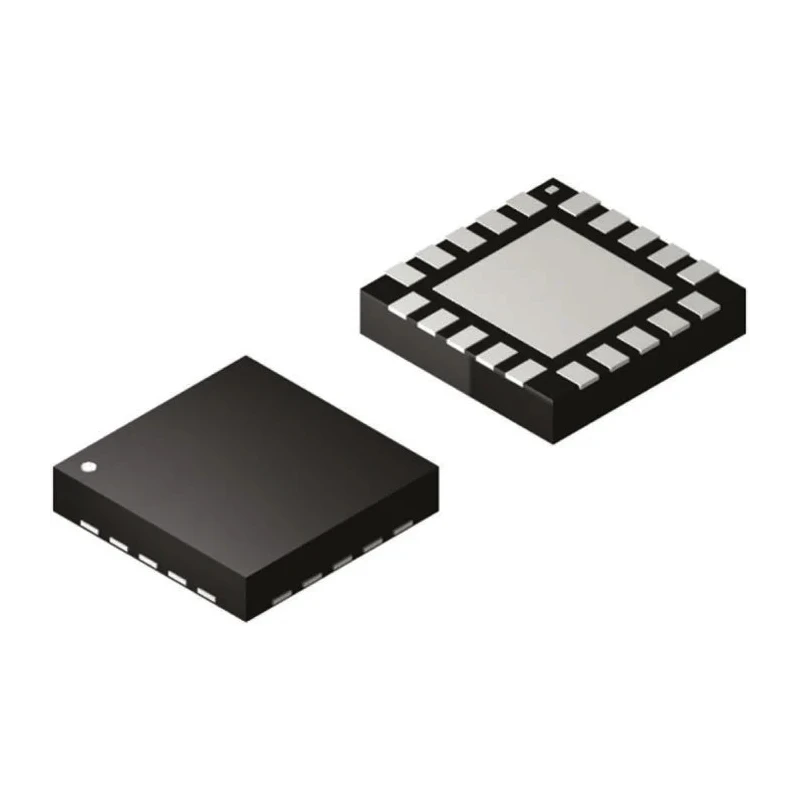

Silicon Labs 8 bit 8051 Microcontroller 25 MHz 8kB FLASH 20-Pin QFN C8051F330-GM

Silicon Labs C8051F330-GM is an 8 bit 8051 microcontroller designed for precision control applications requiring compact size and reliable performance. It operates at a maximum clock frequency of 25 MHz and integrates 8kB of flash memory with 768 bits of RAM, ensuring efficient program execution and data storage.

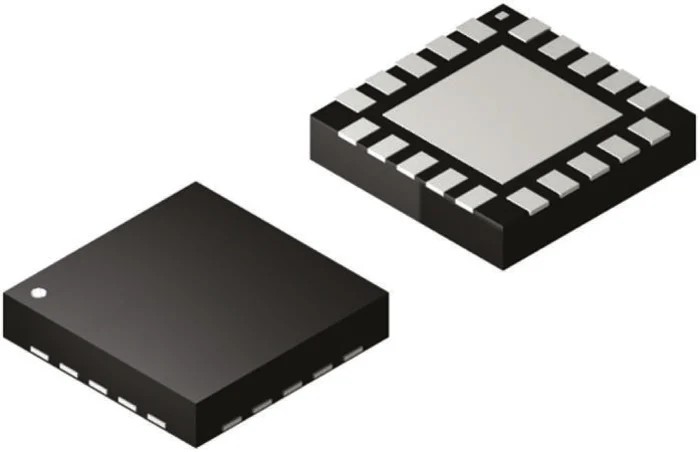

Featuring a 20-Pin QFN surface mount package measuring 4 mm by 4 mm with a height of 880 μm, it suits compact embedded system designs in industrial and laboratory environments. The microcontroller supports 17 programmable I/O pins along with UART, SPI, and I2C interfaces, facilitating communication with external peripherals and sensors.

Equipped with 16 channels of 10-bit ADC and a single 10-bit DAC, this device provides precise analog data conversion capabilities. Additional features include an on-chip Power-On Reset, VDD monitor, watchdog timer, and clock oscillator, making the microcontroller a robust system-on-chip solution suitable for demanding applications.

The device operates reliably across a wide industrial temperature range from -40°C to +85°C, and supports supply voltages between 2.7 V and 3.6 V. Its program memory type is flash, allowing in-circuit reprogramming and firmware updates.

Operates on 2.7 V to 3.6 V supply voltage. 25 MHz maximum clock frequency with 8051 core architecture. 8kB flash memory and 768 bits of RAM for program execution and data storage. Supports 17 programmable I/Os and standard communication interfaces.

16 x 10-bit ADC channels and 1 x 10-bit DAC for analog signals. Industrial temperature rating of -40°C to +85°C. Small 20-Pin QFN package measuring 4 mm x 4 mm x 880 μm. Includes system features like watchdog timer and power-on reset.

This microcontroller is ideal for industrial control, embedded systems, and electronic applications requiring compact size and versatile functionality. Browse more Silicon Labs Microcontrollers on EnvMart for advanced design options.
