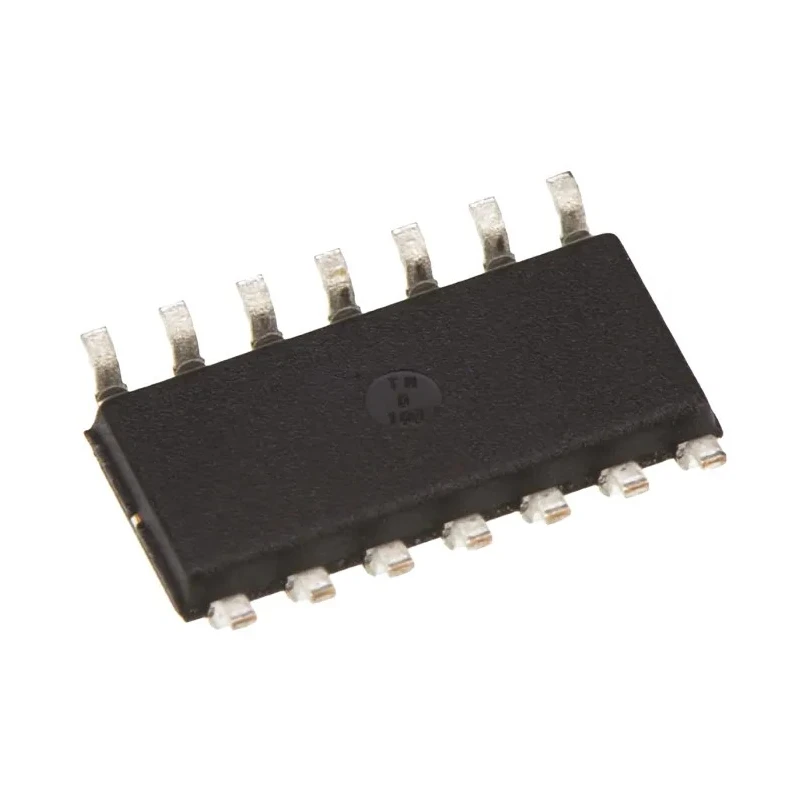

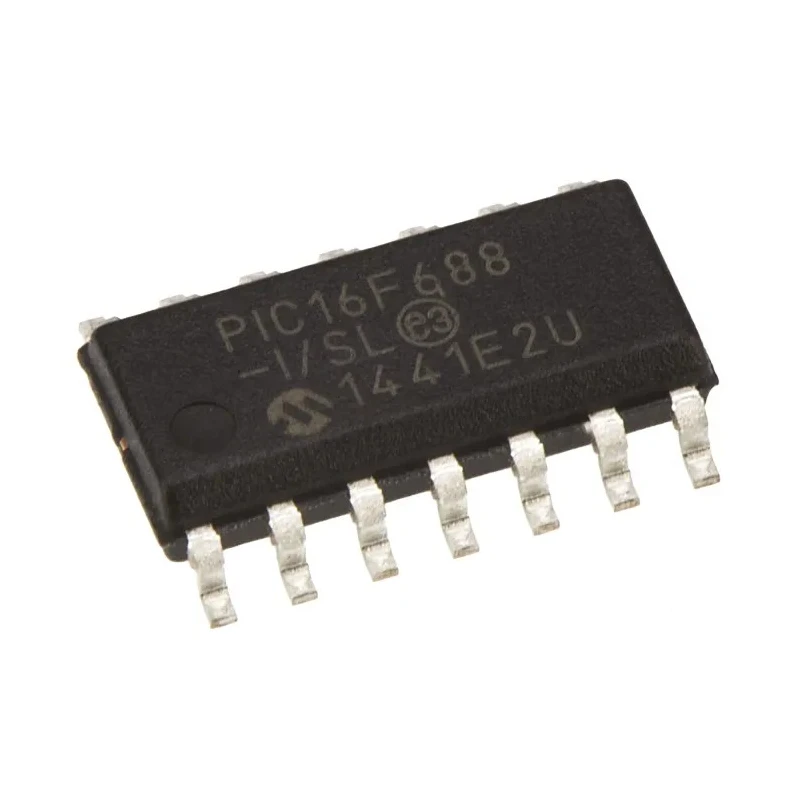

Microchip PIC16F688-I/SL 8 Bit PIC Microcontroller, 20 MHz, 256B FLASH, 14-Pin SOIC PIC16F688-I/SL

Microchip PIC16F688-I/SL 8 bit PIC Microcontroller is designed with Microchip's Mid-range PIC core, operating up to 20 MHz clock speed and featuring 256B program memory with FLASH architecture. This 14-Pin SOIC surface mount device offers robust performance with 18 programmable I/Os, equipped to handle diverse embedded control tasks in industrial, laboratory, and electronics applications.

The microcontroller supports a voltage supply from 1.8V to 5.5V with power dissipation up to 800mW, ensuring energy-efficient operation. It includes a versatile set of peripherals such as an 8-channel 10-bit analogue-to-digital converter (ADC), two analogue comparators, and a 5-bit digital-to-analogue converter (DAC), enabling precise sensor interfacing and signal processing.

Additional features include an enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) for reliable serial communication, along with two timers (8-bit and 16-bit) for advanced timing applications. The device incorporates essential system safeguards like Power-On Reset (POR), Power-Up Timer (PWRT), Oscillator Start-Up Timer (OST), Brown-Out Reset (BOR), and Watchdog Timer (WDT), supporting reliable and stable embedded system development.

Compact and RoHS compliant, the PIC16F688-I/SL measures 8.65 mm in length, 3.9 mm in width, and 1.5 mm in height, suitable for space-constrained designs. It operates effectively in wide temperature ranges from -40°C to 85°C, making it apt for automotive, commercial, and industrial automation systems.

Utilizes Microchip PIC architecture with 8-bit data bus width. Operates within 1.8V to 5.5V supply voltage. Equipped with 18 programmable I/Os for flexible interfacing. Includes advanced ADC and DAC peripherals for precise data handling.

Supports enhanced EUSART communication interface. Incorporates dual timers for enhanced control and timing. Complies with RoHS environmental standards. Compact 14-Pin SOIC surface mount package. Industrial temperature range from -40°C to 85°C.

Ideal for use in embedded systems development, industrial controls, HVAC systems, and electronic instrumentation. Explore more Microchip Microcontrollers and related components on EnvMart for your engineering projects.
