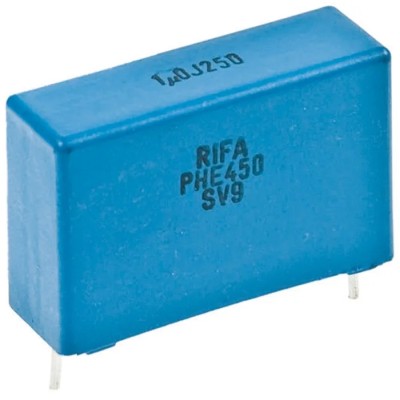

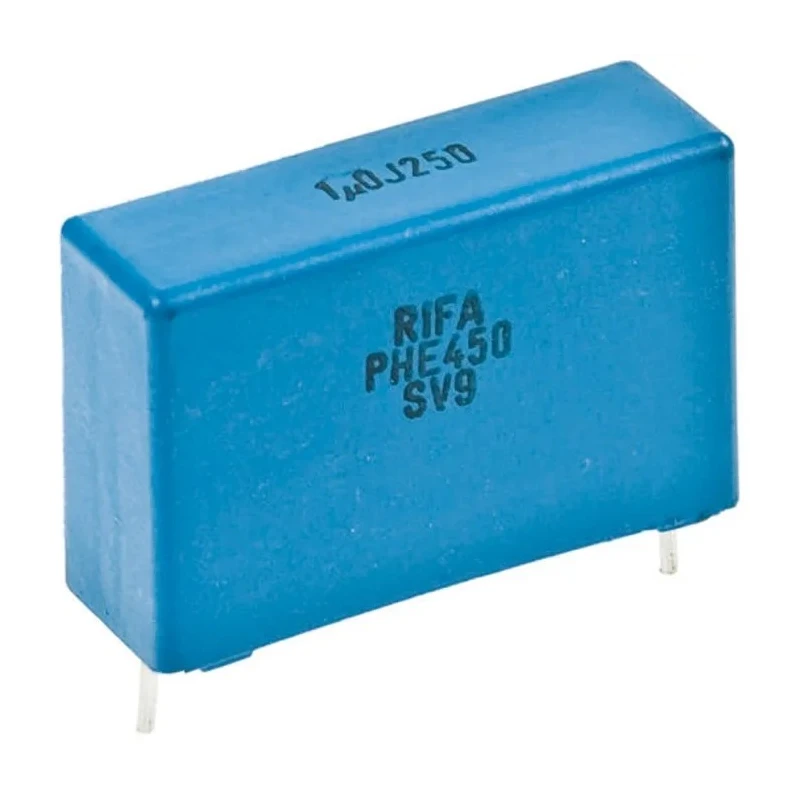

KEMET PHE450 Film Capacitor, 47 nF, ±5% Tolerance, 630 V dc, 180 V ac, Through Hole Mount

KEMET PHE450 Film Capacitor PHE450MB5470JR06 is a metallized polypropylene film capacitor designed for high current stress environments such as switch mode power supplies protection and television deflection circuits. This capacitor offers a capacitance of 47 nF with a tolerance of ±5% and has rated voltages of 630 V DC and 180 V AC.

The capacitor is through-hole mounted with radial terminals and encapsulated in a self-extinguishing resin conforming to UL 94 V-0 standards, providing both electrical reliability and safety. Its lead pitch is 15 mm with lead length of 6 mm and a lead diameter of 0.8 mm, enabling secure PCB mounting.

Operating temperature ranges from -55°C to 105°C, supporting demanding industrial and commercial electronics applications. The compact physical size of 18 mm length, 6.5 mm width, and 12.5 mm height ensures integration flexibility in space-constrained designs. It exhibits a very low dissipation factor of 0.0003%, contributing to efficient power handling.

This product conforms to RoHS directives, reflecting environmentally friendly manufacturing practices. The PHE450 series capacitors, manufactured in Finland, are known for their high pulse capability and reliability in power electronics.

Precision capacitance with ±5% tolerance provides accuracy critical for circuit stability. High voltage ratings support robust electrical performance under stress. Self-extinguishing resin encapsulation enhances operational safety.

Suitable for pulse and snubber circuit applications. Compact through-hole format ensures ease of assembly in PCB designs. Wide temperature range accommodates harsh industrial environments. Radial lead terminals with standard pitch for compatibility.

RoHS compliant, meeting modern environmental regulations.

This capacitor is ideal for industrial, electronic component manufacturing, power supply design, and commercial electronic equipment. Browse more Film Capacitors in the Electronics & Electricals category at EnvMart for your specific application needs.
