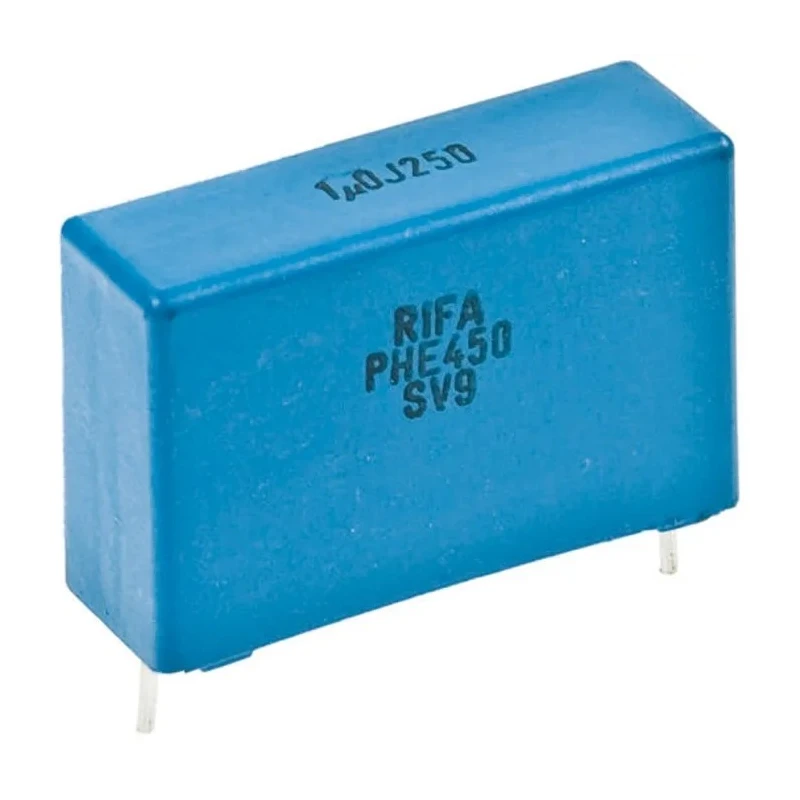

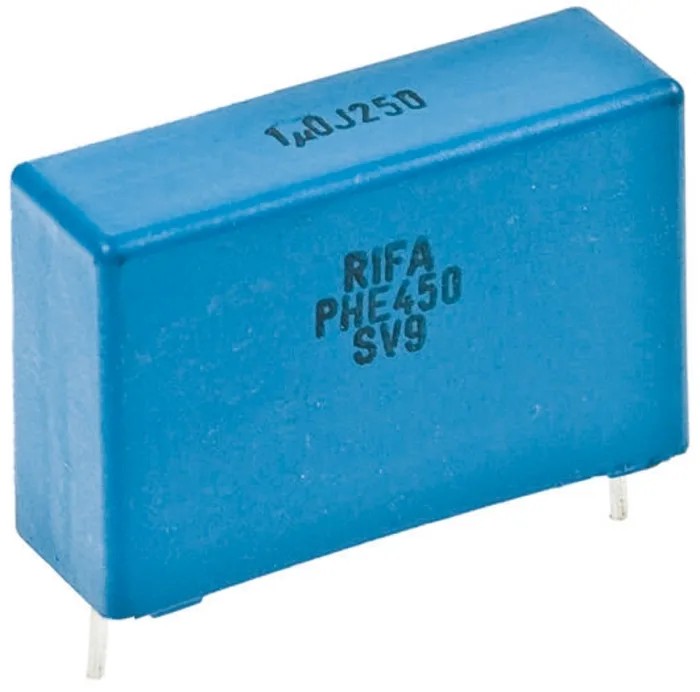

KEMET PHE450 Film Capacitor, ±5% Tolerance, 10 nF Capacitance, 630 V DC, 180 V AC, Through Hole Mount PHE450

KEMET PHE450 Film Capacitor, model PHE450, is a high-performance metallized polypropylene film capacitor designed for electronic component applications requiring reliability and precision. With a capacitance of 10 nF and a tolerance of ±5%, it supports rated DC voltage of 630 V and AC voltage of 180 V, making it highly suitable for pulse, snubber, and protection circuits.

This capacitor features a through hole mount with radial leads and a 15 mm pitch, providing mechanical stability and ease of PCB integration. The lead length of 6 mm and diameter of 0.8 mm offer robust electrical connections. Encapsulated in a self-extinguishing resin housing complying with UL 94 V-0 standards, it ensures enhanced safety and durability under various operating conditions.

Operating temperature ranges from -55°C to 105°C highlight its suitability for industrial, electronic, and power supply applications, including high stress circuits like switch mode power supplies and television deflection circuits. The low dissipation factor of 0.0003% contributes to high efficiency and minimal power loss.

The PHE450 series capacitors are RoHS compliant, endorsing environmental responsibility. Supplied in tape and reel packaging, these capacitors are optimized for automated insertion equipment, facilitating volume production processes.

Technical specifications include a height of 10.5 mm, length of 18 mm, width of 5.5 mm, and lead pitch options from 7.5 mm to 37.5 mm. The product is well-suited for industrial, laboratory, and electronic manufacturing environments, enhancing circuit protection and stability.

Double metallised polypropylene film pulse capacitor for reliable performance. Rated voltage range from 250 V DC to 3000 V DC and 180 V AC to 1000 V AC. Encapsulated in self-extinguishing material meeting UL94V-0 requirements.

Applications include switch mode power supplies and deflection circuit protection. Compliant with RoHS directive, ensuring limited environmental impact.
