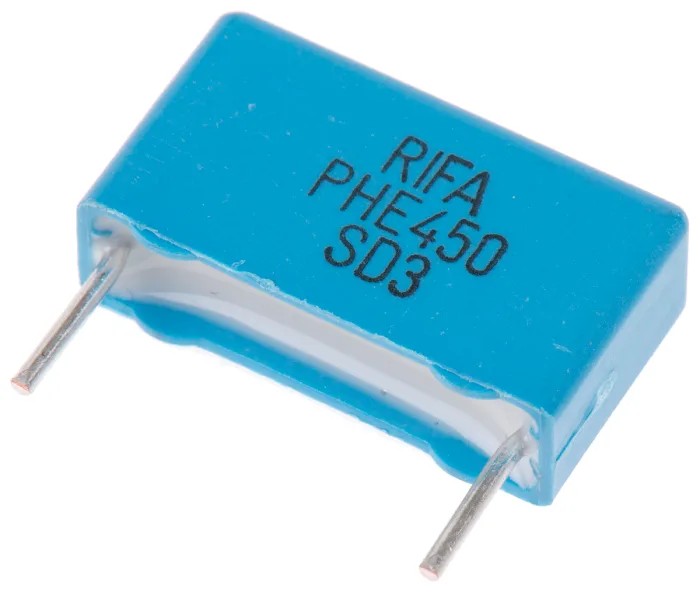

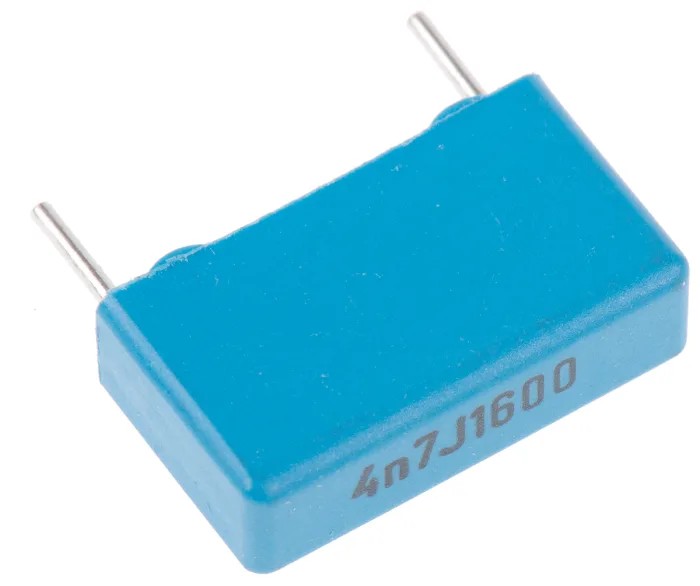

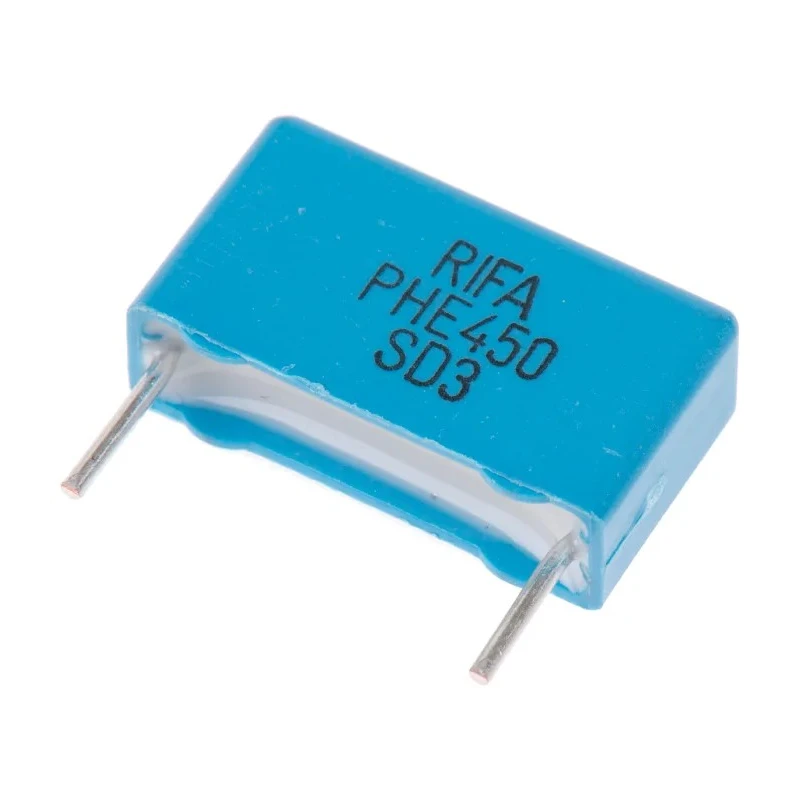

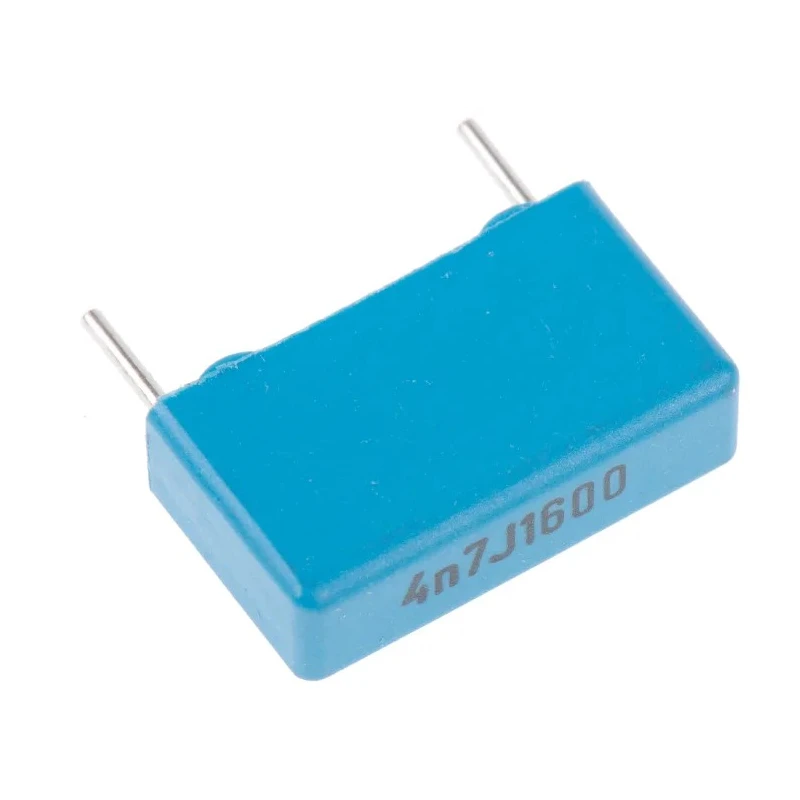

KEMET PHE450 Film Capacitor 4.7 nF ±5% 1.6 kV DC 180 V AC Through Hole Radial Lead

KEMET PHE450 Film Capacitor model PHE450RB4470JR06 offers a capacitance of 4.7 nF with a tolerance of ±5%, rated at 1.6 kV DC and 180 V AC. This through hole component features radial leads with a pitch of 15 mm and 6 mm lead length, encapsulated in a self-extinguishing resin meeting UL94 V-0 requirements, making it suitable for numerous industrial and electronic applications.

Constructed as a double metallized polypropylene film pulse capacitor, it provides excellent pulse load capability and high reliability in demanding scenarios such as protection circuits in switch mode power supplies and deflection circuits in televisions.

The capacitor functions within a broad temperature range from -55°C minimum to 105°C maximum, ensuring performance stability across various environments. Its small size with dimensions 18 mm length, 10.5 mm height, and 5.5 mm width supports compact PCB layouts.

The component has a dissipation factor of 0.0003% and a lead diameter of 0.8 mm. Rated voltages range from 250 V DC to 3000 V DC across the PHE450 series, with this specific model rated at 1.6 kV DC. Packaging is by tape and reel, suitable for automated assembly processes.

Capacitance of 4.7 nF ±5% tolerance for precision circuits. Through hole mounting with radial leads for secure PCB connections. Encapsulated in UL94 V-0 compliant self-extinguishing material for safety. Wide operating temperature range ensures reliability in industrial, manufacturing, and electronic sectors.

Applicable for pulse, snubber, and protection circuit roles. RoHS compliant, aligning with environmental protection standards. Dimensions and pin pitch allow versatile design integration.

This capacitor is ideal for use in laboratory equipment, industrial electronics, power supply filtering, and switching regulators. Its robust construction ensures long life and minimal maintenance requirements. Customers looking for a high-quality film capacitor with consistent electrical performance will find the KEMET PHE450 an excellent choice.
